Yuav ua li cas xaiv Steel Floor Decking? Master Cov Hom Tseem Ceeb no

Steel pem teb decking yog cov tseem ceeb ntawm cov hauv pem teb system nyob rau hauvsteel-structure tsev. Raws li hom profiled steel ntawv rau kev tsim kho, nws muab cov formwork-dawb thiab propping-free tov rau pob zeb hauv pem teb slabs. Nws yog dov-tsim los ntawm txias dabtsi yog khoov nrog V-shaped, U-puab los yog trapezoidal corrugated cross-sections. Nws tus lej qauv yog tsim raws li: prefix ("YX" lossis "YXB") + yoj qhov siab-yoj suab-xws li dav. Muaj ob lub hauv paus ntsiab lus: cov pa profiled steel pem teb decking (open-type, re-entrant-type, kaw-type) thiab steel bar truss floor decking.

Pa profiled-steel pem teb decking yog ua los ntawm galvanized steel los xij. Nws yog nteg ncaj qha rau ntawm steel beams thiab nrees welded rau steel beams los ntawm studs nkag los ntawm cov hlau los xij. Nws tuaj yeem dais tus kheej qhov hnyav ntawm cov pob zeb ntub dej thiab kev tsim kho. Raws li cov ntaub ntawv hla ntu, nws tuaj yeem muab faib ua hom qhib pem teb decking, rov nkag (dovetail-type) pem teb decking thiab kaw-hom pem teb decking.

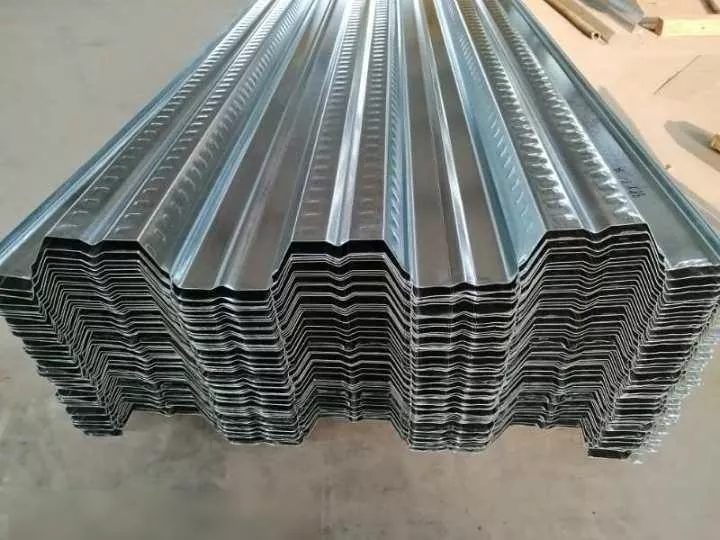

Qhib Hom Pem Teb Decking

Nws nta V-shaped lossis trapezoidal qhib hla ntu. Nws tsuas yog ua haujlwm ruaj khov thaum lub sijhawm tsim kho, nrog rau qhov zoo ntawm kev teeb tsa yooj yim, tus nqi qis thiab kev lag luam siab.

Re-entrant (Dovetail-Type) Floor Decking

Nws txais yuav ib qho dovetail-shaped cross-section. Nws qhov qhib hauv qab yog qhov nqaim dua li qhov qhib hom decking, uas ua rau cov neeg kho tshuab cuam tshuam nrog pob zeb. Nws cov txiaj ntsig tseem ceeb yog nyob rau hauv kev txhim kho hluav taws thiab kev ua haujlwm tiv thaiv corrosion.

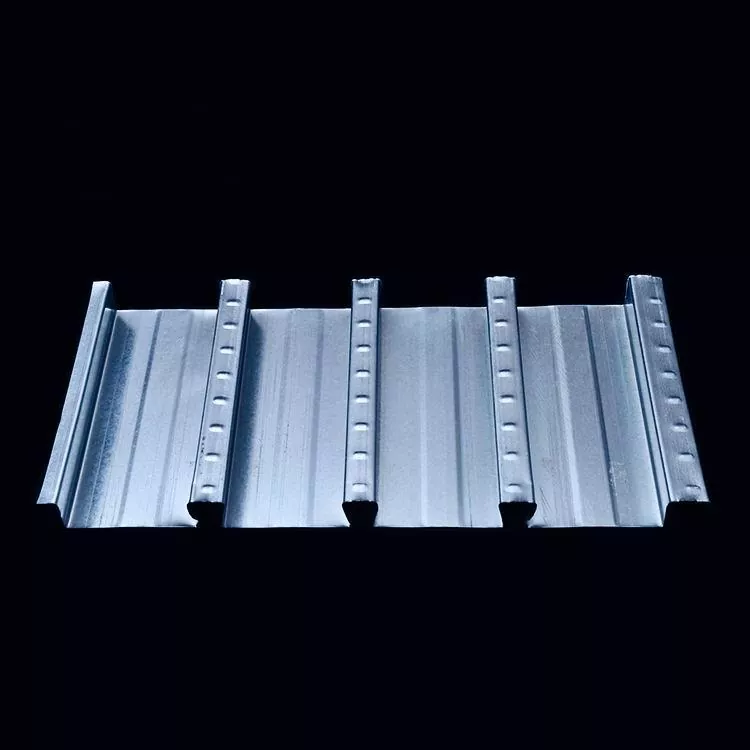

Kaw-hom Floor Decking

Nws yog hom siv dav tshaj plaws nrog kev ua haujlwm zoo tshaj plaws tam sim no. Nws hla ntu yog kaw tag nrho kom nws tuaj yeem ua tiav los ntawm kev ua vaj tse. Nws nta cov txiaj ntsig tseem ceeb ntawm qhov zoo nkauj thiab zoo nkauj thiab ua haujlwm zoo sib xws.

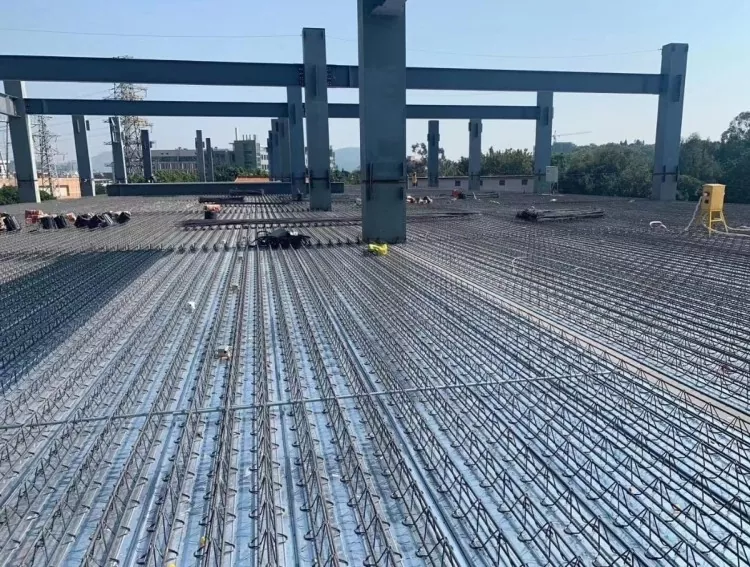

Steel-Bar Truss Floor Decking

Steel-bar trusses yog prefabricated nyob rau hauv-Factory thiab integrally welded nrog galvanized profiled steel los xij. Nws qhov tseem ceeb sib txawv ntawm cov pa profiled-steel pem teb decking yog nyob rau hauv load-bearing faib. Tus qub ua rau nws ob lub ntsiab lus ua haujlwm sib luag, thaum lub sijhawm kawg paub txog lub hom phiaj ntawm ib qho khoom siv. Steel-bar truss pem teb decking boasts meej functional faib, ntau txhim khu kev qha kev ua tau zoo, thiab yooj yim tswj kom zoo. Los ntawm qhov sib txawv, cov pa profiled-steel floor decking imposes siab dua cov kev xav tau ntawm kev sib txuas ntawm txhua yam.

Kev xaiv hauv pem teb decking tseem ceeb yuav tsum tau txiav txim siab ntawm kev ncua, kev thauj khoom, kev tsim kho, thiab tag nrho cov nqi. Ntawm ntau hom, qhib hom decking muaj tus nqi qis tshaj; re-entrant decking muab superior hluav taws thiab corrosion kuj; kaw hom decking muab qhov kev ua tau zoo tshaj plaws; thiab steel-bar truss decking nta kev tsim kho siab thiab kev tswj kom zoo.
