Loj Span Steel Qhov Chaw Ncej Chaw Ua Si

Loj Span Steel Qhov Chaw Ncej Chaw Ua Si yog cov qauv hlau ua kis las uas muaj qhov "loj ncua" thiab "qhov chaw". Cov khoom tsim los ntawm EIHE Steel Structure (EHSS) yog siv dav hauv cov tsev pej xeem xws li chaw ntau pob loj, gymnasiums thiab rooj sib tham & chaw ua yeeb yam. Raws li cov khoom lag luam zoo, peb txhawb nqa peb txoj kev cog lus rau kev ua tau zoo hauv peb cov khoom siv steel hlau thiab siv zog ua kom muaj txiaj ntsig zoo rau kev lag luam rau koj.

Xa lus nug

Product Description

Qhov Loj Span Steel Qhov Chaw Ncej Chaw Ua Si tau txais qhov chaw thav duab raws li nws lub ru tsev load-bearing qauv, ua kom muaj qhov chaw loj ntxiv.

Cov vaj tsev tsim los ntawm EHSS lub Hoobkas tau nruab nrog ob txheej txheej vov tsev, thermal thiab suab rwb thaiv tsev, hluav taws xob tiv thaiv thiab tiv thaiv corrosion, nrog rau cov kua dej ntse, uas muaj qhov yooj yim thiab elegant tsos nrog lub dav sab hauv.

Peb cov khoom khav theeb ntxiv-loj ncua, tsis sib xws kev ntxhov siab faib, siab zuag qhia tag nrho lub zog thiab kev siv ceev ceev, ua rau lawv muaj kev sib tw hauv kev ua lag luam.

Dimension	Core Advantage
Span Peev	30-200 m
Kev siv hlau	25-65 kg/m²
Nqi Efficiency	380-1,800 RMB / m²
Prefabrication Rate	90% +
Joint Precision	Kev kam rau siab ≤ ± 0.5mm
Kev Tswj Xyuas Zoo	Chav Kawm 1 Welds

Txawm hais tias koj npaj siab yuav tsim kom muaj tus txheej txheem thoob ntiaj teb Loj Span Steel Chaw Ncej Chaw Ua Si hauv tsev lossis txawv teb chaws, peb tuaj yeem xa tuaj rau koj. EHSS tau txais ntawv pov thawj hauv cov qauv thoob ntiaj teb cov qauv ntawm Tebchaws Europe thiab Tebchaws Meskas.

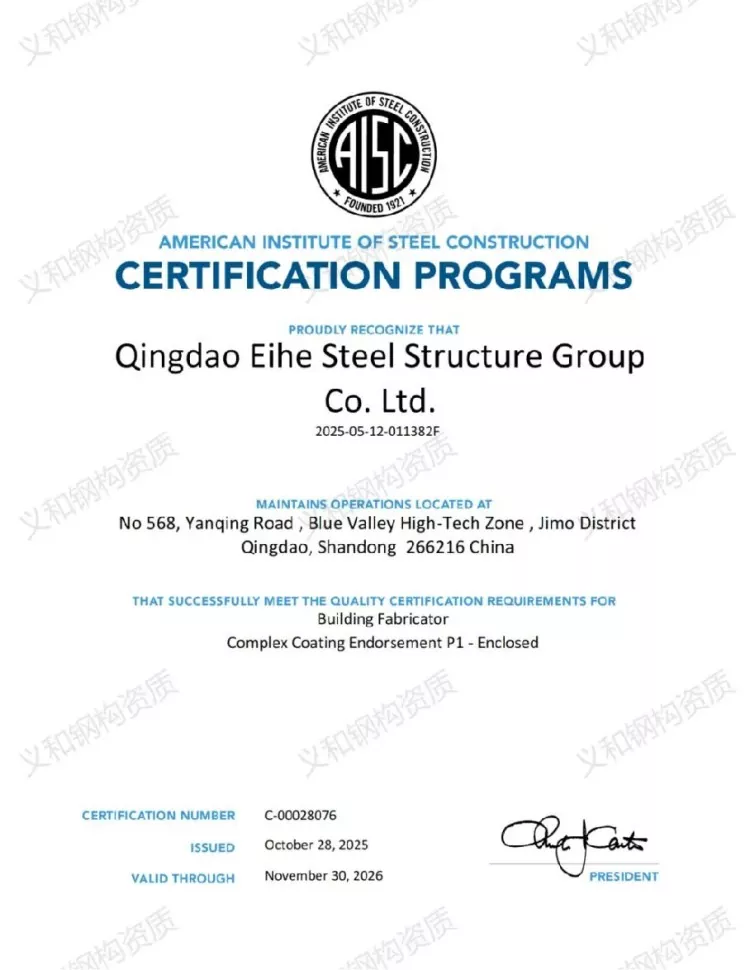

● American Standard

American Standard

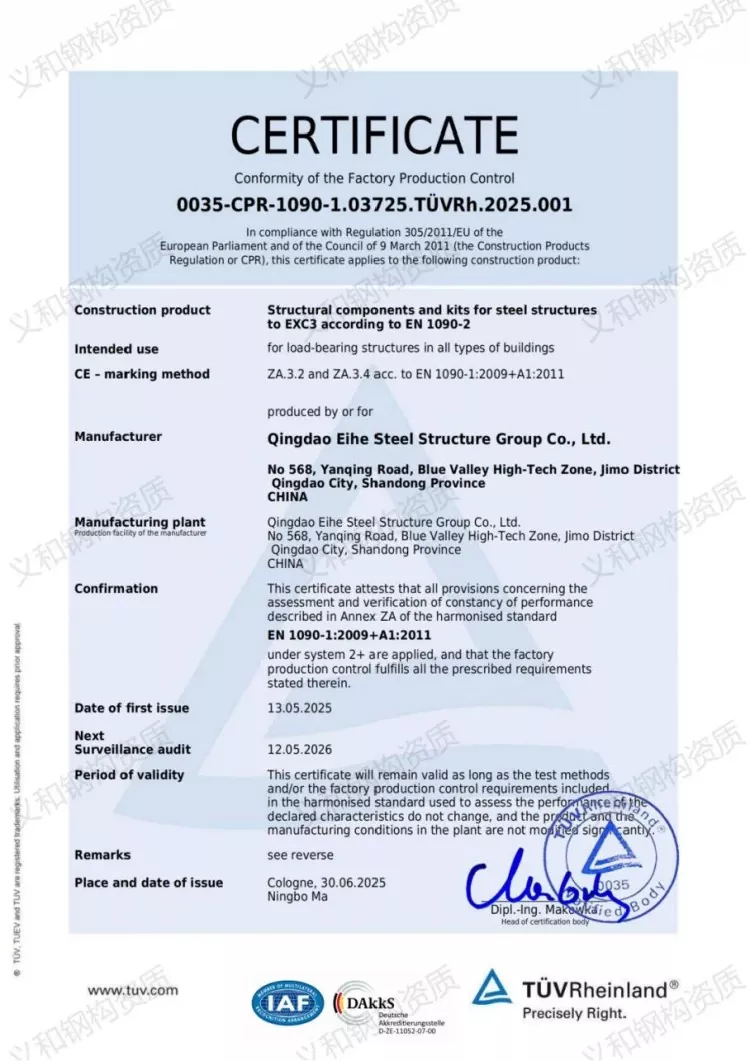

● European Standard

European Standard

Technical Specifications

Qhov Loj Loj Span Steel Qhov Chaw Ncej Chaw Ua Si nthuav tawm cov kev cov nyom vim nws qhov ntev-ntev tsim, yuav tsum muaj kev ua haujlwm siab dua.

Yam khoom Parameter	Technical Index
Span Range	30-200 m
Daim phiaj Loj	2.5-4.0 m
Qhov siab-span ratio	1/8–1/15
Tswvcuab Specification	Circular steel tube
Hom sib koom	Bolted pob / Welded pob
Qib Steel	Q235B / Q355B
Deflection Control	≤ L / 250
Ru tsev Load	0.3-0.6 kN/m²
Seismic Resistance	Qib 8
Cua Resistance	Qib 12
Hluav taws kub tsis kam	Chav II
Anti-corrosion kho	Kub-dip galvanizing / Peb txheej txheej
Tsim Kev Pabcuam Lub Neej	50 xyoo

Raws li cov khoom lag luam muaj peev xwm ua tiav lub ntiaj teb qhov loj tshaj plaws nyob rau hauv cov chaw ntau pob loj, Loj Span Steel Chaw Ncej Chaw Ua Si yog ib pawg neeg nyiam heev ntawm cov tsev loj loj uas tsim los ntawm EHSS.

Los ntawm kev ua haujlwm zoo tshaj plaws thiab kev tsim qauv zoo, peb cov khoom txuag tau zoo heev steel cov ntaub ntawv, muab koj cov nqi tsim kho ntau dua.

▷ Tus nqi siv

Hom	Kev siv hlau	Nqe (nrog rau kev teeb tsa)
Pas chaw ncej	35-55 kg/m²	450-950 RMB / m²
Tshwj xeeb-zoo li tus & complex qhov chaw ncej	50-80 kg/m²	700-1,600 RMB/m²
Kev dav	45-65 kg/m²	7,000-9,000 RMB / T
