Rhiav Suab nrov? Yuav ua li cas thiaj ua tau lub suab rwb thaiv tsev thiab txo suab nrov?

Cov teeb meem suab nrov ntawm cov tsev lag luam feem ntau yog tackled los ntawm peb theem: lub suab nrov, kev sib kis thiab qhov kawg tau txais. Cov hlau nta zoo suab conductivity, yog li nws yuav tsum tau sib phim nrog cov txheej txheem kaw kom zoo los txo cov suab nrov kis tau tus mob ntawm cov khoom siv.

Suab nrov hauvsteel qauv rhiavFeem ntau yog los ntawm cov khoom siv ntau lawm, cov qauv tsim-yug kev vibration suab nrov thiab reverberation suab nrov. Kev tswj hwm qhov chaw muaj xws li xaiv cov khoom siv suab nrov, txhim kho lub suab rwb thaiv tsev thaiv (sab nrauv galvanized steel ntawv + nruab nrab damping kua nplaum + sab hauv nano suab-absorbing paj rwb) thiab nqa tawm kev co damping kho. Txhawm rau thaiv txoj hauv kev sib kis, cov txheej txheem phab ntsa tsim nyog yuav tsum tau txais kev pom zoo los tshem tawm kev rov qab los ntawm lub ru tsev thiab qab nthab thiab txwv cov qauv resonance. Erecting suab barriers thiab kev sib cais laj kab yog qhov kev tiv thaiv zaum kawg rau qhov kawg tau txais. Kev txiav txim siab zoo ntawm peb qhov loj me thiab kev siv cov kev daws teeb meem zoo tuaj yeem ua tiav cov txiaj ntsig zoo thiab txo cov suab nrov nrov.

Lub kaw lus kaw ntawm steel qauv rhiav yog lub hauv paus tseem ceeb rau lub suab rwb thaiv tsev thiab txo suab nrov. Kev ntsuas kev ntsuas tuaj yeem ua tiav hauv plaub ntu: phab ntsa panels, ru tsev panels, partitions, qhov rooj & qhov rais thiab txhua qhov khoob. Composite suab rwb thaiv tsev qauv tsim los ntawm ntau txheej thiab ntau yam khoom sib xyaw ua ke tuaj yeem ua rau tsis muaj suab nrov nkag mus.

Phab ntsa System

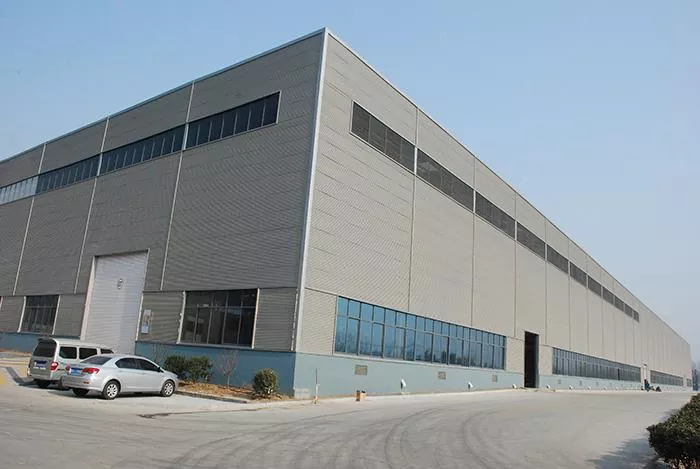

Lub phab ntsa system occupies qhov loj tshaj plaws cheeb tsam ntawm tag nrho cov enclosure. Kev ua tau zoo ntawm cov suab rwb thaiv tsev feem ntau yog siv cov qauv sib xyaw ua los ntawm cov phab ntsa vaj huam sib luag: 0.6mm aluminium-zinc coated steel ntawv + 2mm damping suab rwb thaiv tsev xav tau + 100mm high-density centrifugal iav ntaub plaub, ua tiav lub suab rwb thaiv tsev kev ua tau zoo tshaj 45 decibels.

Ob txheej txheej phab ntsa vaj huam sib luag yog siv dav hauv cov haujlwm ua haujlwm, suav nrog sab nrauv precast qhob sawb panels, nruab nrab cua txheej ntim nrog cov khoom siv suab nrov, thiab sab hauv lub teeb steel keel gypsum boards, uas muab 35 mus rau 45 decibels ntawm lub suab rwb thaiv tsev.

Kev sib cais kev sib cais trench nrog ntxiv damping khaubncaws sab nraud povtseg tuaj yeem txo cov suab sib kis tau zoo los ntawm lub hauv paus kev cob qhia.

Ru Tsev Sound Insulation System

Lub ru tsev system feem ntau hais txog huab cua nrov nrov los ntawm sab nraud thiab sab hauv reverberation, nrog ob txoj kev daws teeb meem: cov qauv ru tsev sib xyaw thiab tshem tawm qhov chaw absorbers.

Cov qauv ru tsev sib xyaw ua ke ua ke nrog cov ntaub ntawv steel ru tsev, thermal thiab acoustic rwb thaiv tsev cov khaubncaws sab nraud povtseg thiab suspended ceilings los tsim ib txheej huab cua tsis zoo rau lub suab nrov thaiv.

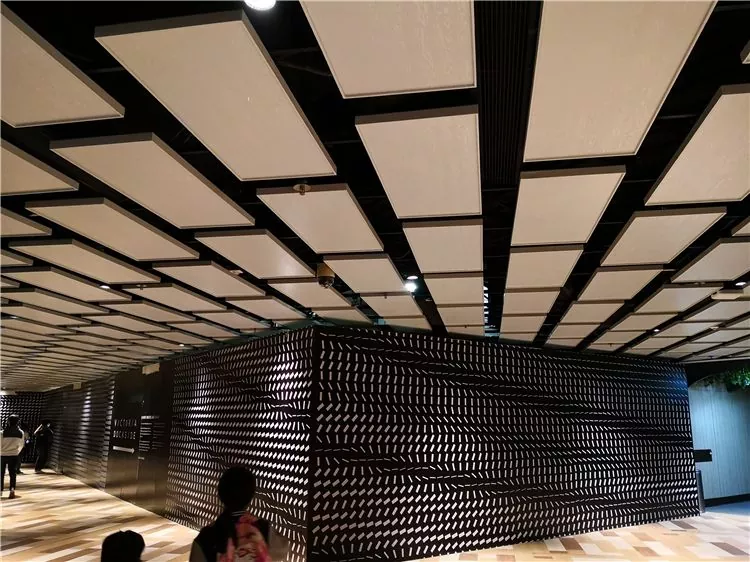

Qhov chaw absorbers xa mus rau perforated aluminium panels ntim nrog 64kg / m³ superfine iav ntaub plaub, tusyees dai hauv qab lub ntsiab ru tsev kab teeb kom dissipate reverberation hauv lub rhiav.

Internal Partition Sound Insulation System

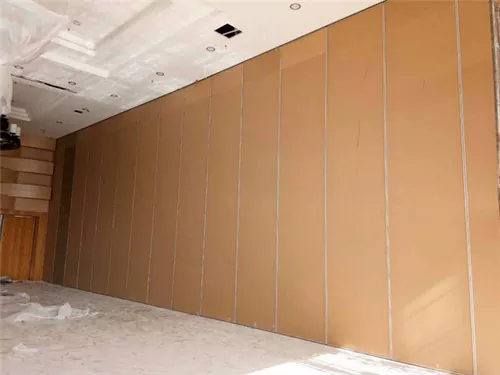

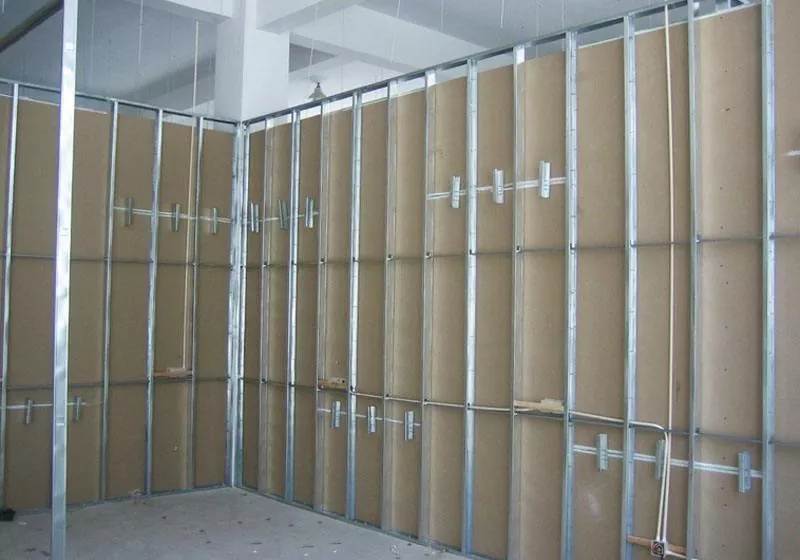

Qhov no yog ib qho kev daws teeb meem los ntawm kev txhim kho lub suab nrov-insulating partitions nyob rau hauv high-noise aav. Lub teeb steel keel muab faib, lub ntsiab kev xaiv rau steel qauv Rhiav partitions, yog tsim los ntawm txias-tsim galvanized lub teeb steel keel ncej, lub ntsej muag boards ntawm ob sab (paper-faced gypsum board, fiber ntau cement siab board los yog calcium silicate board), thiab suab-absorbing cov ntaub ntawv nyob rau hauv lub kab noj hniav.

Qhov rooj, Qhov rai thiab Gap Sealing

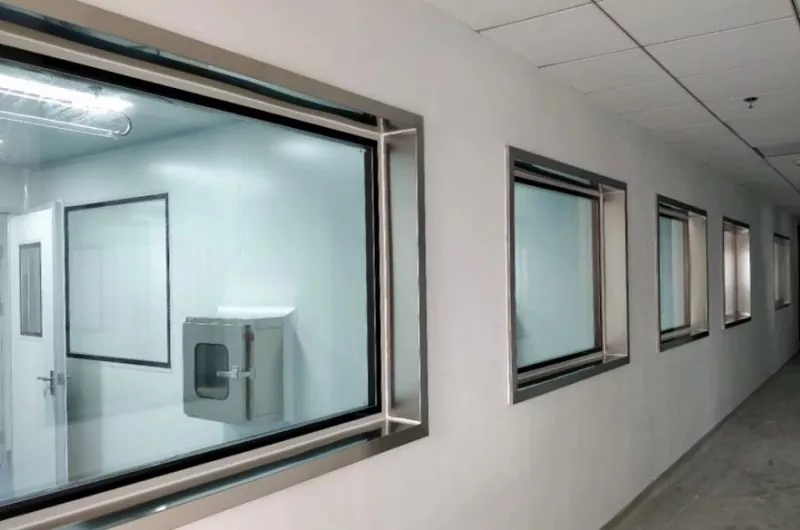

Kev mloog zoo rau cov ntsiab lus yog qhov tseem ceeb rau kev ua tiav lub suab rwb thaiv tsev zoo thiab kev ua haujlwm ntawm lub suab nrov. Rausteel qauv rhiav, suab sealing kev kho mob yuav tsum tau nqa tawm ntawm txhua lub qhov rooj, qhov rais thiab qhov khoob. Ob-txheej hollow suab-insulating qhov rais thiab 50mm-thick industrial soundproof qhov rooj tuaj yeem raug txais yuav los xa cov lus qhia dav dav thiab ua kom zoo rau kev sib cais suab nrov.

Kev tsim lub suab rwb thaiv tsev thiab txo suab nrov yuav tsum tau npaj tag nrho kom tshem tawm qhov tshwm sim ntawm acoustic txuas hniav thiab xaiv cov ntaub ntawv rationally, thiaj li ua tau zoo thiab ruaj khov suab tswj los ntawm lub suab nrov mus rau qhov kawg tau txais.

Lub suab rwb thaiv tsev txheej txheem ntawm lub kaw lus kaw lus yog ib qho tseem ceeb ntawm cov tsev steel qauv thiab cov kev daws teeb meem tseem ceeb rau kev tswj lub suab nrov hauv kev cob qhia steel. Los ntawm kev siv lub kaw lus sib koom ua ke, cov qauv kev ua tau zoo thiab kev ua haujlwm hauv tsev tuaj yeem ua haujlwm zoo ua ke los tsim cov vaj tsev zoo tshaj plaws niaj hnub no.
