Steel Structure Xib Fwb Tsev Tsev

Daim ntawv steel qauv tau txais rau Steel qauv tus kws qhia lub tsev tsev feem ntau yog cov qauv steel ncej. Cov qauv no muaj kev txhawb nqa zoo dua rau cov tsev ntau zaj dab neeg thiab muab kev yooj yim dua rau kev kho vaj tsev sab hauv. EIHE Steel Structure tau tsim thiab tsim cov tsev loj loj rau ntau lub teb chaws thiab cheeb tsam, thiab tau dhau los ua lawv cov neeg muag khoom thiab chaw tsim khoom.

Xa lus nug

Product Description

Tus kws qhia steel qauv lub tsev chav tsev hais txog lub tsev nyob qhov twg lub moj khaum thiab kev txhawb nqa ntawm lub tsev yog tsim los ntawm cov hlau. Nws yog tsim tshwj xeeb los muab qhov chaw nyob rau cov kws qhia ntawv. Peb lub Hoobkas suav steel qauv siv cov txheej txheem tsim khoom ua ntej, uas tuaj yeem ua kom tiav tag nrho ntawm qhov project thiab pab cov kws qhia ntawv kom txav mus sai dua.

● Sib dhos

EIHE Steel Structure, ua tus neeg muag khoom thiab chaw tsim khoom ntawm cov tsev nyob, muaj lub Hoobkas tshaj lij steel qauv. Tag nrho cov khoom tuaj yeem ua tiav hauv lub Hoobkas thiab tom qab ntawd thauj mus rau qhov chaw rau kev teeb tsa ncaj qha, tsis tas yuav tsum tau ua ntxiv rau ntawm qhov chaw.

● Ntau yam kev npaj hauv pem teb

Cov qauv hlau tuaj yeem ua tiav qhov loj me thiab hloov pauv hloov pauv ntawm cov phiaj xwm hauv pem teb, ua tau raws li cov kev xav tau sib txawv xws li cov tsev so thiab tsev neeg suites;

Qhov zoo guarantee ntawm peb cov khoom

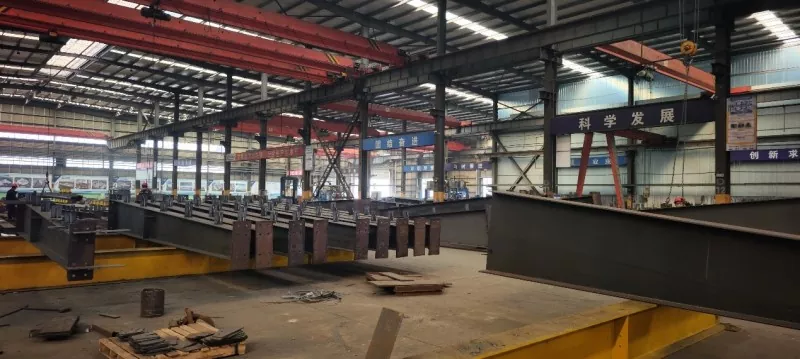

● Professional Suav steel qauv Hoobkas

Steel Structure Teacher's Apartment Building

● Tau txais ntau daim ntawv pov thawj zoo hauv tsev thiab txawv teb chaws

Steel Structure Teacher's Apartment Building

Common steel qauv systems

Tus kws qhia steel qauv cov tsev tsev feem ntau yog ntau zaj dab neeg los yog siab. Qhov sib txawv qhov siab thiab seismic yuav tsum ua rau kev xaiv cov txheej txheem steel sib txawv:

Lub Npe	Yam ntxwv	Muaj cov xwm txheej
Hlau Ncej Structure	Nws yog tsim los ntawm cov kab hlau thiab cov kab hlau steel, nrog cov kab teeb thiab kab txuas txuas nrog vuam. Qhov chaw yog loj, tab sis lub lateral stiffness yog me me. Yuav tsum muaj kev txhawb nqa ntxiv lossis cov phab ntsa shear.	Chav tsev ntau-storey (≤ 12 plag tsev)
Steel ncej - Central Support	X-puab los yog kaum-zoo li tus txhawb nqa yog teem nyob rau hauv lub thav duab los txhim kho lub lateral resistance peev xwm.	Cov tsev nyob nruab nrab, feem ntau pom nyob rau hauv cov kws qhia ntawv cov tsev nyob ib sab ntawm cov tsev qhia ntawv
Steel ncej - Kev them nyiaj yug eccentric	Cov kev txhawb nqa thiab cov kab teeb thiab cov kab tsim hluav taws xob dissipation beam ntu, uas tuaj yeem tawm los thiab tawg lub zog ua ntej av qeeg.	High-siv cheeb tsam lub tsev siab siab
Steel Ncej - Qhob Shear Phab Ntsa (Steel Structure)	Cov ncej steel bears ntsug loads, thaum lub pob zeb shear phab ntsa dais kab rov tav. Lawv qhov zoo sib xyaw ua ke.	Chav tsev nrog qhov siab tshaj 50 meters
Steel Tubular Concrete Kem Ncej	Cov pob zeb yog nchuav rau hauv cov kab hlau, muab cov kabmob muaj peev xwm thiab kev tiv thaiv hluav taws zoo, thiab ntu ntu tuaj yeem txo qis.	Thaum nrhiav cov kab me me qhov sib nrug thiab qhov siab ntshiab loj

Cov lus pom zoo rau kev xaiv cov hlau rau cov khoom

Rau cov qauv steel kws qhia lub tsev tsev, nws muaj ntau cov plag tsev, yog li lub zog tawm los ntawm cov hlau yuav tsum siab. Lub ntsiab hom steel siv yog low-alloy high-strength structural steel. Feem ntau siv steels muaj xws li:

● Q355B: Feem ntau siv cov qauv hlau, nrog lub zog tawm los ntawm 355 MPa, uas siab dua li Q235 qub thiab tuaj yeem txo qhov ntu ntu thiab txuag kev siv steel.

● Q390, Q420: Siv rau hauv qab ob peb plag tsev ntawm cov tsev loj lossis cov tsev siab siab.

● Fire-resistant steel (xws li Q345FR): Qee qhov haujlwm xav tau cov hlau nws tus kheej kom muaj lub sijhawm tiv thaiv hluav taws, uas tuaj yeem txo qhov tuab ntawm cov nplaim hluav taws.
