Steel Structure Railway chaw nres tsheb Maintenance Depot

Lub steel qauv railway chaw nres tsheb tu depot yog ib tug complex system uas integrates architecture, structural mechanics, railway engineering thiab txheej txheem tsim. Nyob rau hauv peb cov chaw tsim khoom hauv Suav teb, peb faib tag nrho lub tsev rau hauv cov khoom sib txawv kom ua tiav cov prefabrication thiab sib dhos siv hom.

Qauv qauv

● Ncej qauv: Tsim nyog rau kev tu vaj tse ntawm cov tsheb ciav hlau zoo tib yam nrog cov spans me me thiab lub teeb loads.

● Cov qauv kab sib chaws: Qhov no yog daim ntawv uas siv ntau tshaj plaws hauv kev tu tsev rau cov tsheb ciav hlau ceev thiab cov tsheb ciav hlau tam sim no. Nws yog tsim los ntawm ntau tus pas nrig txuas los ntawm cov nodes, tsim ib daim phiaj loj loj peb sab. Nws qhov zoo yog: siab rigidity thiab zoo seismic tsis kam. Nws tuaj yeem faib qhov hnyav ntawm lub ru tsev mus rau cov kab uas nyob ib puag ncig, yog li ua tiav qhov loj-nruab yam tsis muaj kab ntau tshaj 60 meters, tso cai rau cov tsheb ciav hlau tuaj yeem xa tawm dawb hauv lub tsev.

● Ntev-span arch lossis tube truss: Rau kev cob qhia tshwj xeeb uas yuav tsum tau nqa ntawm cov khoom loj heev, hom qauv no yuav raug siv los ua kom tiav qhov kev tshem tawm loj dua.

Cov yam ntxwv ntawm cov khoom muaj pes tsawg leeg

● Steel beam

● Steel kem

● crane nqaj

● Txhawb nqa

● Kev txhawb nqa kab rov tav

Cov khoom lag luam

Shanghai Hongqiao EMU Maintenance Depot

Lub ru tsev ntawm kev saib xyuas ntawm Hongqiao EMU Maintenance Depot yog ib qho ntawm cov qauv hlau loj tshaj plaws nyob rau hauv Suav teb thaum lub sijhawm ntawd. Nws yog tsim los ntawm ntau txhiab tus pas nrig, thiab txhua tus pas nrig muaj bolts ntawm ob qho kawg uas tau muab ntsia rau hauv ib lub pob steel. Qhov kom zoo dua ntawm txoj kev sib txuas no yog kev txhim kho siab, kev tsim kho ceev ceev, thiab kev tswj tau zoo. Nws yog ib tug complex system uas integrates kev qhuab qhia xws li civil engineering, mechanical engineering, hluav taws xob engineering, thiab cov ntaub ntawv technology. Nws lub ru tsev loj-paj kab sib chaws tau tsim tshwj xeeb los ua kom tau raws li nws cov txiaj ntsig, peb-seem, thiab hloov kho cov txheej txheem hloov kho, thiab nws yog ib qho piv txwv zoo tshaj plaws ntawm kev sib koom ua ke ntawm daim ntawv thiab kev ua haujlwm.

Parameter (Specification)

FAQ

1. Dab tsi yog qhov tsim kev pab cuam lub neej ntawm steel qauv railway chaw nres tsheb txij nkawm depot?

Tsim kev pab cuam lub neej: Feem ntau 50 xyoo.

2. Yuav ua li cas cov cuab yeej tseem ceeb nyob rau hauv kev saib xyuas warehouse koom tes nrog steel qauv tsev?

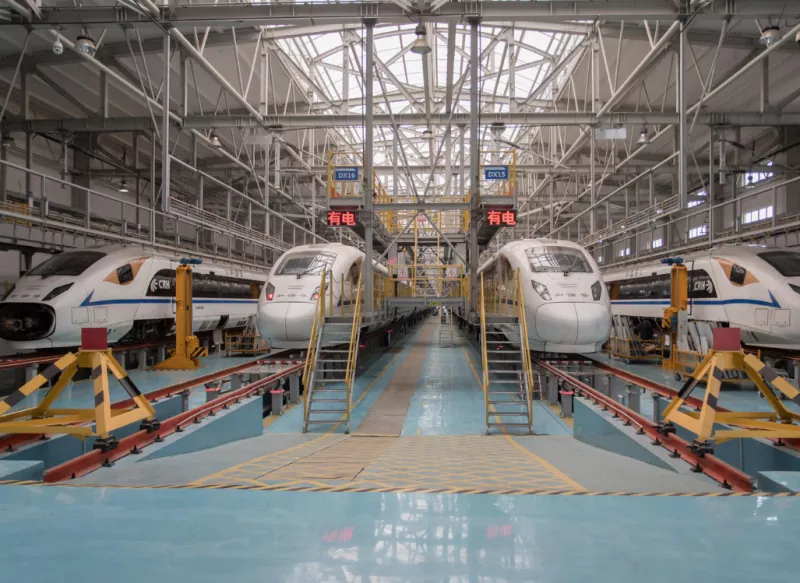

● Peb-zaj dab neeg ua haujlwm platform: Cov qauv steel platform yog ze rau lub tsheb ciav hlau, tso cai rau cov neeg ua haujlwm ib txhij tshawb xyuas lub hauv qab, sab hauv, thiab sab saum toj ntawm lub tsheb ciav hlau (xws li pantographs thiab cua txias), ua kom muaj kev ua haujlwm peb sab.

● Choj crane (crane): Tshem tawm hauv qab lub ru tsev steel kab teeb, nws nqa 5-20 tuj steering thav duab, lub cev muaj zog, thiab lwm yam khoom loj. Cov kab hluav taws xob tshwj xeeb yuav tsum tau tsim tshwj xeeb los tiv thaiv kev sib tsoo.

3. Vim li cas lub ru tsev ntawm lub tsev kho mob zoo li daim phiaj? Dab tsi yog qhov tshwj xeeb?

Nws yog ib tug bolted spherical node grid qauv, zoo li ib tug loj loj peb-dimensional kab laug sab web, muaj li ntawm txhiab tus steel kav txuas nrog bolts rau khoom steel pob. Nws qhov zoo dua yog tias cov khoom thauj tau muab faib rau txhua tus tswvcuab thiab cov kab nyob ib puag ncig, ua tiav qhov chaw loj-loj yam tsis muaj kab.
