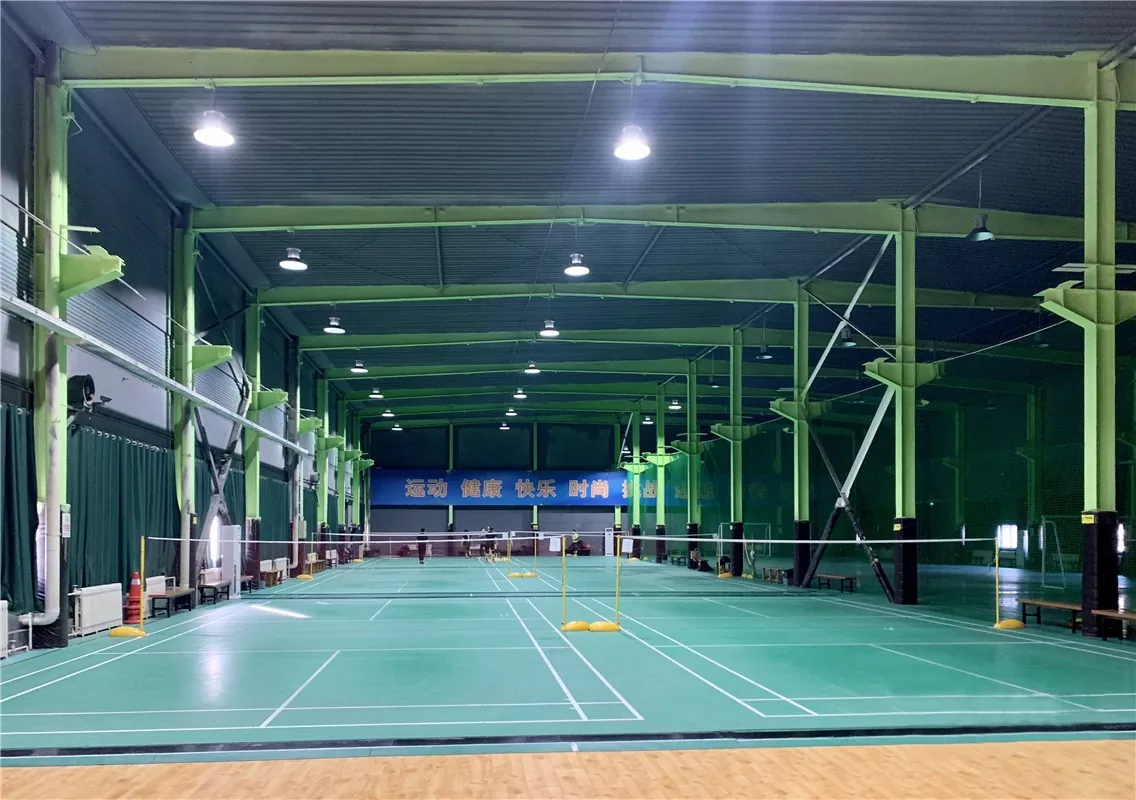

Steel Structure Badminton Hall

Yog tias koj tab tom npaj tsim cov qauv hlau ntaus pob tesniv, EIHE Steel Structure, ua cov chaw tsim khoom thiab cov khoom siv steel hlau hauv Suav teb, muaj ntau tshaj 20 xyoo ntawm kev nplua nuj thiab tuaj yeem tsim kev nyab xeeb, ruaj khov thiab kev lag luam badminton tsev rau koj. Thov hu rau peb thiab peb pab neeg tshaj lij yuav pab koj.

Xa lus nug

Product Description

Qauv Paub meej

Cov qauv ntawm steel qauv badminton nrog tsev yog steel qauv. Tag nrho cov khoom siv thauj khoom ntawm nws yog ua los ntawm steel. Nws cov khoom tseem ceeb muaj xws li steel kem, steel beams, kem spacers, kab rov tav kev txhawb nqa, thiab lwm yam. Dhau li ntawm no portal thav duab qauv, ib tug spatial grid qauv kuj tau txais yuav. Ob leeg ntawm cov qauv no tuaj yeem ua tiav qhov loj-ntev, kab-dawb qhov chaw siab tshaj 30 meters, ua tau raws li cov kev xav tau ntawm kev ntaus pob tesniv rau kev pom dav thiab qhov chaw dav, thiab tso cai rau kev hloov pauv thiab kev npaj ntawm qhov chaw sib txawv, muaj peev xwm ua kom haum rau cov neeg ntaus pob ncaws pob ntau dua thiab txhim kho cov txiaj ntsig kev lag luam.

Kev tsim khoom zoo

Tag nrho cov khoom siv hauv tsev ntawm kev ntaus pob tesniv tuaj yeem tsim thiab tsim hauv peb lub hoobkas. Peb pab neeg tsim qauv yuav tsim raws li qhov tseeb ntawm koj qhov project site, thiab tom qab ntawd txheej txheem thiab pre-fabricate cov khoom raws li cov duab kos. Tom qab tag nrho cov khoom yog pre-fabricated, lawv yuav tau ntim thiab thauj mus rau qhov chaw tsim kho rau installation. Cov txheej txheem installation yog bolt txuas thiab vuam. Txoj kev teeb tsa no tuaj yeem ua kom muaj kev nyab xeeb thaum tseem ua kom nrawm ntawm kev tsim kho thiab tswj tus nqi zoo.

Cov yam ntxwv zoo

Steel qauv yog lub tsev tsim tshwj xeeb tsim rau kev ntaus pob tesniv. Nws cov yam ntxwv tseem ceeb yog siv lub zog siab, lub teeb yuag thiab plasticity ntawm cov hlau kom ua tiav qhov loj-span, hloov tau yooj yim thiab kev tsim kho sai. Txawm hais tias nws yog hosting cov xwm txheej thoob ntiaj teb lossis ua haujlwm txhua hnub, nws tuaj yeem muab cov kev daws teeb meem zoo.

Khoom parameters

Khoom npe	Steel Structure Badminton Hall
Hom	EIHE Steel Qauv
Keeb kwm	Qingdao, Shandong, Suav
Ib qhov chaw ib cheeb tsam loj	13.4 m × 6.1 m
Tsis muaj cheeb tsam	Tshaj tawm sab nraud: ≥2 meters, tshaj qhov pib: ≥3 meters
Clear qhov siab	≥9m
Qauv qauv	Truss structure / Spatial grid structure
Feem ntau span	30-45 m
Steel ncej / steel kab	H-zoo li tus hlau
Main steel qauv yield zog	≥355Pa
Ru tsev	75/100mm tuab pob zeb wool sandwich vaj huam sib luag
Phab ntsa system	50/75mm tuab pob zeb wool sandwich vaj huam sib luag / cib phab ntsa / kab hlau rhuav phab ntsa
Roof daylighting area ratio	5% -10%
Vertical illuminance	≥1000 lux
Kev kho saum npoo	Painting + Fireproof txheej

Cov khoom lag luam

Beijing Beite Steel Structure Badminton Hall yog ib lub hauv paus kev cob qhia rau pab pawg ntaus pob hauv Suav teb thiab tseem yog ib lub chaw ua haujlwm siab tshaj plaws uas siv tau rau cov pej xeem hauv Beijing. Nws yog ib qho piv txwv zoo ntawm kev sib xyaw ntawm kev tshaj lij thiab kev lag luam kev lag luam.
