Chaw Grid Steel Ncej Chaw nres tsheb

Space Grid Steel Ncej Chaw nres tsheb xa mus rau cov chaw nres tsheb uas tsim los nrog cov kab sib chaws steel spatial. Cov qauv hlau muaj cov txiaj ntsig zoo nrog rau cov kab loj-kem-dawb kev pab them nqi thiab lub teeb, pob tshab architectural teebmeem. Raws li cov kws tshaj lij steel qauv tsim, EHSS suav nrog cov tsev pej xeem ua ib qho ntawm peb cov lag luam tseem ceeb.

Xa lus nug

Product Description

Qhov Chaw Grid Steel Ncej Chaw nres tsheb ua los ntawm peb lub Hoobkas yog cov tsheb ciav hlau thauj mus los nrog cov kab sib chaws steel saws rau lub ru tsev lossis canopies. Lub spatial grid qauv muab broad views thiab sleek lub teeb yuag aesthetics, uas yog pom tau hais tias cia siab rau steel lug. Vim li cas steel qauv? Yuav ua li cas steel ua tiav cov txiaj ntsig zoo?

Ntsiab Dimension	Core Advantages ntawm Steel Structure
Lub teeb nyhav & siab zog	Tshaj 10 npaug zog dua li pob zeb, tsuas yog 3 npaug ntawm qhov ntom
Txhim khu Axial Force Transfer	Isotropic homogeneous cov ntaub ntawv uas siv tag nrho cov khoom siv zog rau kev lag luam steel noj
High Form Flexibility	Ua kom cov duab nyuaj xws li cov ntawv yoj thiab cov npoo nkhaus
Txhim khu kev sib txuas	Tsim ib qho ruaj khov 3D spatial load-bearing system nrog cov kev sib kis ceev ceev
Siab Prefabrication Rate	Cov tswv cuab thiab cov pob qij txha yog prefabricated nyob rau hauv factories kom tswj tau zoo thiab siab precision
Kev tsim kho sai	Kev sib dhos hauv av ua ke nrog ib qho kev nqa lossis lub rooj sib dhos ua kom lub sijhawm tsim kho thiab txo qhov chaw cuam tshuam
Ntsuab & Sustainable	Hlau yog 100% recyclable thiab khaws cov khoom seem zoo tom qab lub tsev pabcuam lub neej, txo cov khoom pov tseg
Siab Seismic Redundancy	Ntau txoj kev thauj khoom thauj mus los txhim kho cov txheej txheem robustness thiab tiv thaiv brittle vau nyob rau hauv muaj zog av qeeg

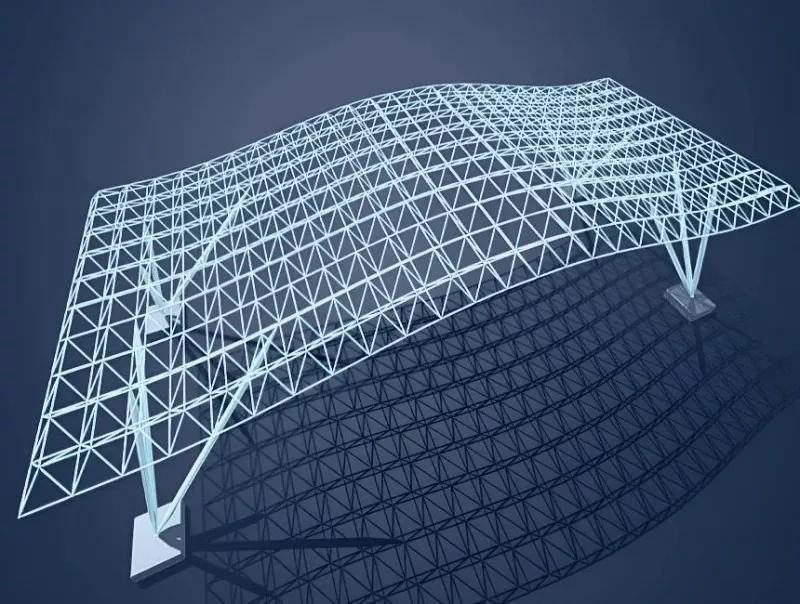

Spatial grid structures muab architectural teebmeem ntawm cov spans loj, lub teeb yuag thiab dawb-daim ntawv styling. Cov qauv hlau muaj cov txiaj ntsig zoo suav nrog lub zog siab, kev hloov pauv tau zoo thiab kev tsim kho siab heev. Ob qho tib si ntxiv rau ib leeg, ua rau lawv qhov kev daws teeb meem zoo tshaj plaws rau cov tsev loj loj niaj hnub no. Tau txais txiaj ntsig los ntawm ob qho tib si spatial grid qauv thiab prefabricated steel qauv, peb Qhov Chaw Grid Steel Ncej Chaw nres tsheb sawv tawm raws li qhov kev xaiv nrov rau cov tsev nyob tam sim no.

Space Grid Steel Frame Stations

Cov ntawv thov tseem ceeb

Peb Qhov Chaw Grid Steel Ncej Chaw Nres yog siv rau hauv plaub qhov xwm txheej:

▷ Tos Hall Roof

▷ Platform Canopy

▷ Cov Tsev Thauj Tsheb Loj Loj

▷ Medium & Me Me High-Speed Railway Chaw Nres Tsheb

Steel qauv vaj tsev tsim nrog spatial grid structures thiab lawv cov kev sib txuas ua ke feem ntau poob rau hauv pawg hauv qab no:

Tus qauv tsim Foua ua rm	Siv tau Scenarios
Inverted Square Pyramid Spatial Grid	Tos cov tsev ntawm high-speed railway chaw nres tsheb
Spatial Yeeb Nkab Truss	Loj-span chaw nres tsheb lub ru tsev
Composite System ntawm Spatial Grid & Transition Truss	Chaw nres tsheb cov tsev nrog cov duab complex
Chaw Ncej	Platform canopies

Tsis tas li ntawd, cov ntsiab lus tseem ceeb ntawm peb Qhov Chaw Grid Steel Ncej Chaw nres tsheb feem ntau suav nrog:

Qeb yam khoom	Cov Khoom Siv
Spatial Grid Cov tswv cuab	Q235B / Q355B puag ncig lossis lub kaum sab xis steel raj
Welded Pob / Bolted Pob Joints	Welded npas (Q355B) / Bolted pob (45 # steel)
Chords thiab Web Members ntawm Spatial Pipe Trusses	Round steel raj (Q355B)
Cam khwb cia hlau Joints	Cast steel Cheebtsam
Vaj Huam Sib Luag	Aluminium-magnesium-manganese panels / Profiled steel daim hlau nrog thermal rwb thaiv tsev txheej
Hnub ci teeb pom kev zoo	Polycarbonate panels / iav

Technical Specifications & Project Experience

Cov thev naus laus zis tseem ceeb ntawm Chaw Grid Steel Ncej Chaw Nres Tsheb suav nrog synchronous hydraulic lifting lossis rotary lifting, tswj qhov kub thiab txias rau cam khwb cia steel pob qij txha, thiab kev tshuaj xyuas kev sib xyaw ua ke BIM thiab taw tes huab tshuab. Nws yog niaj hnub loj-span pej xeem cov khoom lag luam uas sib xyaw ua ke ntawm cov qauv zoo nkauj thiab qhov chaw ua haujlwm.

Yam khoom	Parameter
Qhov System	Inverted square pyramid spatial grid / spatial yeeb nkab truss / qhov chaw ncej
Qib Steel	Q235B / Q355B, ASTM A572 Gr.50, thiab lwm yam.
Hom sib koom	Welded pob pob qij txha / bolted pob pob qij txha / cam khwb cia hlau pob qij txha
Txoj kev sib txuas	Vuam / high-strength bolt txuas
Txhawb hom	Multi-point kev txhawb nqa ntawm plaub sab ntawm qis chord / kem txhawb nqa
Tus qauv qhov tob	1.75–3.8 m
Tsim Kev Pabcuam Lub Neej	50 xyoo
Seismic Fortification Intensity	Qib 7–9
Kev tsim kho tshuab	Synchronous hydraulic lifting / teb lifting

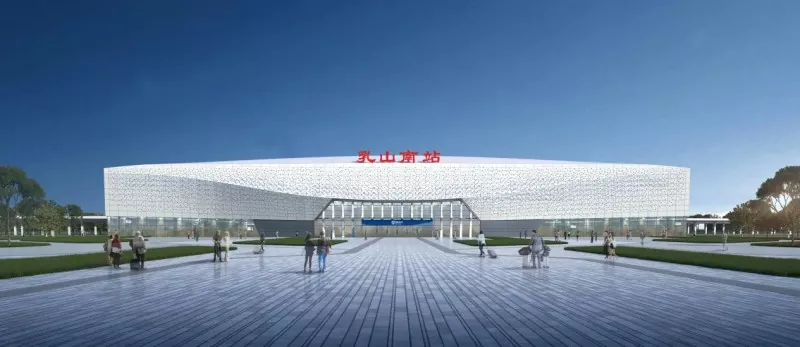

Rushan South Chaw nres tsheb hauv Weihai, qhov chaw thauj khoom tseem ceeb ntawm Laiyang-Rongcheng High-Speed Railway tsim los ntawm EHSS, tau txais kev tsim kho kom zoo nrog thaj tsam ntawm 10,000 square meters. Lub tsev muaj ib lub tsev tos qhua, chaw pabcuam neeg caij tsheb, chaw ua haujlwm thiab chav tsev khoom siv. Nws lub ru tsev tau txais ib daim phiaj steel, ib daim ntawv ntawm steel spatial grid system, ua qhov project no ib tug raug xwm txheej ntawm peb qhov chaw Grid Steel ncej chaw nres tsheb khoom.

Space Grid Steel Frame Stations

FAQ

Q1: Yuav ua li cas seismic kev ua tau zoo ntawm qhov chaw daim phiaj chaw nres tsheb?

Qhov chaw grid qauv muaj qhov zoo tshaj plaws seismic peev xwm. Ua ke nrog peb kev tsim kho, cov chaw nres tsheb peb xa ua tiav kev ua tau zoo seismic.

Q2: Dab tsi yog qhov txawv ntawm qhov chaw kab sib chaws thiab cov phiaj xwm phiaj xwm?

Qhov chaw kab sib chaws siv cov hlau tsawg dua thiab xa cov qauv nruj dua rau tib qhov kev ncua ntev.

Q3: Cov chaw nres tsheb puas tuaj yeem ua rau lub sijhawm tsim kho?

Kev siv hydraulic synchronous lifting technology zoo heev txo cov sij hawm ua hauj lwm ntawm qhov siab.

Q4: Dab tsi yog qhov siab tshaj plaws ua tiav tau rau qhov chaw nres tsheb kab sib chaws?

Inverted square pyramid qhov chaw daim phiaj npog chaw nres tsheb tos nrog qhov ntev ntawm 40-90 m. Composite system ntawm spatial tubular truss ntxiv rau qhov chaw kab sib chaws tuaj yeem paub lub ru tsev spans ntawm 100-meter qib.

Q5: Koj puas tuaj yeem tsim cov chaw nres tsheb raws li Eurocode thiab AISC cov qauv?

Peb tuav CE, ISO thiab AISC ntawv pov thawj. Peb Qhov Chaw Grid Steel Ncej Chaw nres tsheb tuaj yeem ua tau raws li koj xav tau.
