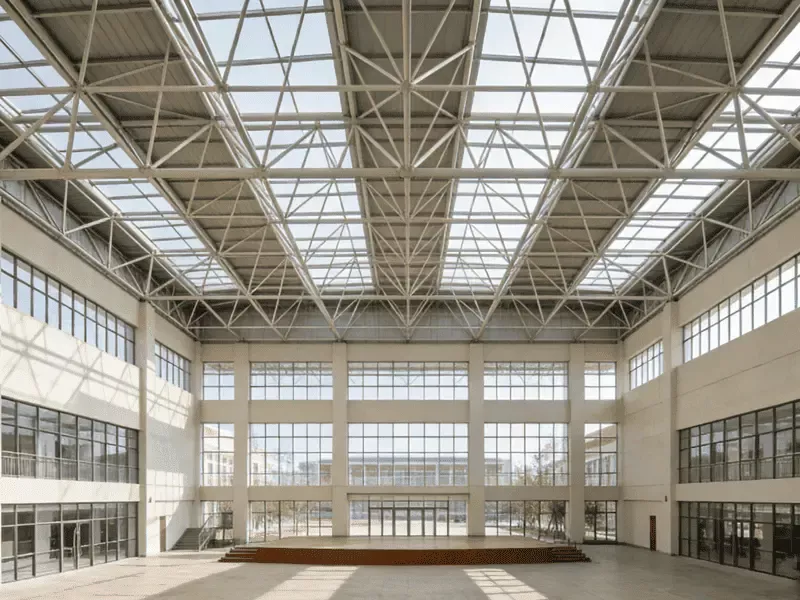

Tsev Kawm Ntawv Steel Structure Lecture Hall

Lub Tsev Kawm Ntawv steel qauv lus qhuab qhia lub tsev yog ib qho ntawm cov haujlwm tseem ceeb ntawm EIHE Steel Structure. Peb muaj ntau tshaj 20 xyoo ntawm kev paub nyob rau hauv tsev kawm ntawv tej yaam num, xws li cov tsev kawm ntawv qib kindergarten mus rau tsev kawm ntawv cov tsev. Peb tau dhau los ua tus neeg xa khoom thoob ntiaj teb thiab cov chaw tsim khoom ntawm steel qauv tsev kawm ntawv cov tsev. Yog tias koj xav tau los tsim lub tsev kawm ntawv auditorium, thov koj xav tiv tauj peb.

Xa lus nug

Product Description

Lub tsev kawm ntawv steel qauv lus qhuab qhia lub tsev hais txog ntau lub tsev loj-loj auditorium lub tsev nrog cov qauv hlau ua lub hauv paus ntsiab lus. Lub hauv paus ntsiab lus tsim los ntawm cov khoom siv hlau muaj zog muaj zog sib npaug sib npaug thiab tuaj yeem ua tiav qhov chaw loj ntawm ntau tshaj 40 meters. Qhov tshwm sim ntawm cov qauv steel tau ua tau raws li cov kev xav tau ntawm cov tsev kawm ntawv rau lub sijhawm siv luv luv, qhov chaw loj, thiab ua haujlwm ntev thiab lub zog.

Kev siv vaj tsev scenarios

● Kev nthuav qhia kev kawm

● Cov lus qhuab qhia

● Cov rooj sib tham

● Kev ua yeeb yam

● Kev ua koob tsheej

● Kev sib sau me me

Cov qauv tsim qauv

● Portal ncej qauv

● Steel truss qauv

● Steel daim phiaj qauv

Core Zoo

● Qhov chaw dav dav. Lub tensile thiab compressive lub zog ntawm steel yog siab heev, tso cai rau txo los yog tshem tawm cov kab nyob rau hauv lub sab hauv, yog li tsim ib tug qhib thiab unobstructed qhov chaw nyob rau hauv lub tsev uas ua kom zoo heev rear-saib tej yam kev mob.

Khoom siv specifications siv

Parameter qeb	Tshwj xeeb qhov project/section	Feem ntau ntawm qhov muaj nuj nqis/qhov taw qhia
Lub tsev nplai	Tus naj npawb ntawm cov neeg nyob	Tsev kawm ntawv theem nrab: 300 - 800 tus neeg University: 1000 - 2000 tus neeg
	Ib lub rooj zaum index	0.8 - 1.2 m2 ib lub rooj zaum 0.8 - 1.2 m2 rau ib lub rooj
	Tag nrho lub tsev qhov siab	Tsev kawm ntawv theem nrab: 8 - 12 m University: 15 - 25 m
Kev nyuaj siab	Nyob load ntawm pem teb/ru tsev	Tsis siv neeg lub ru tsev: 0.5 kN / m2 0.5 kN / m2 Hauv pem teb: 2.5 - 3.5 kN / m2 2.5 - 3.5 kN / m2 Ntu ntu: 4.0 - 5.0 kN / m2 4.0 - 5.0 kN / m2
	Cua load	0.3-0.8 kN/m20.3-0.8 kN/m2
	Kev siv steel (qhov taw qhia kev lag luam)	Ntev: 18 - 24 m: 40 - 60 kg / m2 40 - 60 kg / m2 24 - 36 m: 45 - 70 kg / m2 45 - 70 kg / m2 Qhov siab tshaj 36m: 60 - 90 kg / m2 60 - 90 kg / m2

Vim li cas cov tsev kawm ntawv nyiam siv cov qauv hlau?

Thaum tsim cov tsev kawm ntawv rau cov tsev kawm ntawv, feem ntau muaj lub sijhawm nruj, nrog rau cov kev xav tau ua tiav ua ntej pib lub sijhawm kawm ntawv, cov qauv kev nyab xeeb siab, thiab ntau yam kev xav tau ua haujlwm. Cov qauv hlau tuaj yeem ua tau raws li cov cai no:

Kev tsim kho ceev ceev.

Steel Cheebtsam yuav prefabricated nyob rau hauv lub Hoobkas thiab ces thauj mus rau qhov chaw rau kev sib dhos ncaj qha. Kev tsim kho tsis zoo heev los ntawm huab cua thiab caij nyoog, uas tuaj yeem ua rau lub sijhawm tsim kho luv.

Sab hauv layout yog hloov tau.

Tag nrho cov load-bearing rog ntawm Lub Tsev Kawm Ntawv steel qauv lus qhuab qhia yog yug los ntawm lub ntsiab steel ncej. Cov phab ntsa tsis dais ib qho load, yog li cov phab ntsa sab hauv tuaj yeem raug tshem tawm dawb lossis hloov kho. Qhov no ua rau qhov chaw yooj yim dua.

Zoo heev seismic tsis kam ua haujlwm

Hlau yog ib qho ntawm cov khoom siv hauv tsev uas muaj zog tshaj plaws. Cov khoom siv hauv tsev yog nruj nreem txuas nrog bolts thiab vuam, thiab tag nrho cov khoom tuaj yeem koom nrog kev sib kis ntawm lub zog, ua kom muaj kev ruaj ntseg ntawm cov qauv.

Varied designs

Cov qauv hlau tuaj yeem yooj yim tsim cov nkhaus, nkhaus qhov chaw lossis cov duab ru tsev tsis tu ncua, ua rau cov tsev kawm ntawv muaj kev pom zoo thiab niaj hnub.
