Portal Ncej Chaw nres tsheb Steel Siv
Portal Frame Station Steel Kev tsim kho yog lub tsev tsim steel-structured chaw nres tsheb txais yuav portal thav ntawv raws li lub ntsiab load-bearing qauv, feem ntau yog ua hauj lwm rau me me thiab nruab nrab cov chaw nres tsheb. EIHE Steel Structure (EHSS) tau cog lus los tsim cov khoom siv hlau zoo. Nrog rau kev ua haujlwm dav dav hauv kev ua haujlwm ntawm pej xeem cov tsev, peb yog cov khoom lag luam zoo tshaj plaws ntawm cov khoom siv steel rau kev lag luam tsheb thauj mus los.
Portal Ncej Chaw Nres Nkoj Steel Kev Tsim Kho yog qhov chaw nres tsheb ciav hlau tsheb ciav hlau lub tsev daws teeb meem uas tau txais cov khoom siv-web portal rigid thav duab system raws li nws lub ntsiab load-bearing skeleton.
Tsim los ntawm kev sib txuas nruj ntawm cov kab hlau thiab lub ru tsev steel kab teeb los tsim cov portal-puab thav duab, cov khoom no ua rau cov chaw loj-span-dawb qhov chaw, xa cov khoom vaj tsev zoo ntawm cov bays dav, siab ntshiab qhov siab thiab kev tsim kho sai rau cov tsev nyob hauv chaw nres tsheb.
Lub caij no, peb cov khoom muaj lub zog tseem ceeb suav nrog kev ua haujlwm zoo heev, kev lag luam siab thiab kev phooj ywg ib puag ncig, uas ua tau raws li qhov yuav tsum tau ua thiab kev txaus siab ntawm qhov chaw nres tsheb me me thiab nruab nrab.
Piv nrog rau cov qauv ua vaj tse ib txwm muaj, Portal Ncej Chaw Nres Nkoj Steel Kev Tsim Kho los ntawm peb lub Hoobkas boasts qhov zoo tshaj plaws hauv ntau yam rau kev tsheb ciav hlau cov tsev.
|
Cov khoom sib piv |
Portal Ncej Steel Tsim |
Reinforced Concrete Structure |
|
Tus Kheej Tus Kheej Qhov hnyav |
Teeb |
Hnyav |
|
Lub sij hawm tsim kho |
Luv luv |
Ntev |
|
Qib Industrialization |
Siab |
Tsawg |
|
Kem Grid Layout |
Yooj yim |
Txwv tsis pub |
|
Comprehensive Economic Benefit |
Siab |
Nruab nrab |
|
Seismic Performance |
Zoo heev |
Nruab nrab |
Lub portal rigid thav duab system muaj ntau yam kev faib tawm, ntawm cov khoom siv-web portal rigid thav duab yog hom tsim nyog tshaj plaws rau peb cov khoom siv Portal Frame Station Steel Siv. Lub caij no, peb kuj tuaj yeem kho cov khoom ntawm lwm yam qauv rau koj.
|
Hom qauv |
Structural Nta |
Daim ntawv thov Scenario |
|
Solid-web Portal Rigid Ncej |
Welded H-steel / kub dov H-steel, rigid beam-kem txuas |
Standard chaw nres tsheb, canopies, tsheb depots |
|
Corrugated-web Portal Rigid Ncej |
H-steel nrog corrugated webs hloov flat webs |
Cov phiaj xwm loj loj, cov khoom siv-txuag kev xav tau |
|
Lattice Portal Rigid Ncej |
Truss-hom kab teeb thiab kab nrog siab quab yuam-kev ua haujlwm zoo |
Super-loj-span thiab hnyav-load scenarios |
|
Multi-span Portal Rigid Ncej |
Nruam layout ntawm 2-3 spans, tsis muaj cranes |
Multi-track tsheb depots |
Tsis tas li ntawd, peb cov khoom siv Portal Frame Station Steel Siv cov khoom nta ntau yam ntawm cov ntawv thov tseem ceeb, feem ntau yog npog:
▷ Elevated Station Building
▷ Tsheb ciav hlau Stabling & Tshuaj xyuas Depot ntawm Rolling Tshuag Yard
▷ Maintenance Depot ntawm Rolling Stock Yard
▷ Metro Chaw nres tsheb
Peb Portal Ncej Chaw Nres Nkoj Steel Cov khoom siv feem ntau muaj peb qhov tseem ceeb: cov ncej tseem ceeb, cov txheej txheem thib ob thiab cov txheej txheem kaw. Nws cov ntsiab lus tseem ceeb suav nrog:
|
Main Rigid Ncej |
|
|
Hlau Kem |
Vertical load-bearing & lateral quab yuam kuj |
|
Lub Tsev Hlau Beam |
Dais ru tsev loads, rigidly txuas nrog txhua |
|
Haunch |
Txhim kho cov pob qij txha thiab txhim kho flexural bearing muaj peev xwm |
|
Secondary Structure |
|
|
Purlin |
Txhawb lub ru tsev panels thiab txwv beam flanges |
|
Phab ntsa Beam |
Txhawb phab ntsa panels |
|
Inter-kem Bracing |
Xyuas kom longitudinal txhav thiab hloov cov rog kab rov tav |
|
Enclosure System |
|
|
Vaj Huam Sib Luag |
Waterproofing, thermal rwb thaiv tsev thiab kho kom zoo nkauj |
|
Phab ntsa vaj huam sib luag |
Cov ntaub thaiv npog thiab thermal rwb thaiv tsev |
Kev paub txog qhov project

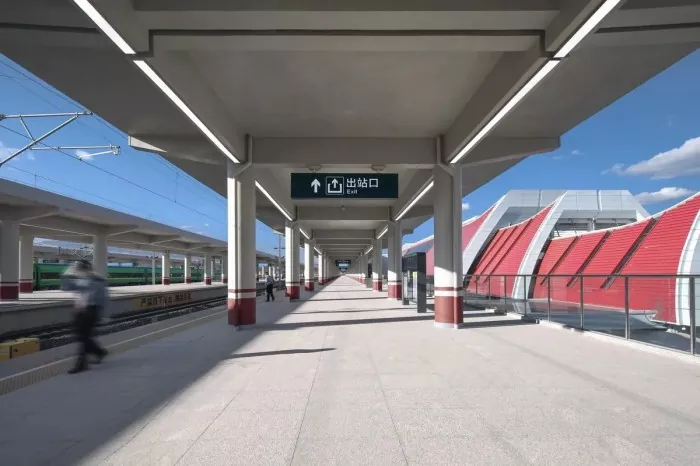

Rushannan Railway chaw nres tsheb nyob rau hauv Rushan City, Shandong Province, Tuam Tshoj, ib tug raugchaw nres tsheb qhov projectua los ntawm EHSS. Tag nrho cov kev tsim kho cheeb tsam ntawm qhov project yog 10,000 square meters nrog ib tug steel noj ntawm 1,358 tons. Lub platform canopies txais yuav portal thav duab qauv, sawv cev rau ib qho ntawm cov kev siv ntawm peb Portal Frame Chaw nres tsheb Steel Siv cov khoom.
Technical Specifications
Peb lub Hoobkas siv cov khoom txias-tsim nyias-phab ntsa hlau rau purlins thiab phab ntsa kab teeb, profiled hlau ntawv rau lub ru tsev thiab phab ntsa, thiab npaj cov bracings kom tsim tau lub teeb yuag lub tsev structural system, uas yog lub portal rigid thav duab qauv. Nws muaj qee qhov zoo piv nrog rau lwm cov txheej txheem steel.
Khoom Parameters
|
Khoom |
Portal Ncej Chaw nres tsheb Steel Siv |
|
Qib Steel |
Q235B / Q355B |
|
Hom kev sib txuas |
Bolt-welded / Bolted |
|
Span |
12-36 m |
|
Kem Spacing |
6 / 7.5 / 9 m |
|
Eave Height |
6-12 m / 8-15 m |
|
Ru tsev Slope |
1:15 |
|
Seismic Resistance |
Qib 8 |
|
Hluav taws kub tsis kam |
Qib II |
|
Kev Pabcuam Lub Neej |
50 Xyoo |
Kev sib piv tus qauv
Peb Portal Ncej Chaw Nres Nkoj Steel Kev Tsim Kho txais yuav cov ncej portal, piv nrog lwm cov txheej txheem steel.
|
Sib piv Dimension |
Portal Rigid Ncej |
Steel Space Truss |
Hlau Truss |
Hlau Ncej |
|
Daim Ntawv Qauv |
Khoom-web beam-kem rigid kev twb kev txuas |
Cov tswv cuab spatial txuas ntawm cov pob qij txha |
Plane / space truss |
Beam-kem ncej |
|
Span Peev |
12-36 m |
30-100 m + |
18-50 m |
9-18 m rau pem teb |
|
Kev siv hlau |
25-40 kg/m² |
40-80 kg/m² |
35-60 kg/m² |
35-55 kg/m² |
|
Kev tsim kho ceev |
Ceev ceev |
Nruab nrab |
Nruab nrab |
Ceev ceev |
|
Siv Tau Qhov siab |
Ib zaj dab neeg |
Ib zaj dab neeg nrog loj span |
Ib zaj dab neeg / ntau zaj dab neeg |
Ntau zaj dab neeg |
|
Daim ntawv thov chaw nres tsheb |
Platform canopies, dov Tshuag depots |
Chaw nres tsheb lub ru tsev |
Loj-span chaw nres tsheb vaj tse |
Main qauv ntawm chaw nres tsheb cov tsev |
Nyob rau hauv cov ntsiab lus, peb launched Portal Ncej Chaw nres tsheb Steel siv cov khoom yog tsim rau me me- thiab nruab nrab-qhov chaw nres tsheb chaw, featuring tshwj xeeb zoo nyob rau hauv daim ntawv thov, kev ua tau zoo thiab nqi.
FAQ
Q1: Lub sij hawm tsim kho rau steel qauv khoom yog dab tsi?
Peb Portal Ncej Steel Kev Tsim Kho txais yuav lub Hoobkas prefabrication ntxiv rau ntawm qhov chaw sib dhos qauv, uas tuaj yeem txo lub sijhawm tsim kho mus rau 2-3 lub hlis.
Q2: Koj ua li cas tiv thaiv corrosion thiab tiv thaiv hluav taws rau koj cov khoom?
Peb cov khoom siv pleev xim (zinc-nplua nuj epoxy primer + epoxy micaceous hlau nruab nrab lub tsho + polyurethane topcoat) los yog kub-dip galvanizing rau kev tiv thaiv corrosion, thiab hluav taws-retardant coatings los yog fireproof board cladding rau kev kho mob hluav taws.
Q3: Yuav ua li cas xaiv ntawm portal thav duab thiab steel grid qauv?
Hauv cov dej num ua tau zoo, feem ntau tau txais kev pom zoo ntawm cov ntaub ntawv portal thiab cov kab sib chaws; Lwm cov kev xaiv raug txiav txim raws li cov kev cai sib txawv thiab daim ntawv thov scenarios.
|
Scenario |
Kev pom zoo |
Qhov zoo |
|
Platform Canopies, Depot Warehouses |
Portal Ncej |
Tus nqi tsim nyog, kev tsim kho sai |
|
Ntev-ntev ru tsev ntawm chaw nres tsheb tsev Halls |
Steel Grid Structure |
Ntau yam duab, muaj peev xwm loj dua |
Q4: Dab tsi yog qhov kwv yees siv steel ntawm Portal Ncej Chaw Nres Tsheb Hlau Siv?
Kev siv cov hlau ntawm cov khoom lag luam feem ntau cuam tshuam los ntawm kev ncua, kab sib nrug thiab kev thauj khoom, uas yuav tsum tau txiav txim siab raws li cov cai tshwj xeeb. Cov ntaub ntawv pov thawj yog raws li nram no:
|
Scenario |
Kev siv hlau |
|
Platform Canopies, Me Me Tsheb Depots |
25-35 kg/m² |
|
Kev Txhim Kho Kev Ua Haujlwm, Cov Tsheb Loj Loj |
35-50 kg/m² |
Q5: Puas tuaj yeem kho dua tshiab?

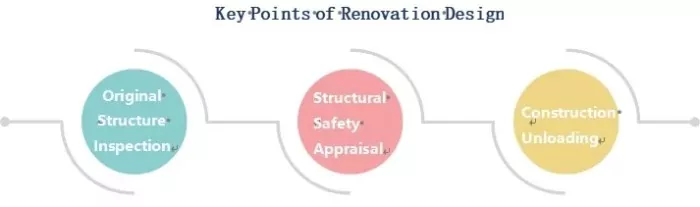

Portal thav duab cov qauv muaj qhov yooj yim rau kev kho dua tshiab, tso cai ntxiv ntawm mezzanines, tshem tawm cov khoom siv thauj khoom, ncua spans thiab nce ntev.
