Thermal Power Plant Steel Ncej

Thermal Power Plant Steel Ncej yog ib qho kev thauj khoom-cov kabmob steel qauv tsim tshwj xeeb rau thermal fais fab nroj tsuag, siv los txhawb cov khoom hnyav xws li boilers thiab turbo-generator teeb, nrog rau kev ua haujlwm ntawm cov tsev loj. EIHE Steel Structure (EHSS) yog cov chaw tsim khoom steel qauv nrog cov thev naus laus zis siab heev. Peb muaj kev paub dhau los hauv cov phiaj xwm hluav taws xob nuclear, uas ua tau raws li cov qauv nruj ntawm thermal fais fab nroj tsuag.

Xa lus nug

Product Description

Thermal Power Plant Steel Ncej feem ntau muaj cov seem hlau thiab steel daim hlau, ua cov khoom tseem ceeb rau kev tsim vaj tsev thiab khoom siv hauv cov nroj tsuag thermal. Cov khoom tsim los ntawm peb lub Hoobkas muaj ntau yam zoo xws li lub zog siab, lub teeb rau tus kheej qhov hnyav, zoo heev seismic thiab cua tsis kam, nrog rau kev tawg-pov thawj thiab corrosion-resistant zog.

Peb cov khoom siv steel qauv yog tsuas yog siv nyob rau hauv ob lub hauv paus system.

▷ Boiler steel qauv: ib qho kev ywj pheej steel qauv siv rau kev ncua thiab txhawb cov khoom tseem ceeb.

▷ Lub zog tseem ceeb hauv tsev steel qauv: lub tsev tsim qauv ua kom haum turbo-generator units, tswj chav thiab lwm qhov chaw.

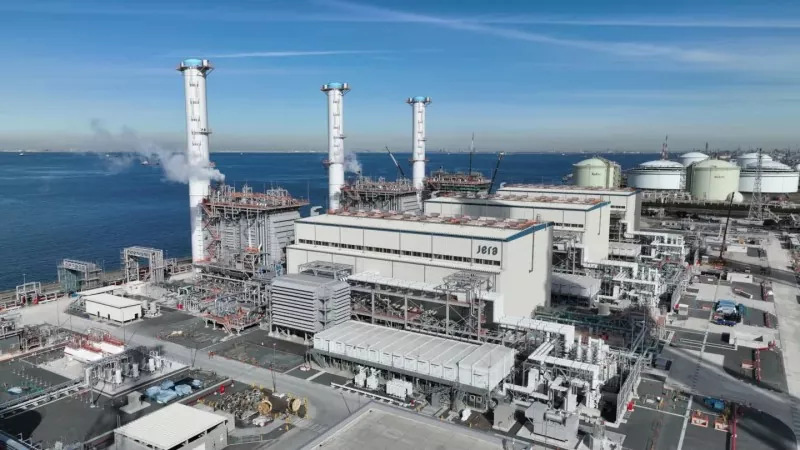

Thermal Power Plant Steel Frame

Thermal fais fab nroj tsuag muaj cov kev cai tshwj xeeb ntawm cov ntaub ntawv, tsim thiab kev tiv thaiv. Yuav kom ua tau raws li cov qauv siab ntawm ob lub tshuab no, EHSS xaiv cov hlau zoo thiab tseem ceeb heev rau kev tsim hluav taws xob thiab kev tiv thaiv corrosion los tsim koj cov Thermal Power Plant Steel Ncej.

Fireproof Txheej	Txheej Thickness	Hluav taws kub Resistance txwv	Nta	Daim ntawv thov Scenario
Intumescent	<5 hli	1.5-2.0 hnub	Tus nto du nrog tej yam zoo nkauj nyhuv	Cov ntawv thov sab hauv lossis cov haujlwm uas muaj qhov xav tau zoo nkauj
Tsis-inumescent	> 10 hli	2.0-3.0 Nws	Rough nto nrog zoo durability	Daim ntawv thov sab nraum zoov lossis thaj chaw muaj kev phom sij siab

Anticorrosive Txheej	Txheej Thickness	Core Function	Txheej
Epoxy Zinc-nplua nuj primer	70-80 hli	Cathodic tiv thaiv	Primer txheej
Epoxy Micaceous Iron Oxide Intermediate Coat	80-125 hli	Barrier rwb thaiv tsev	Nruab nrab txheej
Polyurethane Top Coat / Fluorocarbon Top Coat / Chlorinated Rubber Xim	60-80 m²	Huab cua tsis kam, xov xwm tsis kam thiab kho kom zoo nkauj	Sab saum toj txheej

Thermal Power Plant Steel Frames xav tau cov kev tiv thaiv sib txawv rau cov xwm txheej sib txawv, vim muaj ntau yam kev pheej hmoo siab nyob hauv cov nroj tsuag thermal.

Daim ntawv thov Scenario	Nta	Txheej Txheej Txheej	Tag nrho Thickness
Sab Hauv Tsev Main Fais Fab Lub Tsev	C3 Ib puag ncig	Epoxy Zinc-nplua nuj Primer (60μm) + Epoxy Micaceous Iron Oxide Intermediate Coat (80μm) + Polyurethane Top Coat (80μm)	≥220μm
Sab nraum zoov Boiler Steel Ncej	C5-M Ib puag ncig	Epoxy Zinc-nplua nuj Primer (80μm) + Epoxy Micaceous Iron Oxide Intermediate Coat (120μm) + Fluorocarbon Top Coat (100μm) + Thick Film Fireproof Txheej	≥300μm
Coal Handling System	High Humidity / Abrasion	Epoxy Zinc-nplua nuj Primer (75μm) + High-Build Epoxy Intermediate Coat (150μm) + Abrasion-Resistant Polyurethane Top Coat (100μm)	≥325μm
Flue Duct / Condensation Zone	Muaj zog Acid	High-Temperature Resistant Phenolic Epoxy Primer (100μm) + Phenolic Epoxy Flake Txheej (200μm)	≥300μm

Txheej Txheem Flow

Peb Thermal Power Plant Steel Ncej khoom raug xa los ntawm 5 txheej txheem tseem ceeb:

1. Fabrication

Fabrication

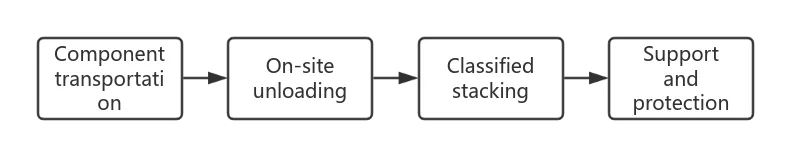

2. Kev thauj mus los & Cia

Transportation & Storage

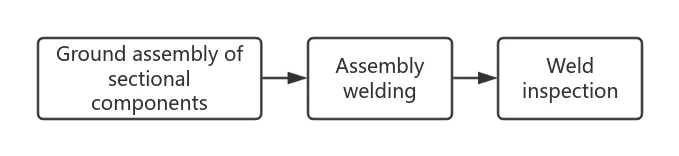

3. Kev sib dhos ntawm qhov chaw

On-site Assembly

4. Hoisting & Installation

Hoisting & Installation

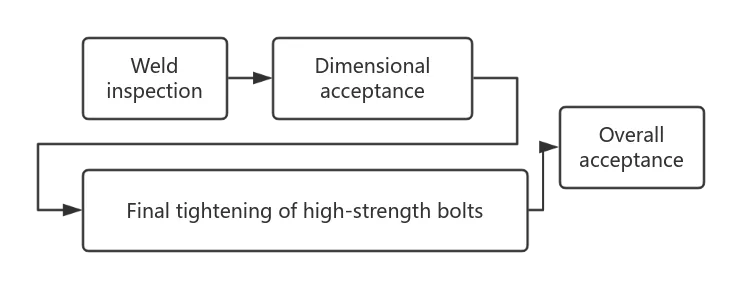

5. Kev lees paub zoo

Quality Acceptance

Thaum ua tiav cov txheej txheem no, koj lub Thermal Power Plant Steel Ncej yuav npaj rau kev pabcuam hauv kwv yees li ob mus rau peb lub hlis.
