Steel Structure Taug kev

Steel Structure Walkway yog cov khoom siv hlau tsim los ntawm EHSS rau cov chaw tsim khoom, chaw lag luam thiab cov chaw pej xeem. Nws yog tsim los muab qhov chaw muaj kev nyab xeeb thiab txhim khu kev qha rau cov neeg taug kev, ua kom cov neeg ua haujlwm muaj kev nyab xeeb thiab ua haujlwm tau zoo. Nrog rau ntau tshaj 20 xyoo ntawm kev koom tes sib sib zog nqus hauv kev lag luam steel qauv, EIHE Steel Structure (EHSS) yog ib qho ntawm cov kws tshaj lij steel qauv tuam ntxhab hauv cov haujlwm.

Xa lus nug

Product Description

Steel Structure Walkway yog tsim los ntawm Q235B / Q355B kub dov seem steel, galvanized steel kav, checkered steel daim hlau thiab / los yog steel grating daim hlau. Cov khoom tsim los ntawm peb lub Hoobkas muaj kev nyab xeeb, tiv thaiv kev ua haujlwm thiab kev tiv thaiv corrosion, nrog rau qhov zoo ntawm kev nyab xeeb thiab kev ntseeg tau, yooj thiab yooj yim, nrog rau kev pab lub neej ntev.

Kev Ua Haujlwm: Kev taug kev taug kev, kev tshuaj xyuas cov khoom siv, kev ua haujlwm tu thiab kev khiav tawm thaum muaj xwm txheej ceev.

Daim ntaub ntawv: Muaj kev cob qhia, pej xeem cov tsev, txuas hniav, tshuaj nroj tsuag, fais fab chaw, offshore engineering, thiab lwm yam.

Cov ntaub ntawv khoom

Khoom	Steel Structure Taug kev
Txoj kev dav	800mm-3000mm
Guardrail qhov siab	1100-1200 hli
Kab sib nrug	≤ 1200mm
Toe board qhov siab	≥100mm
Tus naj npawb ntawm crossbars	≥ 2
Uniform nyob load	3.5kN / ㎡ - 5.0kN / ㎡
Concentrated load	2.5kN - 5.0kN

Kev tiv thaiv corrosion thiab tiv thaiv hluav taws

Khoom		Steel Structure Taug kev
Kev tiv thaiv corrosion
Scenario Corrosion	Kev tiv thaiv	Txheej Thickness	Kev Pabcuam Lub Neej
Sab Hauv Tsev Qhuav Ib puag ncig	Epoxy Zinc-nplua nuj Primer + Topcoat	≥100μm	8-10 xyoo
Nyob sab hauv tsev humid ib puag ncig	Epoxy zinc-nplua nuj primer + intermediate coat + topcoat	≥120μm	10-12 xyoo
Sab nraum zoov / ntug hiav txwv ib puag ncig	Kub-dip galvanizing lossis thermal spray zinc + sealing xim	≥80μm (galvanized txheej)	15-25 xyoo
Chemical corrosive ib puag ncig	Kub-dip galvanizing + heavy-duty anti-corrosion txheej	≥160μm	Ntau tshaj 20 xyoo
Tiv thaiv hluav taws
Scenario	Kev tiv thaiv hluav taws	Kev ntsuas hluav taws kub
Sab Hauv Tsev Evacuation Walkway	Siv nrog nyias / tuab fireproof txheej	≥1.0h - 1.5h
Sab nraum zoov taug kev	Tsis xav tau kev tiv thaiv hluav taws	Tsis tas yuav tsum tau ua
High-rise tsev txuas txoj kev hauv tsev	Applied nrog nyias los yog tuab fireproof txheej	≥1.0h - 2.0h

Txoj kev sib txuas: Ntxiv nrog rau cov txheej txheem tseem ceeb saum toj no, peb Cov Txheej Txheem Hlau Txoj Kev Taug Kev kuj tseem siv txoj hauv kev sib txuas xws li vuam, lub zog muaj zog bolt kev sib txuas, kev sib txuas zoo tib yam bolts, chemical thauj tog rau nkoj bolts / cog tuav. Txoj kev sib txuas tsim nyog raug xaiv raws li cov txheej txheem sib txawv thiab daim ntawv thov scenarios los xyuas kom meej cov khoom ruaj khov.

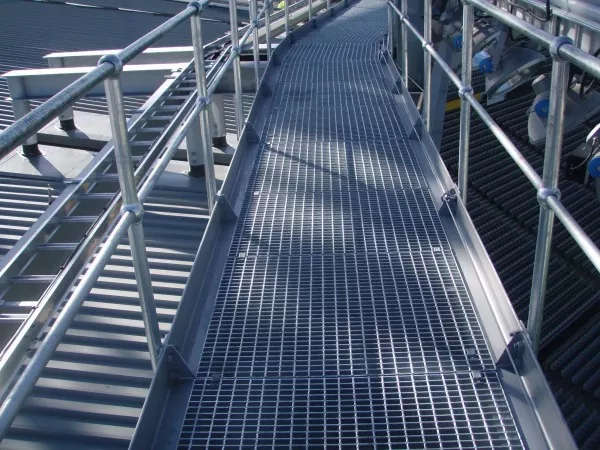

Steel Structure Walkway

Vim Li Cas Xaiv Peb (EHSS)?

Peb qhov zoo:

Professional Design	Kev xam cov khoom hnyav, kev tswj xyuas deflection thiab kev sib koom ua ke hauv kev ua raws li GB / CECS cov lej.
Hoobkas Prefabrication	Hauv tsev Hoobkas nrog CNC ua, tswj tau zoo thiab lav lub sijhawm xa khoom.
High-Qib Corrosion Protection	Muab kub-dip galvanizing, thermal spray zinc thiab lwm yam kev daws teeb meem kom haum rau qhov chaw pabcuam.
Kev teeb tsa ceev ceev	Factory prefabrication ntxiv rau ntawm qhov chaw ntsia liaj qhov rooj, lub sij hawm luv luv installation thiab cuam tshuam tsawg kawg nkaus ntawm kev tsim khoom.
Qingdao Keeb Kwm Advantage	Tus nqi qis steel yuav khoom, yooj yim nkag mus rau qhov chaw nres nkoj thiab kev nplua nuj nyob rau hauv ntug dej hiav txwv tiv thaiv corrosion.
One-Stop Service	Kev sib xyaw tsim, kev ua haujlwm, kev tiv thaiv corrosion, kev thauj mus los thiab kev teeb tsa kev taw qhia rau kev ua haujlwm tsis muaj teeb meem.

Puas yog npaj los tsim ib txoj kev Steel Structure Walkway? Xav tau peb lub tswv yim ua ntej thiab hais lus? Koj tuaj yeem xa mus rau:

Yam khoom	Chav tsev Nqe (USD / m²)
Steel Grating Taug kev	$80 - $120
Checkered Steel Phaj Walkway	$100 - $150
Composite Floor Walkway	$150 - $220
Kub-dip Galvanizing Surcharge	$30 - $50
Staircase	$500 - $2,000

Tiv tauj peb nrog:

Txoj Kev Ua Haujlwm:

□ Kev Saib Xyuas □ Kev Nkag Mus Rau □ Kev Tawm Tsam Thaum Muaj Xwm Ceev □ Cov Khoom Siv Sib Txuas □ Lwm Yam

Txoj Kev Length, Dav, Av Clearance Qhov siab:

Ntev: Dav: Qhov siab:

Tsim Nyob Load / Pedestrian Traffic Density:

N/㎡

Ib puag ncig tej yam kev mob:

□ Sab hauv □ Sab nraum zoov □ ntug hiav txwv □ Chemical Area □ Lwm yam

Auxiliary Facilities:

□ Staircase □ Canopy □ Lwm yam

Ntxiv:

Txais tos kom yuav peb Steel Structure Walkway! Cov ntaub ntawv ib txwm qhia tsis txaus. Yog xav paub ntxiv, thov hu ncaj qha rau peb.
