Steel Structure Coal Storage Warehouse

EIHE Steel Structure yog cov chaw tsim khoom thiab cov chaw tsim khoom ntawm steel qauv thee cia warehouse tsev. Peb muaj 20 xyoo ntawm kev paub hauv cov khoom lag luam thiab tuaj yeem daws teeb meem xws li cov nqi siab, kev ua haujlwm ntev, thiab cov qauv tsis ruaj khov rau cov neeg siv khoom. Lub thee warehouse yog nyob rau hauv daim ntawv ntawm steel qauv, uas tam sim no yog ib qho ntawm feem kev lag luam thiab nrov kev daws teeb meem.

Xa lus nug

Product Description

Lub tuam txhab steel coal storage warehouse hais txog lub tsev warehouse uas steel siv los ua cov khoom siv tseem ceeb. Nyob rau hauv peb steel qauv factories nyob rau hauv Tuam Tshoj, cov hlau yog ua tiav rau hauv cov khoom thiab ces thauj mus rau qhov chaw rau installation.

Cov haujlwm tseem ceeb

● Tiv thaiv plua plav paug

● Tiv thaiv kom tsis txhob muaj qhov tsis zoo ntawm cov thee thiab dej paug uas tshwm sim los ntawm cov dej nag los yaig

● Tiv thaiv cov thee los ntawm kev sib xyaw ua ke

Warehouse structure hom

● Portal ncej

● Daim phiaj qauv

Qhov zoo ntawm EHSS

1. Lub koom haum koom ua ke nrog ntau tshaj 20 xyoo ntawm kev tsim, tsim thiab kev tsim kho, muab kev pabcuam ib-nres rau cov neeg siv khoom thoob ntiaj teb.

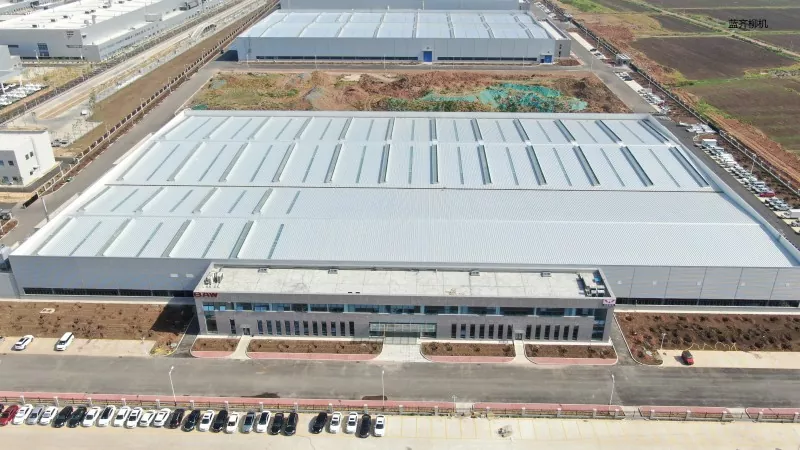

Steel Structure Coal Storage Warehouse

2. Muaj kev paub dhau los hauv cov phiaj xwm warehouse

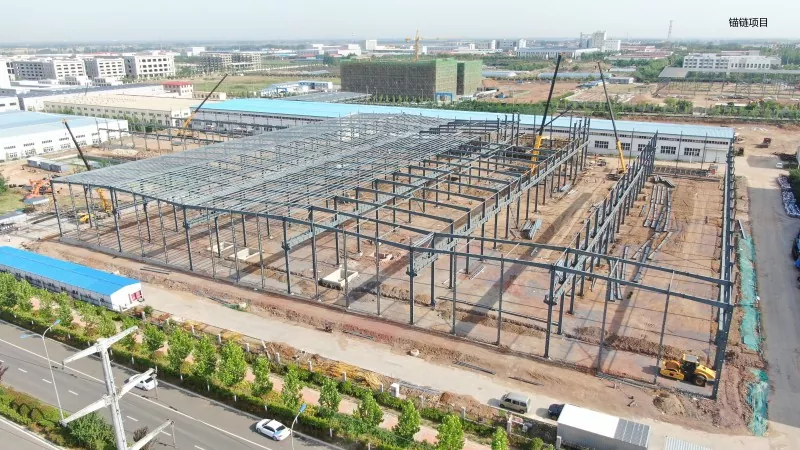

Steel Structure Coal Storage Warehouse

Parameter (Specification)

Khoom npe	Steel qauv coal cia warehouse
Hom	EIHE Steel Qauv
Keeb kwm	Qingdao, Shandong, Suav
Feem ntau span	30-90 m
Kab sib nrug	6-12 m
Common av coal pawg nqes hav	Lub ntuj so lub kaum sab xis ntawm cov thee pawg yog kwv yees li 35 ° txog 40 °, thiab tus nqi tsim yog siv li 30 ° txog 35 °.
Tsim kev pabcuam lub neej	50 xyoo
Cov ntaub ntawv siv steel	Truss ncej: 30 ~ 50 kg / m²; Net ncej: 40 ~ 65 kg / m²
Fireproof txheej thickness	20-35 hli
Txheej txheej	Epoxy zinc-nplua nuj primer (≥ 80μm) + Epoxy hlau oxide nruab nrab xim (≥ 120μm) + Polyurethane / Fluorocarbon topcoat (≥ 80μm)

FAQ

1. Puas yog steel kem ntawm steel qauv coal cia warehouse yuav tsum tau nruab nrog kem-rau-kem txhawb?

Kem-rau-kem kev txhawb nqa yuav tsum tau muab ntsia kom ntseeg tau tias qhov ntev ntev thiab hloov cov kab rov tav.

2. Cov khoom no txuas nrog li cas?

Tom qab peb lub Hoobkas disassembles thiab ua tiav tag nrho cov khoom ntawm tag nrho lub tsev rau khoom, cov khoom thauj mus rau qhov chaw tsuas yog yuav tsum tau txuas nrog siv bolts thiab vuam.

3. Puas yog cov kab ko taw ntawm cov pob zeb pob zeb yuav tsum txuas nrog cov pob qij txha los yog pob khawm pob?

Qhov siab ntawm cov thee pawg hauv lub thee warehouse yog loj, thiab lub hauv paus yuav dais tsis ncaj kab rov tav thrust. Hinged kem taw tsis kis lub sijhawm khoov, uas tuaj yeem zam lub hauv paus kev coj tus kheej dhau lub sijhawm dhau mus thiab ua rau lub hauv paus tsim kev lag luam ntau dua.
