Steel Structure Chemical Plant

Steel Structure Chemical Plant yog ib qho chaw tsim khoom uas muaj kev pheej hmoo siab uas yuav tsum tau ua raws li cov qauv tsim nruj thiab kev nyab xeeb. Raws li lub tuam txhab ua lag luam nyob rau hauv tag nrho kev tsim kho kev lag luam saw ntawm Shandong xeev, EIHE Steel Structure (EHSS) nruj me ntsis tswj ntau lawm kev ruaj ntseg thiab cov qauv, thiab yog koj trustworthy high-tech steel qauv khoom chaw tsim tshuaj paus.

Xa lus nug

Product Description

Steel Structure Chemical Plant yog ib lub tsev tshwj xeeb uas yuav tsum tau ua raws li kev ruaj ntseg tshwj xeeb xws li kev tiv thaiv corrosion, kev tiv thaiv tawg, tiv thaiv hluav taws thiab kev tiv thaiv seepage. Thaum tsim cov khoom zoo li no, peb lub Hoobkas nruj me ntsis tswj cov khoom zoo los ntawm kev xaiv cov khoom siv rau kev tsim khoom thiab kev teeb tsa, kom ntseeg tau tias kev ua haujlwm sai thiab nyab xeeb ntawm cov khoom.

● Kev xaiv cov khoom tseem ceeb

Peb txais yuav high-strength steel ua ke nrog anti-corrosion technologies mus cuag cov kev pab cuam lub neej ntawm peb cov khoom.

✔ Khoom siv hauv paus:

- Rau qhov chaw dav dav: Q235B lossis Q355B carbon structural steel raug xaiv.

- Rau ib puag ncig muaj corrosive heev: huab cua steels xws li Q355NH nyiam dua.

- Rau qhov chaw hauv kev sib cuag ncaj qha nrog corrosive media: 316L lossis 304 stainless hlau feem ntau yog siv.

✔ Seem Tsim:

- Cov seem kaw los yog cov khoom-web seem yog qhov tseem ceeb, nrog kev tswj xyuas nruj me ntsis ntawm phab ntsa tuab.

- Txias-tsim nyias-walled steel seem yog nruj me ntsis txwv tsis pub rau thawj load-bearing Cheebtsam.

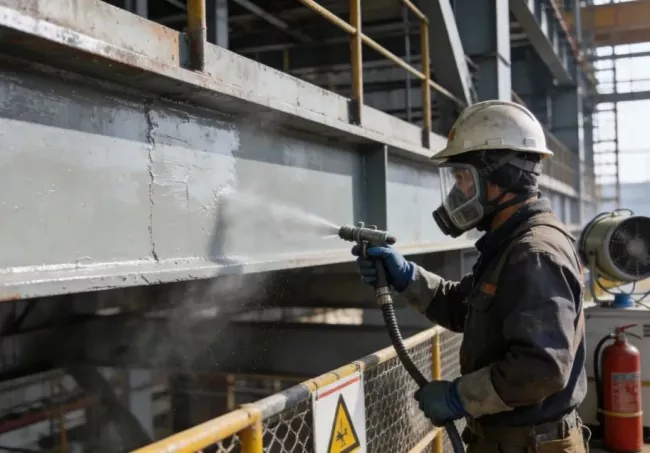

✔ Anti-corrosion Txheej:

- Cov txheej txheem peb txheej yog siv: epoxy zinc-nplua nuj primer, epoxy micaceous hlau oxide nruab nrab lub tsho, thiab polyurethane lossis fluorocarbon topcoat.

- Tag nrho cov zaj duab xis qhuav yuav tsum tsis pub tsawg tshaj 200 μm.

● Cov txheej txheem ntau lawm

Steel Structure Chemical Plants txais cov txheej txheem ntau lawm los xyuas kom meej qhov zoo ntawm cov khoom xa tuaj.

Hom	EHSS
Txheej Txheem Txuas	Ntsiab Lus	Qhov tseem ceeb Parameter
Teem tawm & Kos npe	Welding shrinkage allowance reserved	Longitudinal shrinkage: 0.6-1.0 hli / m; Transverse shrinkage: 1.0-1.5 hli rau ib qho weld pass
Txiav & Txiav	Txiav nto zoo	Flatness ≤ 0.05t (t = phaj thickness) thiab ≤ 2.0 hli; Roughness ≤ 50 μm
Ntug Kev Npaj	Bevel qhov tseeb	Bevel kaum sab xis: 30 ° -35 °, hauv paus ntsej muag: 1.0-2.0 hli, hauv paus qhov sib txawv: 2-3 hli
Drilling	High-strength bolt qhov raug	Qhov txoj kab uas hla kam rau ua: +0.3 ~ + 0.5 hli; Qhov sib nrug ntev: ± 1.0mm
H-beam Assembly	Flange phaj perpendicularity	Inlination ≤ 2.0 mm (qhov siab ≤ 500 mm) lossis ≤ 3.0 mm (> 500 mm)

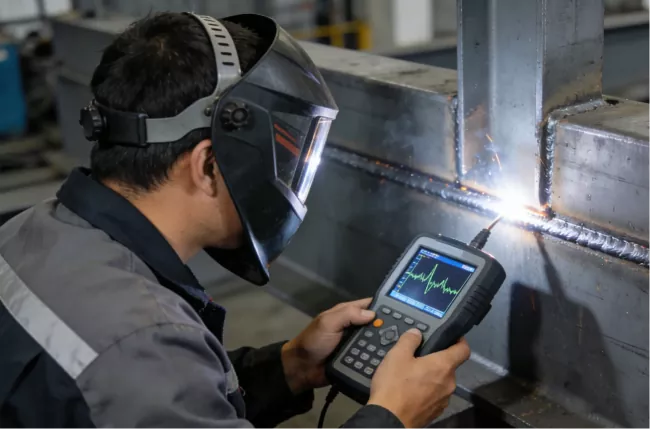

Vuam	Weld zoo chav kawm	Chav Kawm 1 welds: 100% kuaj ultrasonic; Chav Kawm 2 welds: sampling soj ntsuam ≥ 20%
Weld ceg loj	Nruam weld yuav tsum tau	Ib puag ncig zoo corrosive: weld ceg loj ≥ 8 hli
Ua ntej sib dhos	Qhov hla tus nqi	100% dhau tus nqi nrog kuaj pins
Abrasive Blasting	Kev huv huv thiab Roughness	Primer ≥ 60 μm, Intermediate coat ≥ 80 μm, Topcoat ≥ 60 μm, Tag nrho cov zaj duab xis qhuav thickness ≥ 200 μm
Daim ntawv thov txheej	Txheej Thickness Tswj	Primer ≥ 60 μm, Intermediate Coat ≥ 80 μm, Topcoat ≥ 60 μm, Tag nrho cov yeeb yaj kiab Thickness ≥ 200 μm.
Txheej tshuaj xyuas	Dry Film Thickness Sampling Test	85% ntawm cov ntsiab lus ntsuas ≥ tus nqi tsim, qhov ntsuas qhov tsawg kawg nkaus ≥ 85% ntawm tus nqi tsim
