Steel Structure Lag Luam Dav Hlau Terminal

Steel qauv lag luam dav hlau davhlau ya nyob twg (FBO) lub tsev yog ib hom tshiab steel qauv tshav dav hlau lub tsev. Sab hauv ntawm tag nrho cov davhlau ya nyob twg lub tsev feem ntau muaj ntau yam layouts, nrog rau cov qauv-hnub qub-rated lounges, chav sib tham, thiab lwm yam. EIHE Steel Structure yog tus neeg muag khoom thiab chaw tsim khoom ntawm steel qauv tshav dav hlau tej yaam num. Peb tuaj yeem muab cov kev daws teeb meem tshwj xeeb rau cov neeg siv khoom thoob ntiaj teb.

Xa lus nug

Product Description

Steel qauv lag luam dav hlau davhlau ya nyob twg (FBO) lub tsev hais txog lub high-end aviation av chaw uas siv steel qauv raws li lub ntsiab load-bearing moj khaum thiab yog tsim tshwj xeeb los pab cov neeg caij tsheb ntawm kev lag luam dav hlau (cov dav hlau ntiag tug, cov neeg ua haujlwm charter flights) thiab lawv cov kev xav tau kev ua haujlwm. Peb lub Hoobkas suav steel qauv tuaj yeem txais tus qauv tsim + prefabrication qauv. Nws yog ib tug paub tab manufacturers nyob rau hauv Suav teb.

Terminal cheeb tsam layout

● cheeb tsam neeg nrog caij: Private VIP tos chav, chav sib tham ua lag luam, chav da dej, cov kab khiav ceev ceev.

● Cabin cheeb tsam: chav npaj dav hlau, chaw so, chav qhia luv luv.

● Chaw Ua Haujlwm: FBO lub chaw ua haujlwm, kev kuaj xyuas kev nyab xeeb, kev lis kev cai / tawm ntawm ciam teb tshuaj xyuas / cais cais thaj chaw soj ntsuam (yog tias muaj kev ya davhlau thoob ntiaj teb).

● Kev sib txuas ntawm lub dav hlau sawv ntsug: Kev caij nkoj tuaj yeem ua tiav ntawm tus choj dav hlau lossis taug kev. Cov tsheb (nrog rau VIP shuttles) tuaj yeem ncaj qha mus txog qhov nce ntaiv.

Khoom kom zoo dua

● Seismic tsis kam: Cov hlau muaj qhov zoo ductility (elongation tus nqi> 20%), uas tuaj yeem nqus tau lub zog seismic; nws yog lub teeb yuag thiab muaj me me seismic inertia quab yuam; Tom qab av qeeg, qhov deformation tuaj yeem rov qab los thiab nws tsis tuaj yeem ua rau tawg.

● 100% recyclable: Cov hlau rov ua dua tshiab yog ze li ntawm 100%, kev tsim cov khib nyiab yog txo los ntawm kwv yees li 90% piv rau cov pob zeb, thiab cov pa roj carbon emissions txo los ntawm 57%.

● Yooj yim thiab yoog raws: yav tom ntej, yog tias tsim nyog los hloov kho qhov chaw sab hauv lossis nthuav lub tsev, cov qauv hlau yuav yooj yim dua rau kev rhuav tshem, hloov kho thiab ntxiv dag zog.

● Cov qauv tsim niaj hnub: Lub zog muaj zog ntawm cov hlau tuaj yeem txhawb nqa cov cantilever loj, nkhaus qhov chaw, thiab cov duab tsis sib xws, tsim cov qauv tsim qauv niaj hnub thiab dynamic architectural uas muaj kev sib haum xeeb nrog kev siv thev naus laus zis ntawm kev lag luam dav hlau.

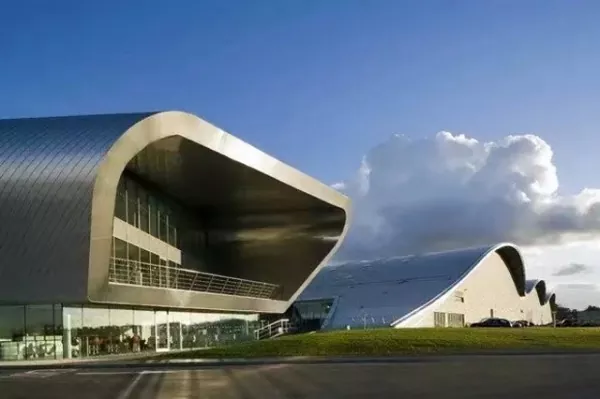

Steel Structure Business Jet Terminal

Yuav Ua Li Cas Xaiv Cov Qauv Txheej Txheem ntawm Steel Qauv Lag Luam Dav Hlau Dav Hlau (FBO) Lub Tsev

System hom	Yam ntxwv	Muaj cov xwm txheej	Yam span
Portal ncej	Kev lag luam tshaj plaws thiab feem ntau siv lub teeb steel qauv. Nws muaj cov kab nrib pleb thiab inclined beams, nrog rau kev faib tawm kom meej. Nws yog fabricated nyob rau hauv lub Hoobkas thiab txuas nrog bolts on-site.	Cov tsev lag luam nruab nrab thiab me me dav hlau dav hlau dav hlau (ib pem teb, ncua ≤ 30 meters), xws li cov tsev FBO ywj pheej.	15-30 m
Planar / space truss	Nws yog tsim los ntawm cov rods ua daim duab peb sab los yog trapezoidal trusses, ua kom loj dua spans thiab qis chord ntawm lub truss tuaj yeem pab txhawb cov khoom siv.	Lub tsev tos loj, hangar thiab qhov txuas ntawm lub tsev davhlau ya nyob twg (nruab nrab ntawm 30 - 50 meters).	30-50 m
Net ncej / net plhaub qauv	Nws yog cov qauv kab sib txuas uas tsim los ntawm ntau cov pas nrig uas muaj nyob rau hauv ib qho qauv, nrog rau kev sib faib quab yuam, siab tawv, thiab cov duab nplua nuj (tuaj yeem ua rau hauv qhov chaw nkhaus).	Lub tsev tseem ceeb ntawm lub dav hlau lag luam loj, uas yuav tsum tau npog cov dav hlau tsis sib xws lossis nrhiav cov duab xws li nthwv dej lossis domes.	40 ~ 80m
Truss-txheej txheem qauv	Nws yog tsim los ntawm nruj qaum chord kab teeb (steel beams) thiab saj zawg zog qis chord cables thiab intermediate pab rods, uas yog heev npaum nrog ib tug me me nqaj qhov siab.	Cov cheeb tsam uas xav tau cov ru tsev nyias nyias (xws li lub ru tsev thickness <0.5 meters) thiab spans> 40 meters, ua ke nrog skylights rau teeb pom kev zoo.	40-60 m
Suspension / ncua kev kawm ntawv cable qauv	Nws siv qhov nro ntawm steel cables los tsim cov ntaub ntawv hnyav heev thiab elegant, tab sis kev tsim kho yog complex.	Lub qhov rooj nkag los yog lub ntuj screen ntawm qhov chaw ua lag luam dav hlau dav hlau lub tsev.	30-50 m
