Steel Pipe Truss Txais Chaw Ua Si

Steel Pipe Truss Adopted Stadium yog steel qauv kev ua kis las uas siv cov raj hlau ncig ua cov khoom tseem ceeb. Nws yog lub ntsiab niaj hnub steel qauv daws teeb meem rau cov tsev ua kis las. EIHE Steel Structure (EHSS) ua kom txaus siab rau cov qauv steel loj loj rau koj. Raws li cov kws tshaj lij steel qauv chaw tsim khoom nrog 20 xyoo ntawm kev paub dav hauv kev lag luam, peb muaj kev ntseeg siab hauv kev ua tau raws li peb cov neeg siv khoom xav tau.

Xa lus nug

Product Description

Cov yeeb nkab steel truss siv nyob rau hauv Steel Yeeb Nkab Truss Adopted Stadium tshem tawm cov qis-chord longitudinal cov tswv cuab thiab cov pob qij txha ntawm qhov chaw thav ntawv, ntxiv kev txhim kho cov khoom siv thaum ua kom zoo nkauj zoo nkauj.

Raws li kev paub txog steel qauv chaw tsim khoom, peb cov khoom muaj ntau qhov zoo ntawm cov tub ntxhais:

✔ 100-meter-theem loj-nruab kem-dawb qhov chaw.

✔ 70% sib zog dua li cov vaj tsev ru tsev.

✔ 30% tsawg dua steel noj piv nrog qhov chaw thav duab.

✔ Cov pob qij txha nyuaj pom tau los ntawm kev sib tshuam kab txiav tshuab.

✔ Kev ua haujlwm seismic zoo heev.

✔ Muab cov yeeb nkab steel kaw kom tsis txhob muaj plua plav.

Piv nrog rau qhov chaw thav duab, Steel Pipe Truss Adopted Stadium tuaj yeem ua tiav qhov loj dua, ntau cov qauv thiab kev lag luam zoo dua.

Kev sib piv	Hlau Yeeb Nkab Truss	Space Frame Structure
Daim ntawv sib koom	Kev sib tshuam Vuam	Bolted Pob / Welded Pob Joints
Kev siv cov khoom siv	Siab	Nruab nrab
Qauv Flexibility	Arbitrary Curves	Pav / Curved Surface
Kev siv hlau	Tsawg	Kwv tij siab
Number of Joints	Tsawg	Ntau
Hom Span	60-360 m	30-120 m

Kev faib tawm ntawm Steel Pipe Truss Structures

Lub steel yeeb nkab truss lug siv nyob rau hauv Steel Yeeb Nkab Truss Adopted Stadium yog ntxiv muab faib ua plaub pawg loj.

Hom	Tshaj	Daim ntawv thov
Planar Steel Yeeb Nkab Truss	60-120 m	Pa gymnasiums, kev cob qhia halls
Spatial Steel Pipe Truss	80-200 m	Stadium canopies, loj-scale kev sib tw venues
Hlau Yeeb Nkab Arch Truss	100-360 m	Super loj-span loj chaw ntau pob
Ob txoj kev Diagonal Truss	80-120 m	Ru tsev ntawm square/circular stadiums

Kev teeb tsa khoom.

Qhov loj-span tsim ntawm Steel Yeeb Nkab Truss Adopted Stadium nthuav qhia qee qhov kev sib tw rau nws qhov kev teeb tsa.

Txoj Kev Txhim Kho	Txoj Cai Xaiv
Segmental Lifting + High-Altitude txuas	Super-ntev Cheebtsam, txwv qhov chaw
Hauv pem teb Assembly + Integral Lifting	Qhib qhov chaw, nruab nrab qhov hnyav ib truss
Ob-Truss Combined Lifting	Feem ntau ntawm cov trusses
On-Site & Off-Site Hnyav Crane Lifting	Super loj-span arch trusses

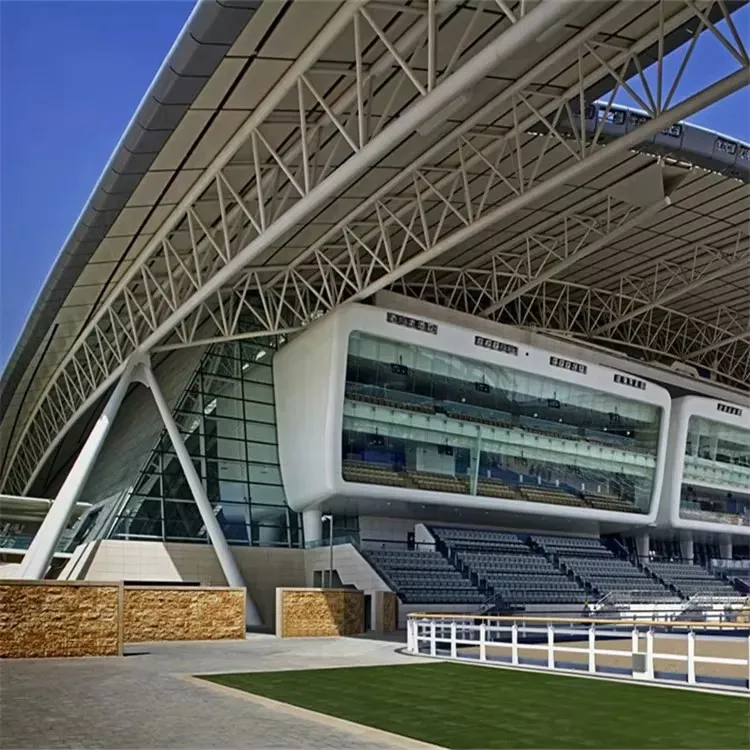

Steel Pipe Truss Adopted Stadium

Ntsiab Technology.

Txawm hais tias kev teeb tsa ntawm Steel Pipe Truss Adopted Stadium nthuav tawm qee qhov kev cov nyom, cov thev naus laus zis peb muaj txaus los daws cov teeb meem feem ntau.

▷ Hoisting Simulation:

Cov haujlwm hoisting yog txiav txim siab los ntawm lub computer simulation thiab kev tshawb nrhiav ntawm qhov chaw.

▷ Kev them nyiaj yug ib ntus:

Kev txhawb nqa ib ntus yog tsim los pab txhim kho; lawv tuaj yeem raug tshem tawm lossis khaws cia tom qab ua tiav.

▷ Vuam:

Peb muaj Class 1 vuam tshuab los xyuas kom meej vuam zoo thiab txo cov teeb meem installation.

▷ Unloading Technology:

Cov qauv steel unloading ntawm qhov chaw loj yog nqa tawm nyob rau hauv 5 theem, nrog ib tug deviation tsis tshaj 10 millimeters.

Peb muaj EPC daim ntawv cog lus kev tsim nyog, ua rau peb muab kev pabcuam rau koj los ntawm kev tsim khoom mus rau kev teeb tsa. Xaiv peb Steel Pipe Truss Adopted Stadium, thiab peb yuav yog koj tus khub txhim khu kev qha.

EPC daim ntawv cog lus kev tsim nyog

EPC general contracting qualifications
