Steel Ncej Warehouse Supermarket

Cov steel ncej warehouse supermarket tsev yog ib daim ntawv tsim tshwj xeeb tsim los ntawm peb Suav steel qauv Hoobkas rau warehouse-style supermarkets. Nws ua ke cov yam ntxwv ntawm engineering ntawm "steel thav duab" thiab kev ua haujlwm ntawm "warehouse-style supermarkets". Peb steel ncej siv tshuab tau muab kev daws teeb meem rau ntau tus neeg siv khoom hauv ntau lub teb chaws thiab cheeb tsam. Peb yog cov chaw tsim khoom thiab cov chaw tsim khoom nrog ntau tshaj 20 xyoo ntawm kev paub.

Core qauv

Hlau ncej

● Cov ntaub ntawv tseem ceeb: Cov khoom siv thauj khoom tseem ceeb xws li cov kab, kab teeb, thiab lub ru tsev trusses tag nrho siv cov kub dov H-shaped steel, square steel kav, thiab lwm yam.

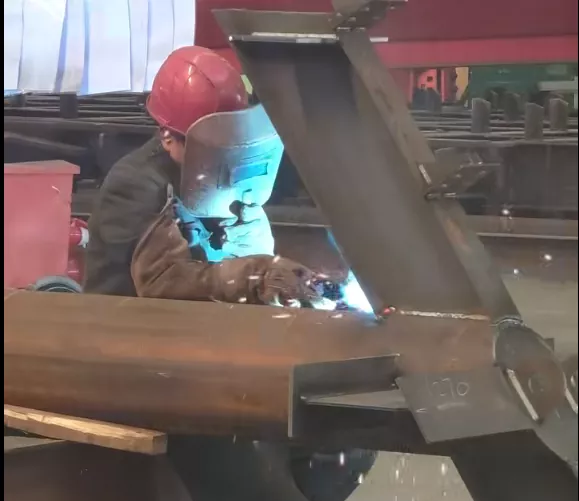

● Kev sib txuas txoj kev: Cov khoom sib dhos yog sib sau ua ke ntawm qhov chaw los ntawm kev siv lub zog siab, vuam, thiab lwm yam.

● Cov txheej txheem kaw: Cov phab ntsa sab nrauv thiab lub ru tsev feem ntau yog siv cov sandwich panels lossis profiled steel sheets es tsis txhob siv cov phab ntsa cib los yog cov phab ntsa pob zeb.

Core muaj nuj nqi

Warehouse-style Supermarket

● Qhov siab pom tseeb: thawj pem teb ntawm cov qauv steel warehouse-style supermarket feem ntau muaj qhov siab ntawm 8-12 meters lossis siab dua. Siv cov rhawv qib siab rau kev cia khoom ntsug, ua kom muaj peev xwm ntau tshaj plaws. Forklifts tuaj yeem txav mus los ntawm cov rhawv dawb los ua haujlwm ntxiv. Nws muab cov neeg siv khoom qhib thiab tsis muaj kev ntxhov siab txog kev yuav khoom.

● Kev sib xyaw ua ke: Sab hauv ntawm lub tsev feem ntau muab faib rau hauv thaj tsam pem hauv ntej thiab sab nraub qaum, tsis muaj qhov nyuaj ntawm lawv. Cov txee siab lawv tus kheej yog ob qho tib si tso saib thiab chaw cia khoom. Cov neeg siv khoom tuaj yeem soj ntsuam cov txheej txheem ntxiv, txhim kho qhov kev nkag siab ntawm "ntau ntau, tus nqi zoo" ntawm lub tsev khaws khoom.

● Kev ua haujlwm ntxiv: Cov chaw thauj khoom tshwj xeeb thiab chaw nres tsheb loj sab nraum zoov yuav tsum tau tsim.

Cov qauv tsim

Steel ncej warehouse supermarkets mas txais yuav cov nram qab no ob structural systems, los yog ib tug ua ke ntawm ob:

Cov khoom lag luam

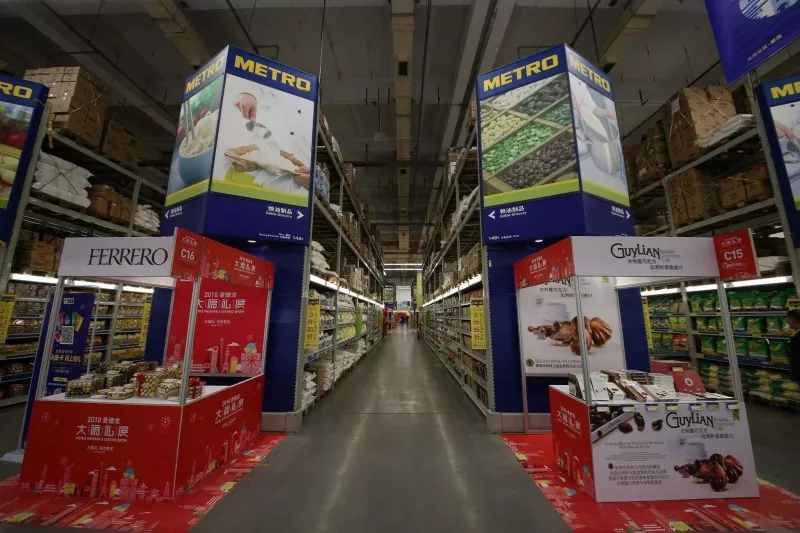

Metro (METRO) - Tus pioneer ntawm German Steel ncej warehouse supermarkets

● Cov Txheej Txheem Txheej Txheem: Portal thav duab lub teeb steel qauv, nrog kev ncua feem ntau yog li ntawm 24 mus rau 30 meters, thiab kab sib nrug ntawm 6 mus rau 12 meters.

● Qhov chaw sab hauv: Net qhov siab ntawm 8 mus rau 10 meters, cov txee siab ncaj qha mus txog li ntawm 7 meters, thiab forklifts tuaj yeem ua haujlwm ywj pheej ntawm cov rhawv.

● Kev txheeb xyuas qhov tshwm sim: Sab nrauv façade feem ntau yog xim xiav thiab dawb xim hlau sandwich panels, nrog lub cim "METRO" tseem ceeb ntawm phab ntsa sloping, thiab lub platform thauj khoom (qhov siab tib yam li lub txaj tsheb) yog muab.

● Pem teb: Cov pob zeb ua haujlwm hnyav, nrog lub thickness ntawm kwv yees li 250mm, thiab qhov saum npoo yog hardened, muaj peev xwm ncaj qha bearing forklifts thiab loaded tag nrho pallets.

Ua tiav cov txheej txheem tsim khoom ntawm cov khoom

Kev tsim cov txheej txheem ntawm kev ua tiav Steel ncej warehouse supermarket feem ntau suav nrog cov kauj ruam hauv qab no:

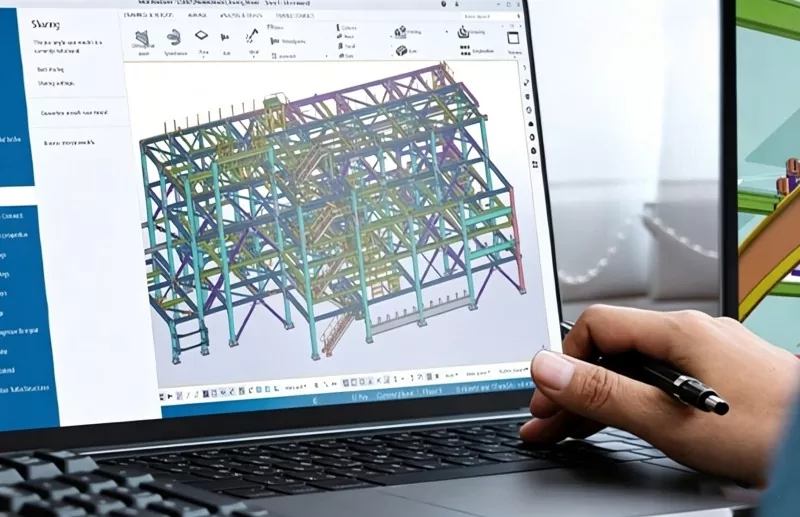

1. Tsim kev sib sib zog nqus

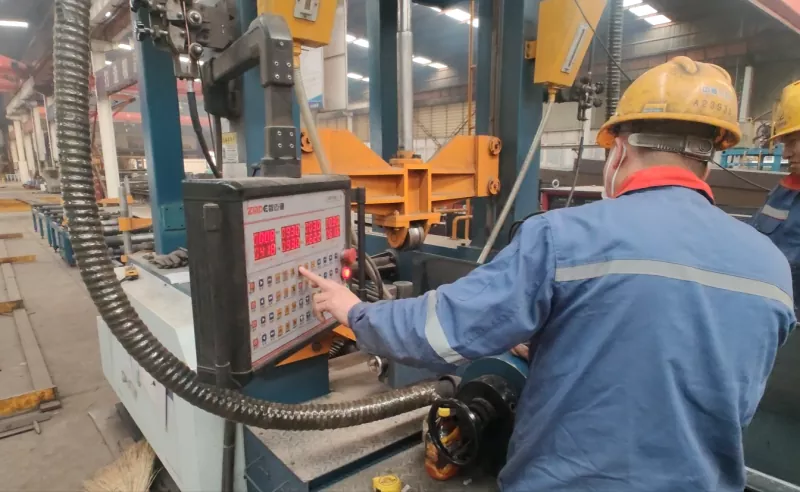

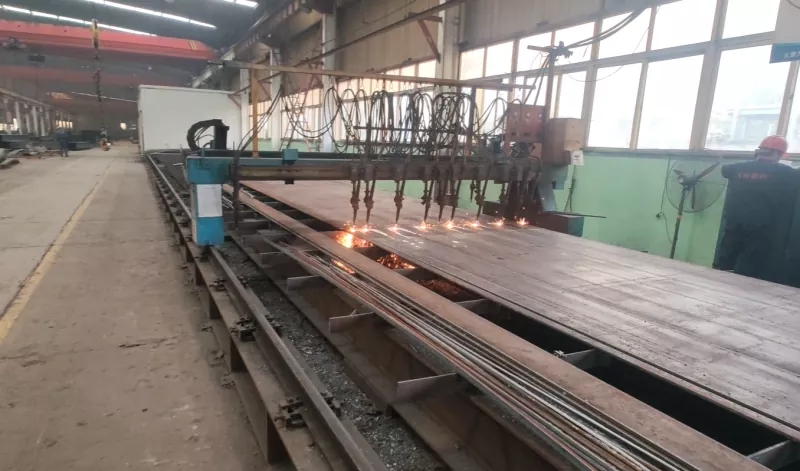

2. Txiav thiab ua

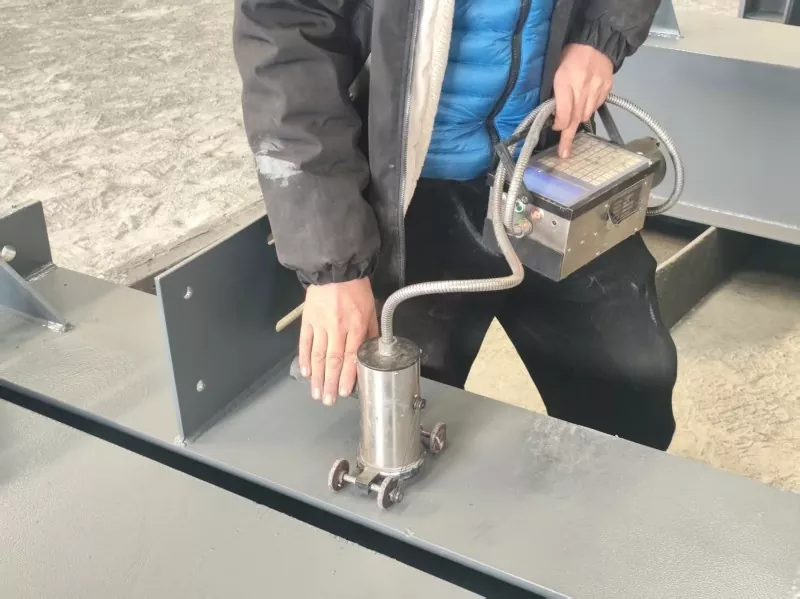

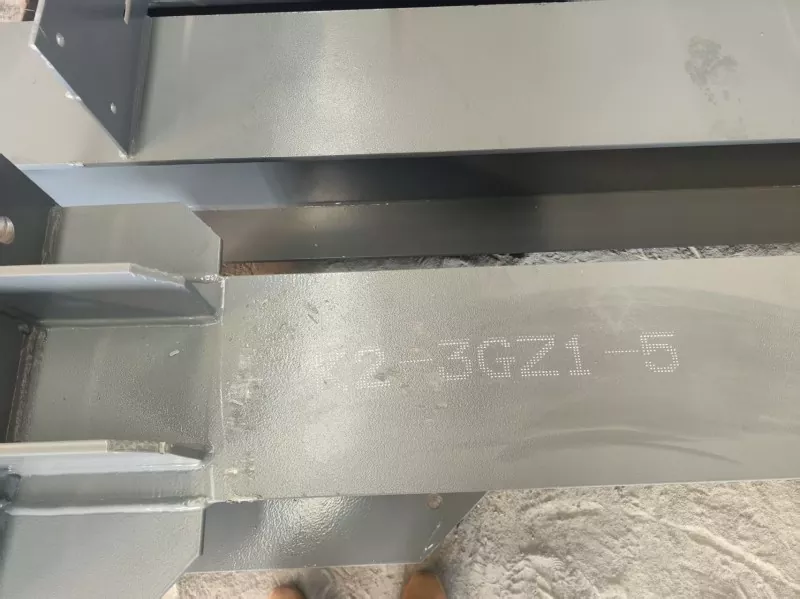

3. Laser luam ntawv ntawm cov zauv feem

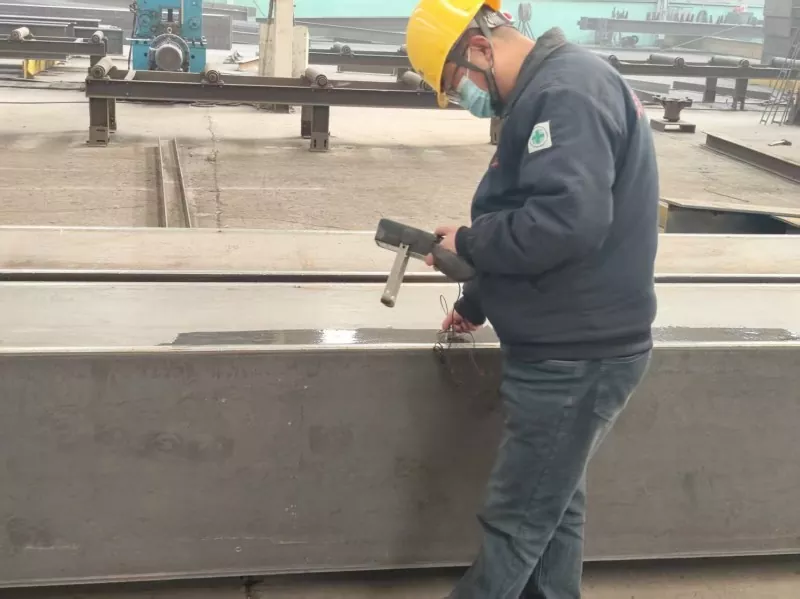

4. Kev soj ntsuam zoo

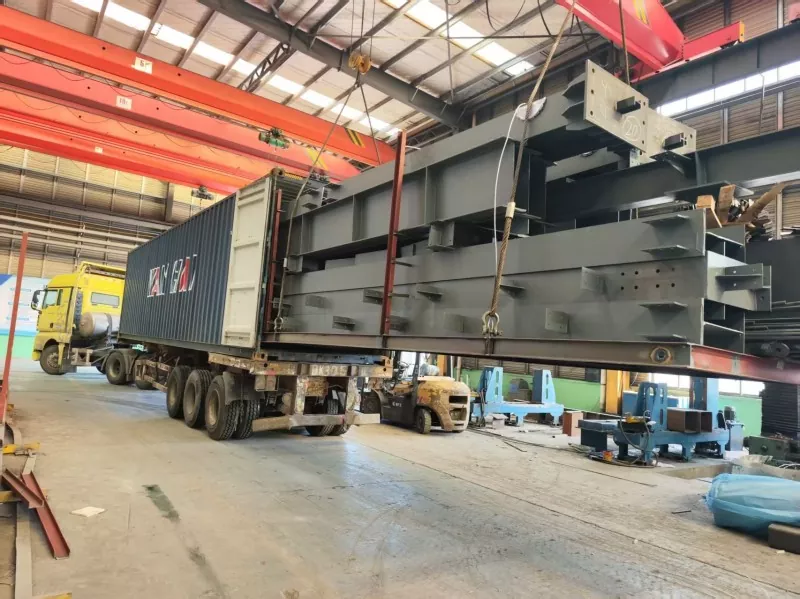

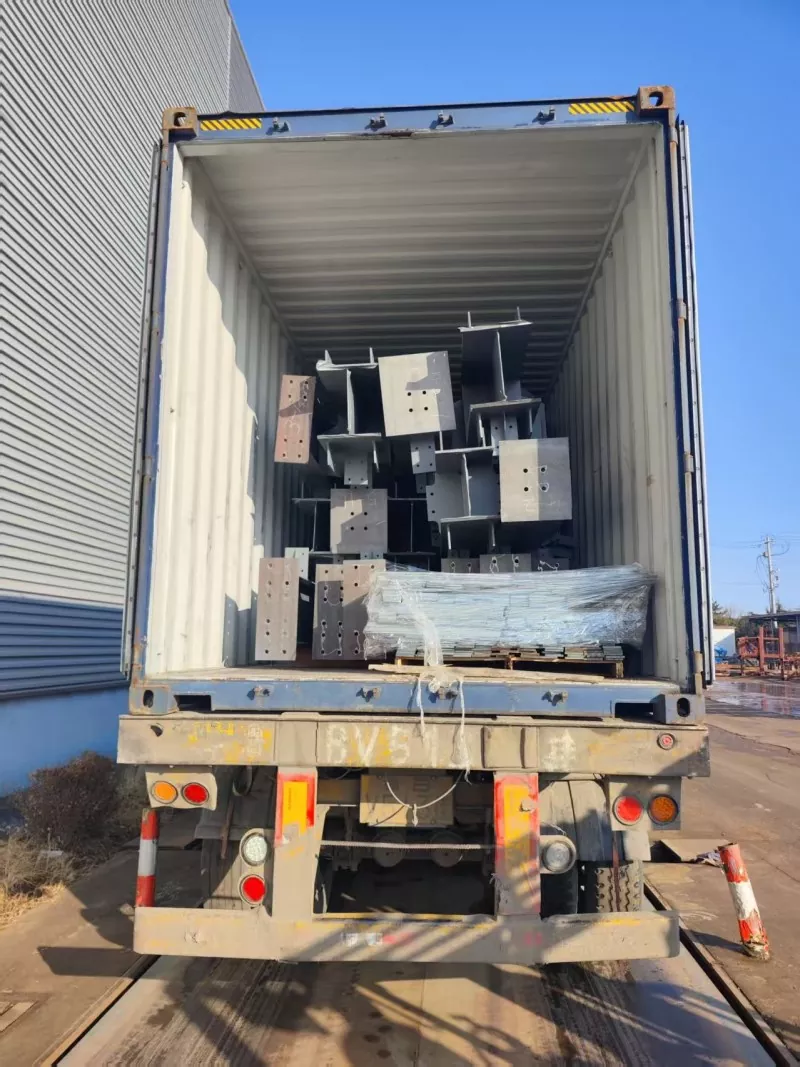

5. Ntim thiab Shipping

Cov Lus Qhia Tseem Ceeb Node Design

Steel kem yog lub ntsiab load-bearing Cheebtsam ntawm Steel ncej warehouse supermarkets. Cov tswv yim tsim qauv rau cov kab hlau muaj xws li cov hauv qab no:

● Seem daim ntawv: Feem ntau, welded los yog kub dov H-zoo li tus hlau (wide flange series) yog siv. Qee lub sij hawm, cov kab ntawv zoo li lub thawv los yog cov kab raj puag ncig yog siv rau hauv cov chaw hnyav.

● Kab sib nrug: Lub longitudinal (raws li qhov ntev ntawm lub khw muag khoom) kab sib nrug feem ntau yog 6 mus rau 12 meters, uas yog sib koom tes nrog lub txee module thiab qhov dav ntawm lub forklift passage.

● Kem hauv paus: Feem ntau nruj kev sib txuas kem hauv paus (kos los yog nthuav cov thauj tog rau nkoj bolt), uas hloov lub sijhawm khoov thiab axial rog; lawv yuav tsum tau tiv thaiv cua loads thiab kab rov tav quab yuam los ntawm cranes (yog tias muaj).

● Kev kho tshwj xeeb: Hauv qab 1.5 mus rau 2.0 meters ntawm kab hauv qab, pob zeb feem ntau yog siv sab nraud lossis tiv thaiv kev sib tsoo lub kaum sab xis kom tiv thaiv kev puas tsuaj los ntawm kev cuam tshuam forklift.
