Prefabricated Steel Tsim

Prefabricated steel siv yog hais txog ib hom steel qauv tsev tsim nyob rau hauv lub hom ntawm Hoobkas prefabrication ntxiv rau ntawm qhov chaw installation, nrog ceev los ua ke raws li nws cov ntsiab kom zoo dua. EIHE Steel Structure (EHSS) yog cov kws tshaj lij steel qauv chaw tsim khoom. Peb muaj peb lub hom phiaj ywj pheej EIHE thiab tau txuas ntxiv nthuav tawm lub npe cuam tshuam ntau tshaj 20 xyoo ntawm kev txhim kho.

Xa lus nug

Product Description

Prefabricated Steel Kev Tsim Kho nta kev ua haujlwm siab, kev tiv thaiv ib puag ncig thiab kev ua haujlwm zoo, ua rau nws yog tus sawv cev ntawm cov tsev niaj hnub.

Nws cov yam ntxwv ntawm kev tsim kho sai thiab ceev commissioning hloov mus rau qhov kev sib tw ceev ceev ntawm lub sijhawm tam sim no. Lub caij no, nws cov pa roj carbon tsawg, eco-friendly, recyclable thiab reusable zog raws li txoj kev loj hlob ntawm lub sij hawm.

Cov yam tseem ceeb uas txhawb nqa qhov zoo xws li:

▷ Standardized prefabrication thiab ntau lawm hauv factories

▷ Kev sib txuas ceev ntawm qhov chaw ntawm bolting lossis vuam

▷ Kev ua tiav ib txhij ntawm kev tsim khoom ntawm lub Hoobkas thiab kev tsim kho ntawm lub hauv paus.

Tswv yim Differentiation:

Tib yam khoom muaj cov npe sib txawv hauv cov xwm txheej sib txawv, tab sis nws cov ntsiab lus tseem ceeb tseem nyob ib puag ncig. Tib yam siv rau peb cov khoom.

Tswv yim	Ua kom pom tseeb
Prefabricated Steel Tsim	Txoj kev tsim khoom
Pre-Engineered Hlau Tsev	Tus nqi optimization thiab kev ua tau zoo
Lub teeb Gauge Steel Tsim	Lub teeb yuag profiles
Modular Steel Tsim	Modular units + Hoobkas kev koom ua ke + on-site stacking

Tsis tas li ntawd, peb cov khoom suav nrog ntau yam kev siv tshuab, nrog rau cov hom tseem ceeb hauv qab no:

Hom	Pem teb	Daim ntawv thov
Lub teeb Gauge Steel System	1–3	Villas, chaw ua haujlwm ib ntus, tom qab muaj kev puas tsuaj rau lub tsev
Portal Ncej System	1–2	Industrial Rhiav, warehouses, aircraft hangars
Multi-storey Frame System	≤ 8	Cov tsev ua haujlwm, tsev kho mob, tsev kawm ntawv
Modular Steel Qauv	≤ 6	Tsev so, chav tsev, mobile cabin tsev kho mob

Piv nrog rau cov tsoos cam khwb cia-nyob rau hauv-qhov chaw ua vaj tse thiab on-site welded steel qauv vaj tse, peb cov khoom siv Prefabricated Steel muaj qhov zoo tshaj plaws.

Kev sib piv	Prefabricated Steel Qauv	Cast-in-place Concrete	On-site Welded Steel Structure
Tsim Cycle	3-4 lub lis piam	4-6 lub lis piam	3-5 lub lis piam
Processing & Installation Cycle	4-6 lub lis piam	10-14 hnub	8-12 lub lis piam
On-site Labor Demand	40%	100%	70%
Kev ua haujlwm ntub dej	≈ 0	100%	Tsawg kawg
Cov khoom poob tus nqi	3-5%	8-12%	5-8%
Renovation & Expansion Flexibility	Zoo heev	Nyuaj heev	Nyuaj heev
Tus nqi tag nrho lub neej voj voog	75-85%	100%	90-95%

Cov txheej txheem kev tsim kho, kev ua tau zoo thiab kev tsim vaj tsev zoo ntawm peb cov khoom siv Prefabricated Steel Siv tau ua kom lawv sawv ntsug nyob rau hauv lub neej yav tom ntej ntsuab thiab txuag hluav taws xob txoj kev loj hlob, thiab tuav ib qho chaw ruaj khov nyob rau hauv lub complex thiab puas-hloov kev lag luam ib puag ncig.

Txheej Txheem Flow

Peb cov khoom khav theeb zoo kawg li nrog rau kev tsim kho ceev ceev, tsis tshua muaj nqi, kev nyab xeeb thiab kev tiv thaiv ib puag ncig, yog li tau siv dav hauv cov tsev lag luam, cov tsev lag luam, cov pej xeem & cov phiaj xwm vaj tse, cov tsev tshwj xeeb thiab cov qauv ib ntus. Hauv paus, cov txiaj ntsig zoo no tau txais txiaj ntsig los ntawm cov khoom lag luam zoo lisophisticated manufacturing technology.

Cov txheej txheem tsim khoom ntawm Prefabricated Steel Siv yog tsuas yog muab faib ua plaub theem. Lawv yog Theem Tsim & Deepening Stage, Factory Prefabrication Stage, Transportation & Foundation Construction Stage, thiab On-site Installation & Handover Stage. Qhov thib peb theem tuaj yeem ua tiav ib txhij nrog theem thib ob.

Kauj Ruam 1: Tsim thiab sib sib zog nqus

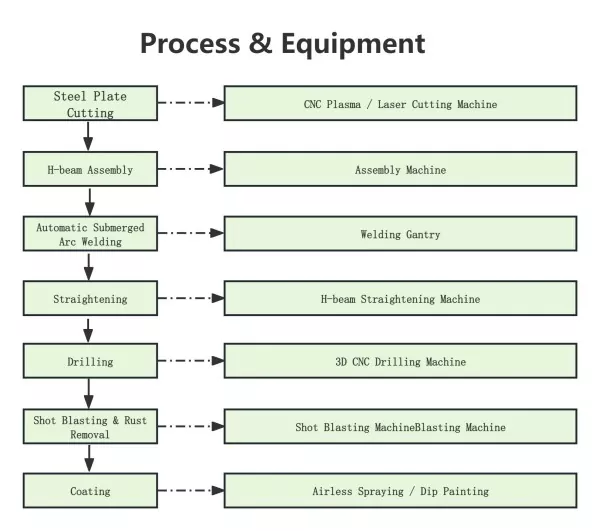

Theem 2: Lub Hoobkas Prefabrication

Thaum lub sij hawm tsim khoom ntawm Prefabricated Steel Siv cov khoom, kev tsim kho ntawm qhov chaw ua haujlwm ib txhij. Nyob rau theem no, peb txais CNCkhoom sivkom ua tiav high-precision txiav thiab kev tsim khoom.

Theem 3: Kev thauj mus los thiab kev tsim kho hauv paus

Nyob rau theem no, peb ntim koj cov khoom siv Prefabricated Steel Siv nrog kev tshaj lij steel thav duab, ntoo cushion blocks thiab waterproof wrapping. Cov thawv ntim tau thauj mus rau qhov chaw nres nkoj los ntawm cov tsheb thauj khoom flatbed rau kev xa khoom.

Raws li kev tsim kho hauv paus, lub ntsiab lus tseem ceeb yog tsim cov hauv paus ywj pheej lossis cov hauv paus hauv paus thiab embed thauj tog rau nkoj bolts ua ntej.

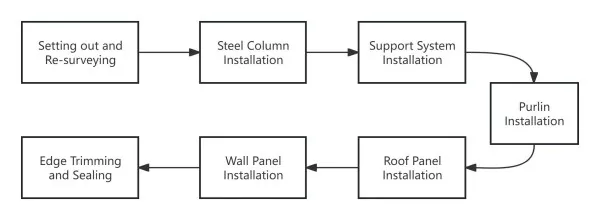

Kauj Ruam 4: Kev teeb tsa thiab xa tawm ntawm qhov chaw

Thaum kawg, Prefabricated Steel Kev Tsim Kho tuaj yeem ua tiav thiab lees txais tom qab 8 theem kev teeb tsa.
