Fais fab nroj tsuag Steel Structure

Fais fab nroj tsuag Steel Structure yog tsuas yog siv nyob rau hauv lub core thav duab ntawm fais fab nroj tsuag vaj tse thiab lub ntsiab load-bearing qauv ntawm cov khoom.

Peb lub Hoobkas muab kev txhawb nqa thiab kaw cov qauv rau cov khoom siv tseem ceeb hauv cov tsev tsim hluav taws xob tseem ceeb, thiab tseem koom nrog kev tsim cov qauv hlau rau cov cua txias loj thiab cov qauv steel prefabricated rau cov chaw ua haujlwm.

Piv nrog rau cov qauv pob zeb tsoos, peb cov khoom muaj kev cuam tshuam zoo.

✔ Cov qauv tsim muaj zog thiab lub teeb tuag hnyav nrog kev ua tau zoo heev seismic thiab cua-resistant.

✔ Lub Hoobkas prefabrication thiab kev sib dhos ntawm qhov chaw ua kom muaj kev tsim kho siab, txo lub sijhawm tsim kho ntau dua 50%.

✔ Tom qab tiv thaiv corrosion thiab hluav taws kub-retardant txheej kho, nws tuaj yeem tiv taus qhov chaw hnyav xws li kub, plua plav thiab tshuaj lom neeg corrosion hauv cov nroj tsuag hluav taws xob, thiab hloov tau zoo rau cov kev xav tau ntawm cov nroj tsuag.

✔ Spatial layout yooj yim nrog tsawg nyuaj hauv kev nthuav dav tom qab thiab kho dua tshiab.

✔ Cov khoom siv hauv tsev steel yog 100% rov ua dua nrog xoom siv pov tseg, uas yog ntsuab thiab ib puag ncig tus phooj ywg, ua raws li cov qauv tseem ceeb ntawm kev txhim kho niaj hnub.

Niaj hnub nimno fais fab nroj tsuag steel qauv mas txais yuav hyperboloid ib txheej latticed plhaub spatial qauv thiab latticed lug. Nrog rau cov thev naus laus zis paub tab thiab cov txheej txheem meej, lawv ua haujlwm sai thiab ua haujlwm, pab txhim kho koj cov txiaj ntsig kev lag luam.

Certification thiab Quality Assurance

EHSS yog cov kws tshaj lij steel qauv tsim khoom. Peb yog lub teb chaws high-tech enterprise thiab muaj lub xeev-theem prefabricated kev tsim kho hauv paus. Tshaj li 20 xyoo dhau los, peb tau txais ntau yam kev tsim nyog hauv tsev thiab txawv teb chaws, nrog rau ntau tshaj 180 patented technologies.

Ntawm lawv, peb cov txuj ci txawv teb chaws tau lees paub los ntawm Tebchaws Europe thiab Tebchaws Meskas, ua rau peb muab cov khoom lag luam zoo thiab cov thev naus laus zis siab heev rau cov neeg siv khoom thoob ntiaj teb.

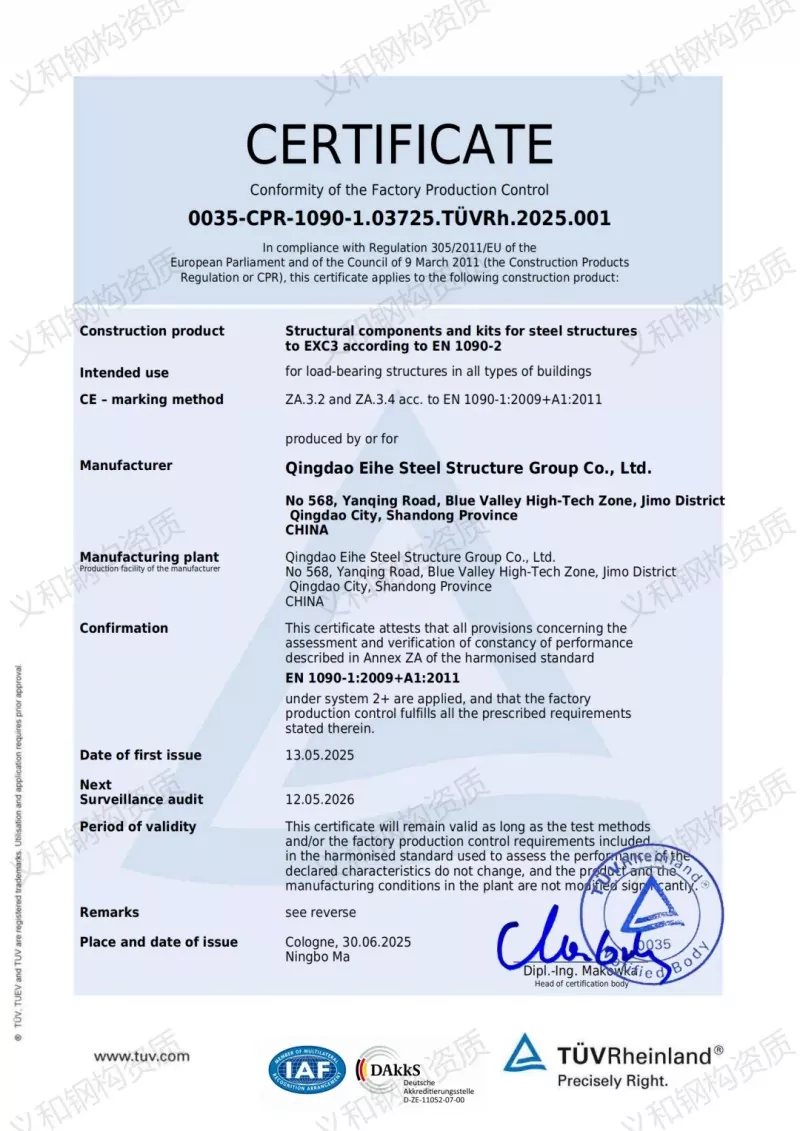

▷ EN1090 Ntawv pov thawj (European Standard)

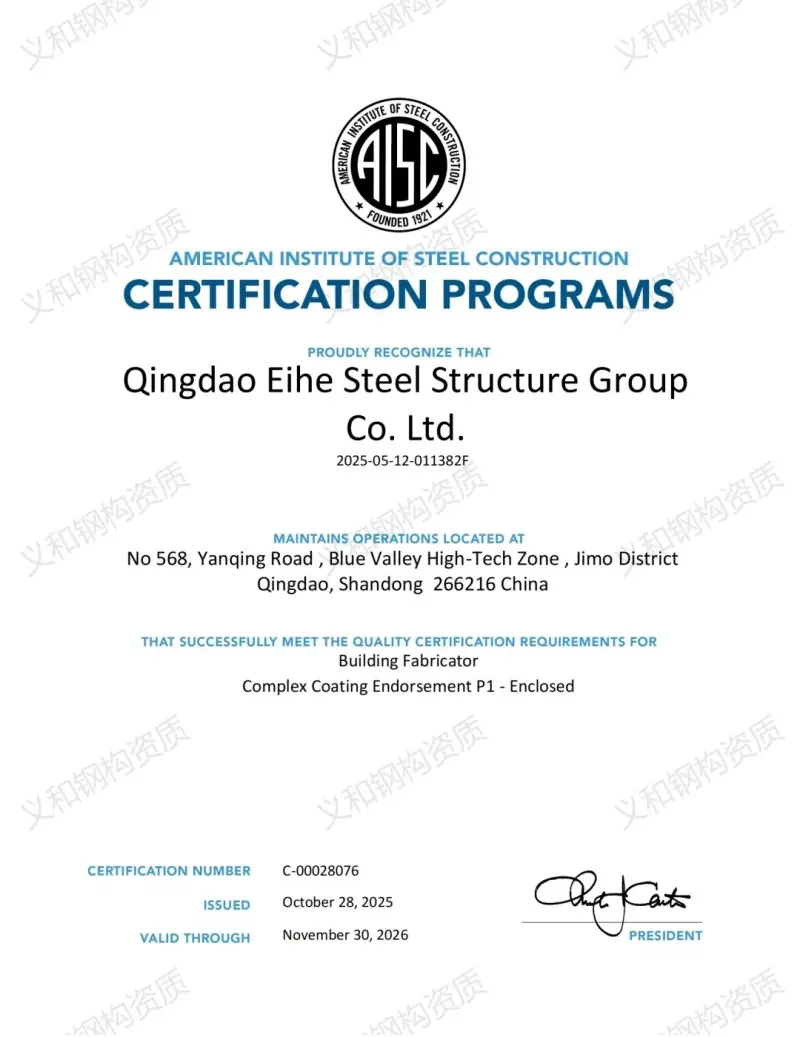

▷ AISC Certification (American Standard)

Peb ua raws li kev tswj hwm nruj ntawm cov txheej txheem tseem ceeb los xyuas kom meej tias koj Cov Khoom Siv Hluav Taws Xob Steel Structure ua tau raws li cov qauv kev tshaj lij.

● Kev kho deg thiab tiv thaiv corrosion

▷ Derusting Qib: Sa2.5

▷ Txheej Txheej Txheej:

Primer: Epoxy Zinc-nplua nuj primer, qhuav zaj duab xis thickness 80μm

Intermediate Coat: Epoxy Micaceous Iron Oxide Intermediate Coat, qhuav zaj duab xis thickness 100μm

Sab saum toj txheej: Polyurethane / Fluorocarbon Top Coat, qhuav zaj duab xis thickness 80μm

Tag nrho cov zaj duab xis qhuav thickness ≥ 260μm

● Cov ntaub ntawv zoo:

✔ Cov ntaub ntawv pov thawj zoo thiab cov ntaub ntawv rov qab tshuaj xyuas

✔ Vuam txheej txheem Specifications thiab Welder ntaub ntawv

✔ Cov ntawv ceeb toom tsis muaj kev puas tsuaj

✔ Dimension Inspection Records

✔ Cov ntaub ntawv tshuaj xyuas txheej txheej

✔ Lub Hoobkas Txais Daim Ntawv Pov Thawj

Nyob rau hauv luv luv, los ntawm kev xaiv los koom tes nrog peb, peb yuav tsim high-zoo fais fab nroj tsuag steel qauv rau koj.
