Multifunctional Steel Structure Tsev

Lub ntsiab qauv ntawm Multifunctional Steel Structure Building yog tsim los ntawm cov khoom siv hlau. Cov khoom tseem ceeb yog cov kab hlau steel thiab cov kab hlau, uas txuas rau ib leeg los ntawm bolts thiab vuam, thiab lawv yog cov khoom siv thauj khoom loj. Lub multi-functionality ntawm hom tsev no yog feem ntau ncaj qha cuam tshuam nyob rau hauv nws ntsug composite. Nws tuaj yeem sib xyaw cov kev xav tau sib txawv ua ke. Piv txwv li, cov khw muag khoom, chaw ua haujlwm, tsev so, cov khw noj mov, thiab lwm yam tuaj yeem muab tso rau hauv lub tsev steel qauv. Cov xwm txheej siv sib txawv tuaj yeem hloov kho tau tsim raws. Tsis tsuas yog nws txuag chaw hauv av, tab sis nws kuj txhim kho kev ua haujlwm tag nrho. Ntxiv nrog rau kev sib koom ua ke hauv nroog complexes, lawv kuj tuaj yeem sib sau ua ke rau hauv cov chaw thauj mus los, cov chaw ua si thiab cov chaw ua si, thiab lwm yam.

Tej xwm txheej

1.Jewel Changi tshav dav hlau hauv Singapore

Lub loj loj steel daim phiaj dome npog cov hav zoov sab hauv tsev thiab chaw thauj mus los, ua tiav kev sib koom ua ke ntawm cov toj roob hauv pes thiab tshav dav hlau ua haujlwm.

14,000 tons ntawm cov qauv hlau tau raug teeb tsa los ntawm BIM thev naus laus zis, txo qhov cuam tshuam ntawm kev ua haujlwm ntawm chaw ua haujlwm hauv tshav dav hlau.

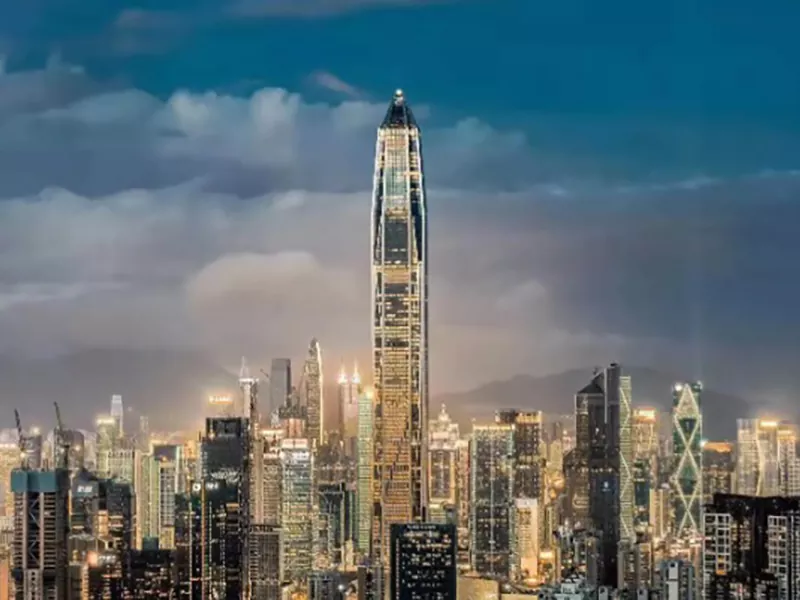

2.Shenzhen Ping Ib Lub Chaw Nyiaj Txiag Thoob Ntiaj Teb

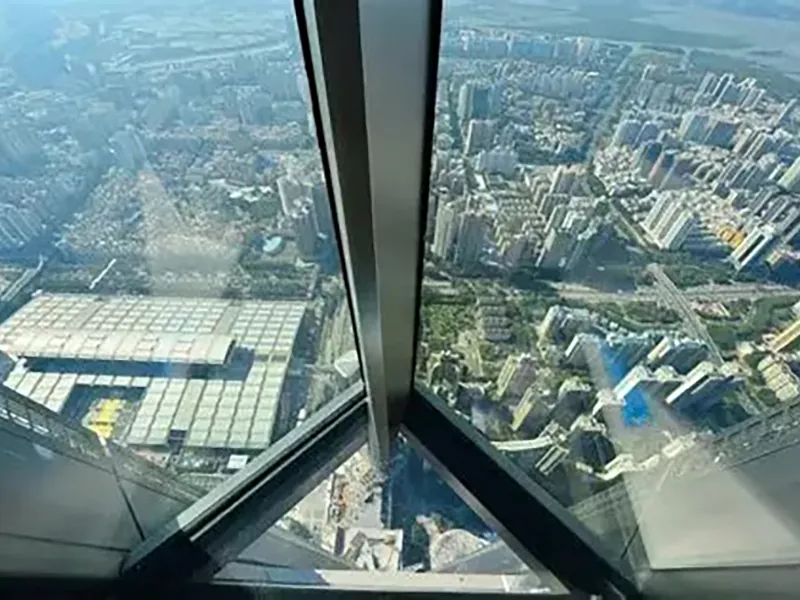

Cov qauv tseem ceeb tau txais "khoom loj - tub ntxhais tub ntxhais - txuas caj npab" lateral force resistance system, nruab nrog 8 loj steel-reinforced qhob txhua kab nrog lub peev xwm thauj khoom ntau dua 70,000 tons. Beidou high-precision positioning thev naus laus zis yog siv los ua kom tiav qhov kev tsim kho yuam kev ntawm tsuas yog 2 millimeters ntawm qhov siab ntawm 600 meters, thiab ob lub 500-tuj tuned loj dampers yog teem rau 114th pem teb. Tag nrho cheeb tsam tsim kho yog 459,000 square metres, suav nrog Qib A cov tsev ua haujlwm, chaw ua lag luam podiums thiab 116-zaj dab neeg Yunji soj ntsuam lawj, uas muaj lub ntsej muag lub ntsej muag pom lub ntsej muag. Nws yog ib qho ntawm Multifunctional Steel Structure Buildings.

Ntawv pov thawj thiab kuaj

Peb muab koj cov ntawv pov thawj hauv qab no:

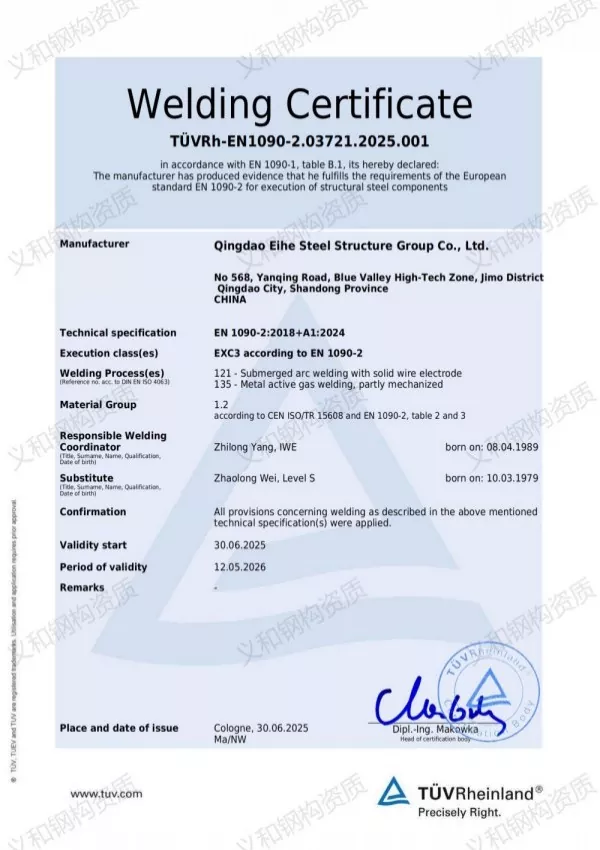

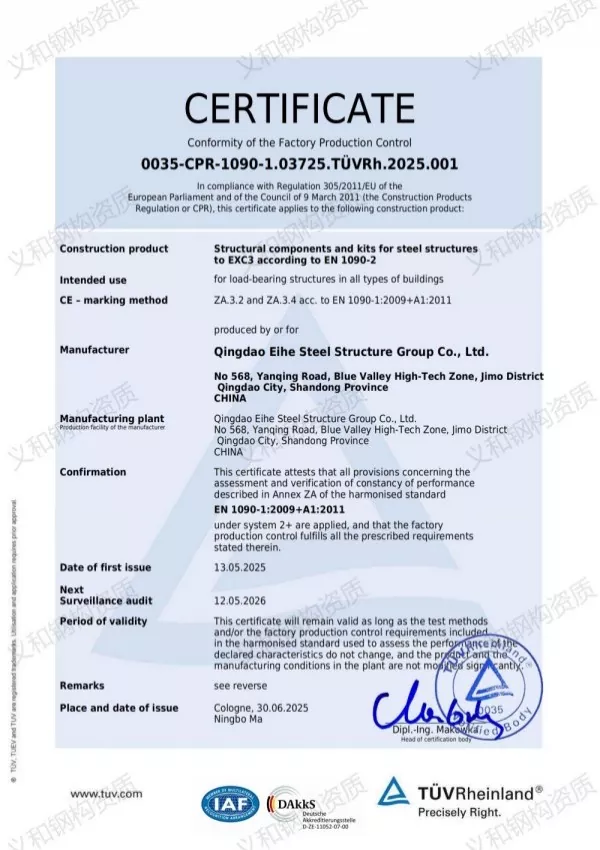

EN 1090,

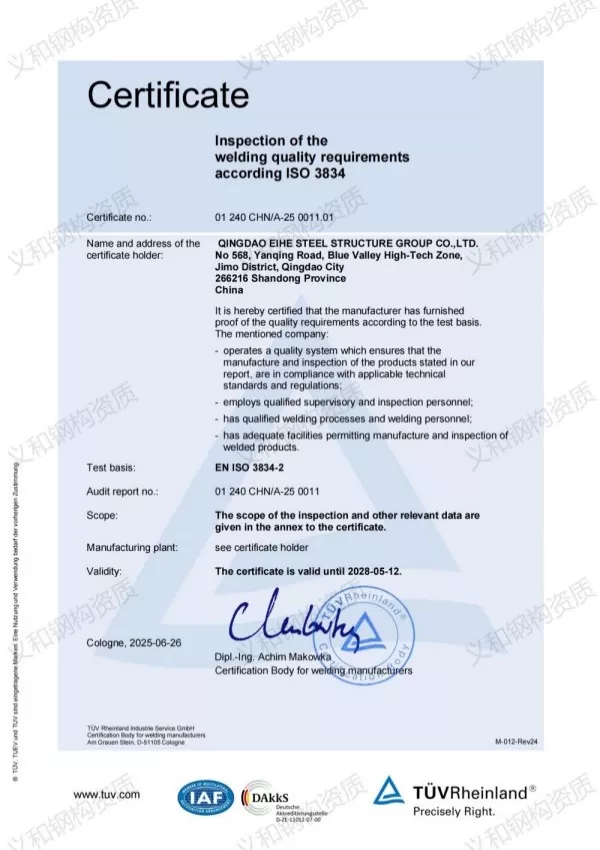

International vuam system ISO3834,

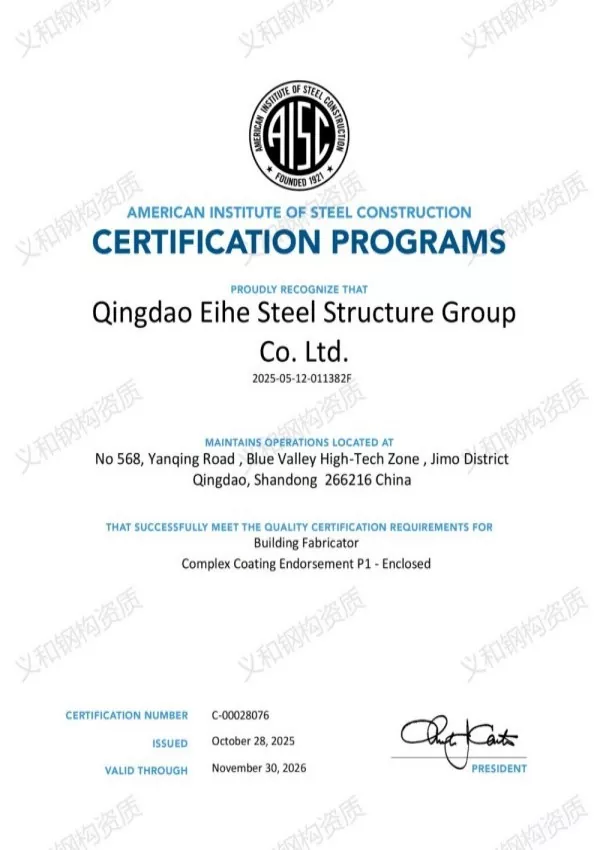

US AISC ntawv pov thawj

Tsis tas li ntawd, peb kuj muab koj daim ntawv pov thawj ntawm keeb kwm ntawm cov ntaub ntawv thiab cov ntaub ntawv soj ntsuam ntawm lub Hoobkas. Ua ntej lub Cheebtsam raug xa mus, peb muaj cov kws soj ntsuam zoo uas ua ultrasonic flaw detection rau lawv.

Yuav ua li cas cov phab ntsa sab hauv ntawm cov tsev steel yuav hloov tau yooj yim?

Raws li lub tsev complex, lub sab hauv layout ntawm Multifunctional Steel Structure Building yuav raug tsim raws li kev ua haujlwm sib txawv. Sib nrug los ntawm cov qauv tseem ceeb ntawm lub tsev, xws li steel beams, steel kem, thiab kev txhawb nqa, lwm cov qauv hauv nruab nrab tuaj yeem hloov kho thiab nthuav dav. Txij li cov phab ntsa infill, muab faib phab ntsa thiab lwm cov qauv uas ua haujlwm raws li cov txheej txheem thib ob tsis koom nrog cov txheej txheem thauj khoom ntawm lub tsev, lawv tuaj yeem yooj yim disassembled thiab rov kho dua.

Txawm li cas los xij, ua ntej cov phab ntsa hloov kho, nws yuav tsum tau lees paub los ntawm thawj chav tsim qauv lossis tus kws tshaj lij tus qauv tsim qauv raws li cov duab kos duab kos duab txawm tias nws yog phab ntsa uas tsis muaj cov kabmob. Tsis txhob txiav txim rau koj tus kheej.
