Modular Steel Tsim

Modular steel kev tsim kho yog hais txog steel qauv vaj tsev sib sau ua ke hauv Lego zoo li los ntawm kev faib cov tsev rau hauv ntau lub tsev modules, uas muaj kev ua tau zoo thiab ib puag ncig zoo. Raws li cov kws tshaj lij steel qauv tsim, EIHE Steel Structure (EHSS) masters cov kev tsim kho kev lag luam ntawm cov tsev sib sau ua ke sai, thiab peb cov vaj tse modular yog cov piv txwv ntawm kev tsim vaj tsev.

Xa lus nug

Product Description

Chav tsev modules muab faib rau hauv modular steel kev tsim kho yog cov kws tshaj lij hu ua peb-dimensional ywj siab qhov chaw modules. Factories ua tiav kev sib xyaw ua ke xws li steel thav duab mus rau sab hauv tiav nyob rau hauv xws li modules, uas tsim cov cim thiab cov ntsiab lus zoo ntawm peb cov khoom.

Modular kev koom ua ke thev naus laus zis ua tiav lub Hoobkas prefabrication tus nqi ntawm ntau dua 90%, txo qis kev tsim kho ntawm qhov chaw ua haujlwm thiab ua rau lub sijhawm siv sijhawm luv.

Tsis tas li ntawd, peb cov khoom tsim kho modular steel khav theeb hauv qab no zoo:

✔ standardized prefabrication nrog controllable zoo;

✔ lub teeb yuag, siab zog thiab zoo heev seismic kev ua tau zoo;

✔ txo qis kev ua haujlwm ntawm qhov chaw thiab kev tsim kho, ua rau kev txhim kho kev tsim kho kev nyab xeeb;

✔ hloov tau yooj yim disassembly thiab sib dhos, yooj yim rau kev thauj mus los hla ciam teb;

✔ steel yog tsawg-carbon thiab cov khoom siv rov ua dua tshiab, xa cov kev tiv thaiv ib puag ncig zoo ntawm cov tsev.

Muaj peb lub hauv paus tseem ceeb rau kev tsim kho steel qauv. Peb cov khoom tsim nyog rau cov tsev qis qis, thiab peb kuj muaj cov thev naus laus zis uas rhuav tshem qhov siab txwv los muab cov kev daws teeb meem hauv tsev siab rau koj.

▷ Ntshiab Modular Structure ——Cov tsev ntau tsev

▷ Modular-Frame Structure ——Qhov chaw loj loj

▷ Modular-Core Wall Structure ——Cov tsev siab

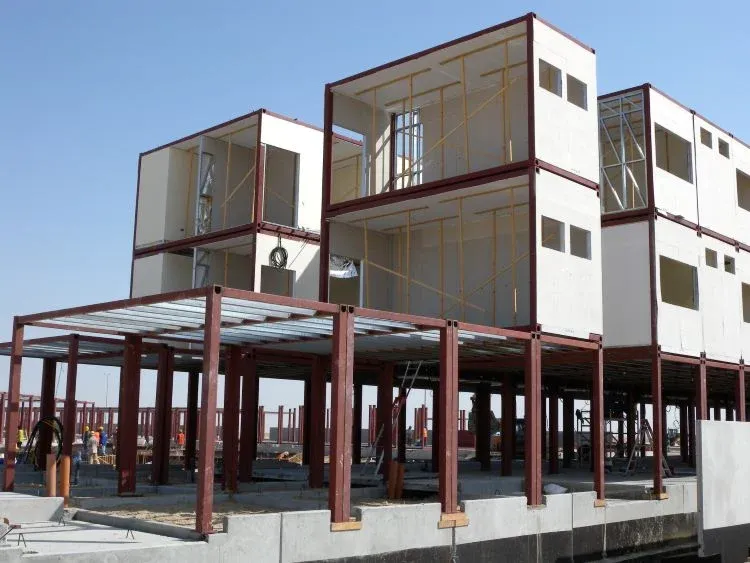

Modular Steel Construction

Tus yuam sij rau kev ua txhaum ntawm qhov kev txwv no yog nyob rau hauv kev daws teeb meem ntawm cov teeb meem tseem ceeb. Raws li tus kws tshaj lij steel qauv xa khoom, EHSS tau koom nrog hauv kev lag luam thiab tau txais kev paub ntau ntxiv thiab R & D technologies. Peb daws cov teeb meem kev sib tw ntawm modular steel siv cov khoom lag luam thiab tsim cov khoom lag luam zoo steel qauv.

Cov thev naus laus zis tseem ceeb thiab cov teeb meem muaj xws li:

▷ module txuas tshuab

▷ lateral force resistance system technology

▷ precision thiab kam rau ua tswj

▷ Kev tsim kho tsheb thauj mus los

Technical Specifications

Piv nrog rau cov txheej txheem kev tsim kho ib txwm muaj, peb cov khoom siv hlau modular muaj ntau yam khoom muaj txiaj ntsig, uas yog qhov tseem ceeb txhawb nqa peb txoj haujlwm kev lag luam.

Dimension	Kev tsim kho ib txwm siv	Peb Cov Khoom
Lub sij hawm tsim kho	100%	40%
Kev Ua Haujlwm Hauv Tsev	100%	30%
Tib Module Hoisting Sijhawm	40 min / daim	5 min / daim
Kev tsim kho khib nyiab	100%	20%
Kev ua tau zoo ntawm cov qauv	100%	150%
Suab rwb thaiv tsev Performance	40dB ib	≥45dB
Manufacturing Precision	cm	mm

Piv nrog rau qhov zoo ntawm lwm txoj kev tsim kho, qhov zoo tshaj plaws inherent tsis ntawm peb cov khoom kuj muaj txiaj ntsig zoo.

Yam khoom	Paub meej
Khoom	Modular Steel Tsim
Qhov System	Steel ncej (Cold-formed nyias-walled steel / Kub dov seem steel)
Module Loj	Dav: 2.4 ~ 3.3m	Ntev: 6.0 ~ 12.0m	Qhov siab: 2.6 ~ 3.0m
Qib Steel	Q235B / Q355B
Stackable Floors	≤6 pem teb (ib qho qauv)
Seismic Resistance	Qib 8
Cua Resistance	Qib 12
Pem Teb Nyob Load	2.0 ~ 5.0 kN/m²
Anti-corrosion kho	Kub-dip galvanizing / Zinc-nplua nuj primer txheej
Hluav taws kub Resistance Qib	Qib II
Thermal rwb thaiv tsev Performance	0.30 ~ 0.45 W / (m²·K)
Suab rwb thaiv tsev Performance	≥45dB
Tsim Kev Pabcuam Lub Neej	20 ~ 30 xyoo (cov khoom siv pa)
Factory Prefabrication Rate	≥90%

Kev yuav peb Modular Steel Kev Tsim Kho, peb cov khoom tsis yog tsuas yog siv nyiaj ntau dua li cov tuam tsev ib txwm muaj, tab sis kuj tseem ua tau zoo heev. Peb tuaj yeem tsim txhua yam khoom tseem ceeb muaj nyob hauv khw. Meanwhile, peb txais customized tsim cov kev pab cuam los tsim cov khoom zoo tagnrho raws li koj xav tau.

Yam khoom	Steel Consumption siv (kg / m²)	Yam tsawg kawg nkaus Order Quantity (m²)	Steel Nqe ib square Meter (USD / m²)
Ntim Hom	40 ~ 60	18-30 Nws	50 ~ 80
Ordinary Steel	30 ~ 50	100-200	50 ~ 120
Customized Hom	50 ~ 80	300-500	55-100
Tag Nrho Bolt Txuas	60 ~ 90	500-1000	100-160

Custom Design & Contract Qualification
