International Academic Lecture Hall Steel Tsim

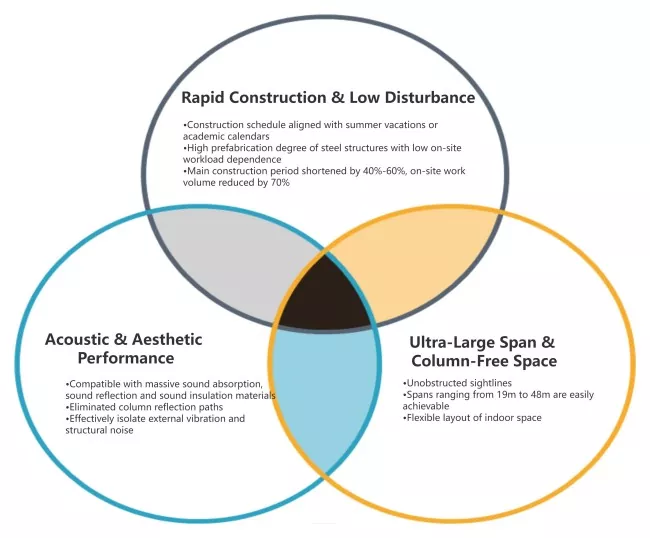

International Academic Lecture Hall Steel Tsim los ntawm peb lub Hoobkas yog tsim los ntawm steel ncej, steel truss los yog spatial steel qauv systems, featuring cov tub ntxhais lub zog ntawm loj-span kem-free qhib qhov chaw, zoo heev acoustic kev ua tau zoo thiab ceev fabrication & kev tsim khoom xa tuaj.

Piv txwv li, ntau cov haujlwm classic ntawm International Academic Lecture Hall Steel Kev tsim kho siv cov qauv hlau los tsim cov chaw kawm zoo nkauj, muab cov kws tshawb fawb rau ib puag ncig kev kawm.

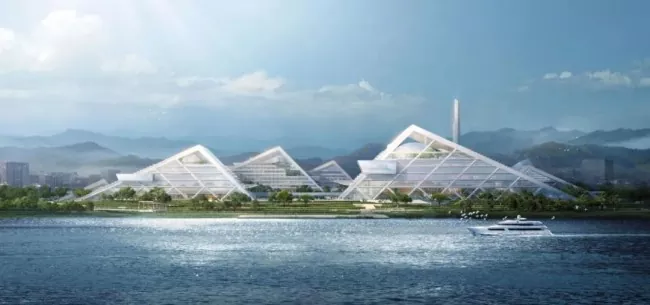

● Chongqing Science Hall, Chongqing, Suav

▷ 72-meter loj-span steel truss

▷ 13,000 ㎡ sab-dawb exhibition hall

▷ Steel qauv ntim ntawm kwv yees li 60,000 tons

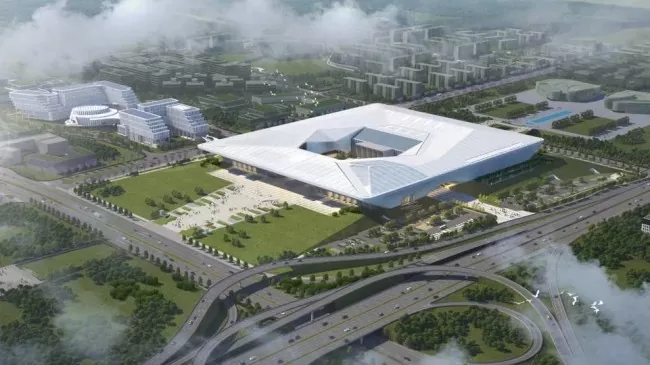

● Xiangjiang Science City Science Exchange Center

▷ Composite system ntawm steel ncej thiab steel truss

▷ 45-meter loj ncua

▷ Qhov siab tshaj plaws welded phaj thickness ntawm 50 hli

● Kev Tshawb Fawb Txog Kev Tshawb Fawb Kev Tshawb Fawb, Tsev Kawm Ntawv ntawm Technology thiab Kev Lag Luam, University of Science thiab Technology ntawm Tuam Tshoj

▷ Ib qho kev nqa ntawm ultra-loj-span qhov chaw truss

▷ 35.6-meter ultra-loj-span steel qhov chaw truss

▷ Qhov chaw truss hnyav ze li ntawm 61 tons

▷ Lifting qhov siab ntawm 21.8 meters

▷ Tsis siv neeg hydraulic synchronous lifting system

FAQ

Q1: Vim li cas cov qauv hlau zoo dua li cov pob zeb ua rau cov tsev hais lus loj?

Cov qauv hlau zoo dua los ua kom tau raws li qhov yuav tsum tau muaj ntawm cov rooj sib tham loj hauv cov ntsiab lus ntawm kev ncua, kev tsim kho ceev thiab qhov chaw yooj yim. Prefabricated Cheebtsam ua kom muaj kev tsim kho sai dua li cam khwb cia hauv qhov chaw ua vaj tse, thiab sab hauv tsim nrog cov qauv hlau tuaj yeem kho tau yooj yim.

Q2: Puas yog International Academic Lecture Hall Steel Kev Tsim Kho kom haum rau cov qauv vaj tsev ntawm cov tsev kawm ntawv uas twb muaj lawm?

Cov qauv hlau muaj qhov ua tau zoo tshaj plaws ntawm kev ua haujlwm, thiab cov ntaub ntawv cladding zoo ib yam nrog cov qauv hauv tsev kawm ntawv tuaj yeem siv rau sab nrauv. Cov qauv yooj yim ntawm cov hlau tso cai rau cov qauv kev tsim vaj tsev niaj hnub, thaum sib tw façade tiav kev sib haum xeeb nrog cov tsev nyob ib puag ncig, tsim cov tsev kawm ntawv tshwj xeeb hauv tsev kawm ntawv sib xyaw ua ke niaj hnub thiab kev zoo nkauj.

Q3: Yuav ua li cas yog qhov loj-span qauv ntawm ib tug grand lecture hall feem ntau pom tau hais tias?

Nws tuaj yeem ua tiav los ntawm cov qauv hlau tsim nyog raws li hauv qab no:

 Spatial steel truss / chaw truss: Tsim cov domed loj loj

 Suspended structure: Hloov lub ru tsev loads rau cov khoom txhawb nqa

 Vierendeel beam lossis cellular beam: ncua ntev nrog cov kav dej zais hauv

Q4: Yuav ua li cas lwm yam zoo li steel qauv muab rau tsev kawm ntawv tej yaam num?

"Lub Hoobkas prefabrication + kev sib dhos ntawm qhov chaw" txoj kev tsim kho yuav txo cov suab nrov, plua plav thiab kev cuam tshuam kev tsheb, ua kom cov kev qhia thiab kev tshawb fawb ntawm cov tsev nyob ib sab thaum tsim kho. Tsis tas li ntawd, cov tsev steel yog cov vaj tse ntsuab uas ua raws li kev tiv thaiv ib puag ncig thoob ntiaj teb.

Q5: Dab tsi yog tus nqi ntawm cov qauv steel rau kev kawm lus qhuab qhia?

Tus nqi sib tw ntawm qhov loj-span steel kev kawm Halls los ntawm kev txuag peev los ntawm kev siv sijhawm luv luv, siv tau ntau dua hauv pem teb piv thiab hloov kho tshiab rau yav tom ntej.
