Sab Hauv Tsev Badminton Hall Steel Tsim

Sab Hauv Tsev Badminton Hall Steel Kev Tsim Kho yog qhov chaw ua kis las tshaj lij tsim nrog cov txheej txheem steel. Cov qauv hlau ua kom tsis tshua muaj nqi loj-ntev thiab kab-dawb qhov chaw, ua rau nws yog qhov kev tsim kho niaj hnub zoo tshaj plaws rau kev ntaus pob ncaws pob. Nrog rau ntau tshaj 20 xyoo ntawm kev loj hlob nyob rau hauv cov steel qauv kev lag luam, EIHE Steel Structure (EHSS) yog ib tug integrated chaw tsim tshuaj paus integrating tsim, kev tshawb fawb thiab kev loj hlob, ntau lawm, muag khoom thiab kev tsim kho.

Xa lus nug

Product Description

Kev ntaus pob tesniv muaj cov kev cai tshwj xeeb rau qhov siab pom tseeb, pom qhov pom tseeb thiab teeb pom kev zoo. Sab Hauv Tsev Badminton Hall Steel Tsim los ntawm peb lub Hoobkas txais cov qauv steel, uas tuaj yeem ua tau raws li qhov xav tau ntawm kev ntaus pob tesniv. Tsis tas li ntawd, peb cov khoom tau txais txiaj ntsig zoo hauv cov nqi, kev tsim kho lub sijhawm thiab kev tiv thaiv ib puag ncig.

NYEEM NTXIV
Hom		EIHE
Qhov Chaw Keeb Kwm		Qingdao, Suav teb
Khoom / Kev Pabcuam		Steel qauv thiab lwm yam kev tsim kho
Nqe lus		FOB / EXW
Cov nqe lus them nqi		T/T
Ntim		Kho nrog steel ncej
Kev thauj mus los		Hiav txwv freight
MOQ		200 m²
Lub sij hawm xa tuaj		20-50 hnub
Core Structural System	Cov ntsiab lus tseem ceeb		Enclosure System
Planar Arch Truss System	Main Truss / Roof Truss		Hlau Rooj Vaj Huam Sib Luag
Suspend-Dome System	Hlau Kem		Thermal rwb thaiv tsev paj rwb
Portal Rigid Ncej / Hlau Ncej	Secondary Truss		Sab hauv Hlau Vaj Huam Sib Luag
Modular Steel Truss System	Lub Tsev Purlin		Sound-absorbing phab ntsa
Hybrid Structural System	Bracing nruab nrab ntawm kab		Hnub Teeb Teeb
	Phab ntsa Purlin		Natural Ventilator
Core Zoo		Siv tau Scenarios
Professional-level Visual Conditions		Cov chaw sib tw tshaj lij
Qhov Zoo Tshaj Plaws Qhov siab		Cov chaw sib tw tshaj lij
Dimmable Professional Teeb pom kev zoo		Kev lag luam Badminton Halls
Kev tsim kho ceev heev		Tsev kawm ntawv / Community Venues
Loj-span Capacity		Corporate Fitness Centers
Sound Absorption thiab Noise Reduction		Multi-functional Sports Halls
Architectural Expressiveness
Nqi-zoo

Technical Specifications

Sab Hauv Tsev Badminton Hall Steel Kev Tsim Kho, raws li qhov chaw tshwj xeeb tshwj xeeb tsim tshwj xeeb rau kev ntaus pob tesniv, muab cov kev cai tshwj xeeb rau kev pom thiab qhov chaw. Peb cov khoom sib xyaw ua haujlwm tsim qauv nrog cov qauv zoo steel qauv tsim thiab ua kom zoo tshaj plaws.

Cov ntaub ntawv yooj yim
Main Khoom Qib	Q235B/Q355B
Tshaj	21m-60m +
Tshooj Hom	Welded H-beam / Kub dov H-beam / Steel Pipe Truss
Hluav taws kub tsis kam	Qib II
Anti-corrosion	Kub-dip Galvanized / Composite Txheej Txheej Txheem
Tsim Kev Pabcuam Lub Neej	Tshaj 50 Xyoos
Enclosure System
Sab nrauv phab ntsa tiav	Corrugated Aluzinc Xim Steel Sheet
Rwb thaiv tsev txheej	iav ntaub plaub
Sab hauv phab ntsa tiav	Tsaus / Matte Xim Hlau Sheet lossis Suab-absorbing Vaj Huam Sib Luag
Pem teb System	Professional Sports Flooring
Qhov chaw thiab qhov siab ntshiab
Ib lub tsev hais plaub qhov ntev	Luas = 13.4 m x 6.1 m
Sab nraum kab	≥1.5m
Tsis muaj cheeb tsam sab nraum kab kawg	≥2m
Clear qhov siab	≥8m
Sib nrug ntawm lub tsev hais plaub	≥2m
Tus qauv tsim Loads
Roof Tuag Load	0.30 kN/m²
Roof Live Load	0.50 kN/m²
Cua Load	0.50 kN/m²
Seismic Intensity	Qib 8
Ru tsev qhov hnyav	Kwv yees li 0.23 kN / m²

Kev paub txog qhov project

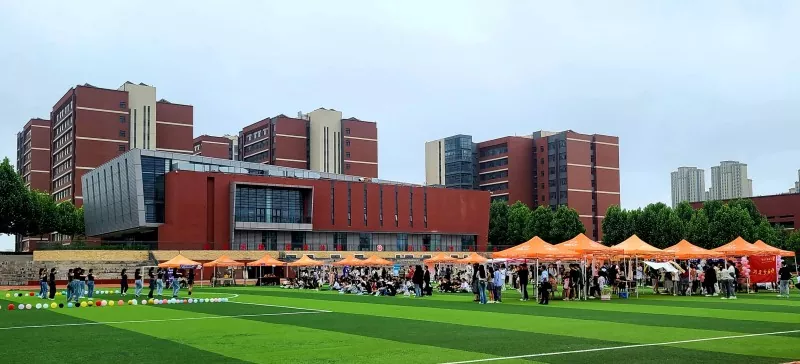

Qingdao University of Technology Gymnasium yog lub tsev kawm ntawv tseem ceebgymnasiumqhov project peb tau xa thiab ua qauv qauv ntawm peb cov khoom siv sab hauv tsev Badminton Hall Steel Siv. Nrog rau tag nrho thaj tsam ntawm 160,000 square meters, nws suav nrog 6 lub tsev hais plaub ntaus pob tesniv. Peb muab kev txhawb nqa lub neej hauv tsev kawm ntawv thiab muab cov kws qhia ntawv thiab cov neeg ua haujlwm nrog cov chaw rau kev noj qab nyob zoo.

Indoor Badminton Hall Steel Construction

Tiv tauj peb

Daim ntawv pov thawj

EHSSyog ib lub tuam txhab kev koom ua ke uas nws cov lag luam txawv teb chaws feem ntau suav nrog kev lag luam thiab kev tsim kho engineering. Peb lub lag luam ua haujlwm rau ob qho tib si hauv tsev thiab thoob ntiaj teb kev lag luam thiab xav tau ua raws li ntau haiv neeg thoob ntiaj teb ib puag ncig thiab cov qauv, ua kom muaj kev ua raws cai tseem ceeb heev. EHSS tau txais cov ntawv pov thawj thoob ntiaj teb xws li ISO, CE thiab AISC, ua rau peb muab peb cov khoom siv sab hauv tsev Badminton Hall Steel Siv rau cov neeg siv khoom thoob ntiaj teb.

● Kev tsim kho, kev cog lus dav dav thiab tsim qauv tsim nyog

Construction, General Contracting and Design Qualifications

● Cov ntawv pov thawj txawv teb chaws

Overseas Certificates

Hauv kev xaus, peb cov khoom siv sab hauv tsev Badminton Hall Steel siv cov khoom ua tau raws li kev tsim nyog thiab zoo heev. Ua nrog cov qauv steel, peb cov khoom tuaj yeem xa cov neeg siv khoom sib txawv.
