EU Standard Steel Ncej Exhibition Hall

EU Standard Steel Ncej Exhibition Hall yog lub tsev loj steel qauv tsim tsim ua raws li European EN cov qauv. Nws cov qauv kev nyab xeeb, kev tsim khoom precision thiab hluav taws kub tiv taus txhua yam ua tau raws li cov kev cai nkag mus rau European lag luam. EHSS muaj 21 xyoo ntawm kev ua haujlwm hauv steel qauv fabrication thiab installation. Peb tuav cov kev tsim nyog tiav thiab tuaj yeem muab cov kev pabcuam txhawb nqa rau koj.

Xa lus nug

Product Description

EU Standard Steel Ncej Exhibition Hall ua los ntawm peb lub Hoobkas hais txog steel qauv exhibition halls uas nws tsim, fabrication, kev tsim kho thiab kev tswj kom zoo ua raws li EU tus qauv system. EN 1090 yog tus qauv rau kev ua cov qauv steel, uas tau muab faib ua plaub chav ua haujlwm. Cov tuam tsev muaj kev pheej hmoo siab tuaj yeem ncav cuag EXC4, thiab pebntawv pov thawjQib yog EXC4.

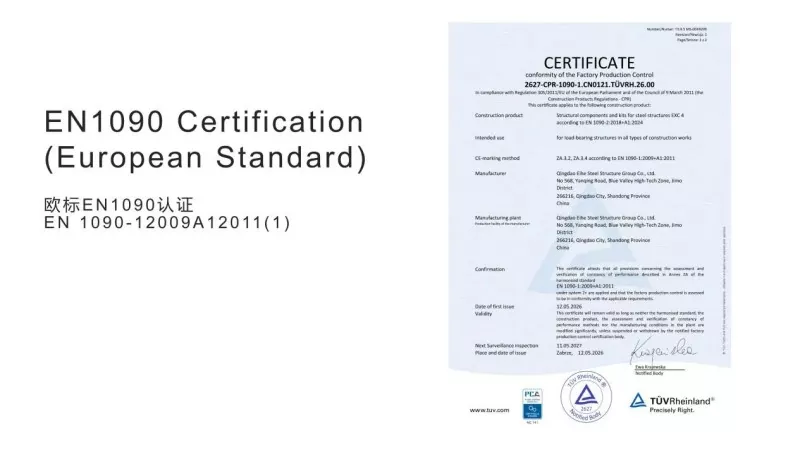

Cov Ntawv Pov Thawj Khoom Muag

Product Production Certificates

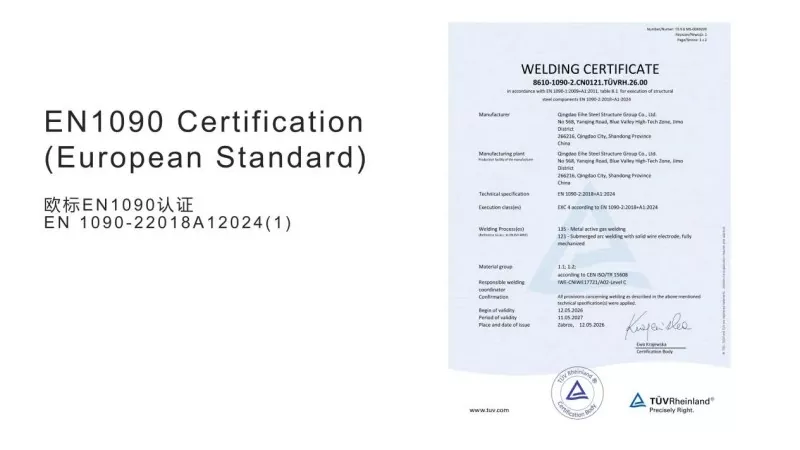

Vuam Certifications

Welding Certifications

Tsis tas li ntawd, peb EU Standard Steel Ncej Exhibition Hall ua raws li EN 1090-1 thiab EN 1090-2 cov qauv, tso cai rau peb xa tawm steel qauv fabrication thiab installation cov khoom thiab cov kev pab cuam rau European cheeb tsam.

Core Standards ntawm European Standard System

Standard Qeb	Standard Number	Kev piav qhia	Siv tau theem
Cov qauv tsim	TS EN 1990	Lub hauv paus ntawm kev tsim qauv	Tsim
	TS EN 1991	Kev ua ntawm cov qauv	Tsim
	TS EN 1993-1-1	Tsim cov qauv steel - Cov kev cai dav dav thiab cov cai rau cov tsev	Tsim
	TS EN 1993-1-2	Tsim cov qauv steel - Cov qauv hluav taws xob tsim	Tsim
	TS EN 1998	Eurocode 8: Tsim cov qauv rau av qeeg tiv thaiv	Tsim
Cov Qauv Ua Haujlwm	TS EN 1090-2	Kev ua tiav ntawm cov qauv steel - Cov kev cai	Fabrication & Installation
Khoom siv Standards	TS EN 10025	Kub dov cov khoom ntawm cov qauv hlau	Kev yuav khoom

Technical Specifications

Peb cov khoom yog tsim nyob rau hauv raws li European structural tsim qauv, ua tiav cov qauv thiab cov qauv ntaub ntawv kom tau raws li qhov yuav tsum tau ntawm CE certification. Nws lub ntsiab parameter yog raws li nram no:

Technical Parameter Daim Ntawv

Qeb Parameter	Specification Index
Khoom npe	EU Standard Steel Ncej Exhibition Hall
Hom qauv	Ib qho / Ntau txoj kab nqes, Ib qho / Ntau ntu, Ib qho / ntau zaj dab neeg
Tsim Code	EN 1990 / EN 1991 / EN 1993-1-1
Execution Standard	EN 1090-2 EXC4
Khoom Txheem	EN 10025 (S235 / S275 / S355 / S450)
Qib Steel	S355 / S235
Main Ncej Hom	Welded & Kub-kuav los tiag H-nqaj, Lub thawv kem, Square Tube kem, Round yeeb nkab, yeeb nkab Truss, nkhaus Truss
Bracing System	X-hom / V-hom / Lwm yam Customized hom
Hom Foundation	Embedded Steel Anchor Bolts
Txoj kev sib txuas	High-strength Bolt Connection / Vuam / Bolt-weld Composite Connection
Tshaj siab tshaj plaws ntawm Exhibition Hall	88m ua
Ru Tsev System	Ib txheej Corrugated Steel Sheet / Sandwich Vaj Huam Sib Luag (EPS / Pob Zeb Wool / PU) / Custom Roof System
Phab ntsa Enclosure	EPS Sandwich Vaj Huam Sib Luag / Pob Zeb Wool Sandwich Vaj Huam Sib Luag / PU Sandwich Vaj Huam Sib Luag / Corrugated Steel Sheet / Custom Curtain Wall System
Qhov Rooj & Qhov rai System	Qhov rooj zawv zawg / Rolling Shutter Qhov Rooj / Hangar Qhov Rooj / Qhov Rooj Qhov Rooj / Hlau Qhov Rooj; Aluminium Alloy Qhov rai / PVC Qhov rai / Hurricane-resistant Window
Kev kho saum npoo	Kub-dip Galvanizing / Multi-txheej txheej txheej txheej
Xim	Dawb / Grey / Custom Xim
Accessory System	Hnub ci Skylight, Ventilator, Fasteners, Sealing Sawb, thiab lwm yam.
Tsim Kev Pabcuam Lub Neej	50 Xyoo
Daim ntawv pov thawj CE	EN 1090 Ntawv pov thawj
Daim ntawv thov Scenario	Exhibition Hall / Conference Center / Multi-functional Showroom / Event Venue / Trading Center
Customization txheej txheem	1. Muab cov ntaub ntawv qhia txog qhov project (qhov chaw, qhov ntev, kev nyab xeeb, kev ua haujlwm) 2. Tshaj tawm EU-tus qauv tsim qauv thiab cov lus hais ua ntej 3. Kev tsim kom ntxaws (EN 1993 daim ntawv qhia kev suav, EN 1090 fabrication documentation) 4. Hoobkas ntau lawm (S355 steel ua, pre-assembly, Sa2.5 blasting thiab painting) 5. On-site erection (hauv av sib dhos & vuam + siab-siab bolting) 6. Kev xa cov ntaub ntawv pov thawj CE thiab kev lees paub zaum kawg

Los ntawm kev xaiv peb EU Standard Steel Ncej Exhibition Hall, koj yuav tau txais ntau yam zoo raws li hauv qab no:

✔ Ua raws li EU txoj cai nkag mus, tsim nyog rau kev ncig hauv Tebchaws Europe thiab lwm lub khw thoob ntiaj teb uas lees paub Eurocodes.

✔ Muab qhov chaw hloov pauv tsis muaj kev cuam tshuam rau kev nthuav tawm layout thiab tso saib ntawm cov khoom pov thawj loj.

✔ Ua tau zoo sib xws cov khoom loj kom tswj tau lub sijhawm tsim kho, zoo tagnrho rau cov phiaj xwm loj thoob ntiaj teb.

✔ Tshem tawm kev tiv thaiv kev tiv thaiv tsis tu ncua, txhim kho qhov sib npaug ntawm cov qauv kev ua haujlwm thiab kev nyab xeeb kev ua haujlwm.

✔ Ob chav xeb tshem tawm kev ua haujlwm, txo qhov kev pheej hmoo ntawm kev raug mob ntawm kev ua haujlwm thiab tsim kom muaj chaw huv thiab nyab xeeb.
