Economical Rapid Construction Steel Exhibition Hall

Economical Rapid Construction Steel Exhibition Hall yog lub tsev prefabricated steel qauv tseem ceeb los ntawm kev ua haujlwm zoo tshaj plaws thiab lub sijhawm xa khoom sai heev. Raws li cov chaw tsim khoom ntawm steel exhibition halls, EHSS siv sophisticated manufacturing technology kom sai tsim koj lub tsev zoo tagnrho, thaum txo qis steel noj thiab tag nrho cov nqi project.

Xa lus nug

Product Description

Economical Rapid Construction Steel Exhibition Hall tau txais cov qauv tsim qauv zoo heev, kev tsim ua ntej loj hauv lub Hoobkas thiab kev sib dhos sai ntawm qhov chaw, xa cov kev daws teeb meem zoo nrog kev tsim kho sai thiab zoo rov qab los ntawm kev nqis peev rau cov neeg siv khoom ua raws li kev ua haujlwm zoo.

Ntau Qhov Zoo

✔ Hom kev sib txuas ntawm lub Hoobkas tsim ua ntej ntau ntxiv nrog rau kev tsim kho ib txhij ntawm qhov chaw tuaj yeem ua kom luv tag nrho cov phiaj xwm ntev mus rau ib feem peb mus rau ib nrab ntawm cov kev tsim kho ib txwm muaj.

✔ Cov nqi ntawm cov khoom raug txo los ntawm kev siv technology tshiab.

✔ Lub sijhawm tsim kho luv luv ncaj qha txiav cov nuj nqis nyiaj txiag.

✔ Ib lub tswv yim sib tw ua kom muaj peev xwm txo tau tus nqi hloov pauv.

✔ Standardized modular tsim endows lub tsev nrog siab yooj.

✔ Qhov zoo ntawm ib puag ncig ntawm cov qauv steel xa cov txiaj ntsig zoo dua rau kev lag luam thiab kev tsim kho sai.

Core Component Composition

Qeb yam khoom	Common Specifications
Main Steel Ncej (Kem & Beams)	Welded H-beam / Kub dov H-beam
Spatial Truss (rau Ntev Span)	Circular tube intersecting welded qauv
Purlin	C-channel steel / Z-channel steel
Bracing System	Round steel khi pas nrig / Lub kaum sab xis steel / steel nro pas nrig
Bolt kev twb kev txuas	Qib 10.9S High-strength Bolts

Hom Qauv Loj

Economical Rapid Construction Steel Exhibition Hall tuaj yeem muab faib ua ntau hom raws li qhov sib txawv ntawm cov txheej txheem steel, ncua sij hawm thiab daim ntawv thov scenarios, uas feem ntau poob rau hauv plaub pawg hauv tag nrho.

Hom	Siv tau Span	Tej kev siv
Portal Ncej Exhibition Hall	18-36 m	Standard exhibition halls, chaw ua lag luam, nruab nrab thiab me me showrooms
Spatial Truss Exhibition Hall	60-120 m	Cov rooj sib tham loj thiab chaw ua yeeb yam, aviation exhibition halls, super-loj exhibition chaw
Lub teeb Steel Ncej Exhibition Hall	12-24 m	Cov pavilions ib ntus, cov chaw ua yeeb yam txav tau yooj yim, cov chaw ua yeeb yam me me
Prefabricated Modular Exhibition Hall	Kev txiav txim los ntawm kev sib xyaw module	Kev xa tawm sai sai rau kev nthuav qhia pavilions, cov chaw ua yeeb yam thaum muaj xwm ceev

Kev tsim khoom thiab kev tsim kho

Kev tsim thiab kev tsim kho ntawm Economical Rapid Construction Steel Exhibition Hall tau txais kev ua haujlwm sib luag ntawm lub Hoobkas tsim thiab kev teeb tsa ntawm qhov chaw, uas feem ntau muab faib ua peb theem kom ua tiav qhov siab tshaj plaws ntawm kev tsim kho lub sijhawm.

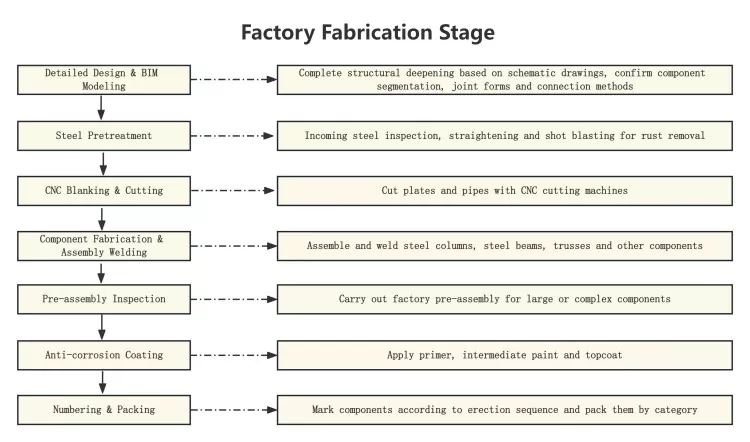

● Hoobkas Fabrication theem

Nyob rau hauv lub Hoobkas fabrication theem, lub hauv paus tsom xam yog nyob rau hauv loj prefabrication thiab parallel ntau lawm. Kev ua thiab kev tsim khoom ntawm cov khoom tseem ceeb tuaj yeem ua tiav hauv 5 mus rau 35 hnub.

Factory Fabrication Stage

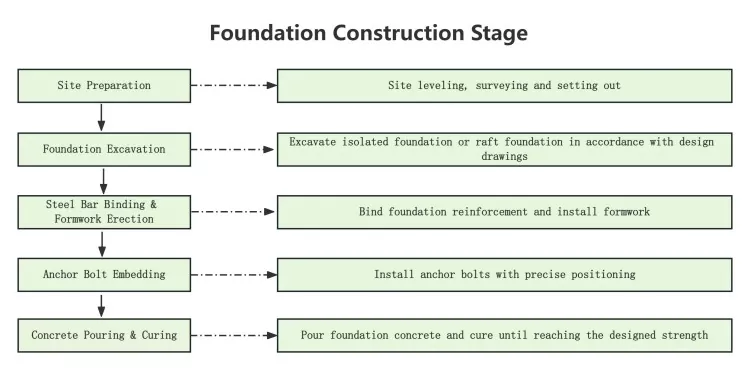

● Lub Hauv Paus Kev Tsim Kho Cov Txheej Txheem

Lub hauv paus kev tsim kho ntawm Economical Rapid Construction Steel Exhibition Hall tuaj yeem ua tiav ib txhij nrog lub Hoobkas prefabrication, uas yog ib qho kev ntsuas tseem ceeb kom luv lub sij hawm tsim kho.

Foundation Construction Stage

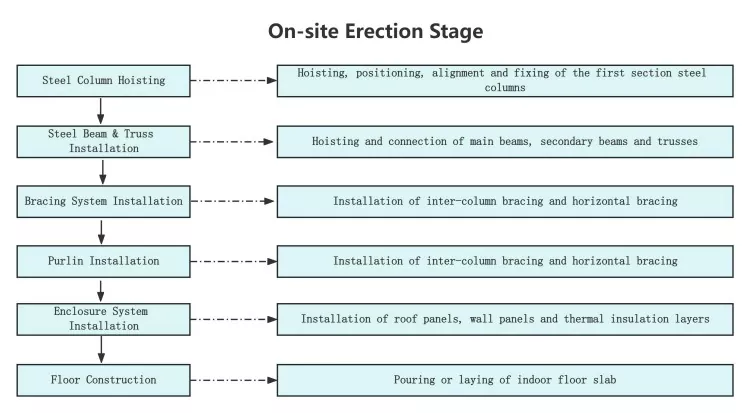

● Cov theem Erection ntawm qhov chaw

Lub hauv paus erection theem yog lub hauv paus tseem ceeb rau kev tsim lub Economical Rapid Construction Steel Exhibition Hall. Thaum lub sijhawm no, peb paub txog kev lag luam thiab kev tsim kho sai los ntawm kev siv cov kev ntsuas tseem ceeb los ntawm kev sib txuas bolted, txoj kev tsim kho hauv av sib dhos ntxiv rau segmented hoisting, modular parallel kev tsim kho thiab kev ua haujlwm sib tshooj.

On-site Erection Stage
