Durable Steel Tube Truss Chaw Ua Si

Durable Steel Tube Truss Stadium feem ntau siv cov kav hlau zoo li nws cov khoom siv tseem ceeb, muaj kev ruaj ntseg zoo heev thiab kev ua haujlwm ntev. EIHE Steel Structure (EHSS) yog ib lub tuam txhab tsim steel qauv zoo hauv kev lag luam nrog ntau tshaj 20 xyoo ntawm kev ua haujlwm, kev nplua nuj thiab kev paub tab technology. Qingdao qhov chaw thaj chaw kuj tseem muaj kev thauj mus los yooj yim rau kev txhim kho peb cov lag luam txawv teb chaws.

Xa lus nug

Product Description

Lub Durable Steel Tube Truss Stadium txais yuav cov kav hlau zoo thiab tsim cov qauv spatial truss los ntawm kev sib tshuam vuam lossis kev sib txuas, ua rau nws lub tsev ua kis las loj. Peb lub Hoobkas siv steel tube trusses, uas muaj qhov sib txawv ntawm kev ntxhov siab thiab xa cov qauv zoo, cua tsis kam thiab kev ua haujlwm seismic.

Core structural yam ntxwv:

▷ Cov tswv cuab system;

▷ spatial stress distribution;

▷ muaj peev xwm loj

Cov ntaub ntawv yooj yim
Khoom	Durable Steel Tube Truss Chaw Ua Si
Hom	EHSS
Qhov Chaw Keeb Kwm	Qingdao, Suav teb
Qauv	Hlau Tube Truss
Qib Steel	Q235B / Q355B
Cov qauv	GB / CE / ISO / AISC
Kev them nyiaj	T/T
Kev thauj mus los	Hiav txwv Freight

Nrog nws qhov tshwj xeeb zoo ntawm qhov loj thiab dav layout, Durable Steel Tube Truss Stadium yog dav siv nyob rau hauv kev tsim kho ntawm ntau yam kev chaw ntau pob, kev gymnasiums thiab loj-scale kev ua si venues, ua rau nws ib tug txheej txheem configuration rau niaj hnub loj chaw ntau pob.

Yam khoom	Parameter
Tshaj	60-160 m
Vuam Seam	Qib I
Cua Load	0.35-0.50 kN/m²
Daus Load	0.35-0.55 kN/m²
Ambient Kub	± 25 ° C rau ± 45 ° C
Seismic Intensity	Qib 7-8
Hluav taws kub tsis kam	Chav Kawm I / Chav Kawm II
Kev Pabcuam Lub Neej	50 xyoo

Txhawm rau txuas ntxiv kev pab cuam lub neej ntawm Durable Steel Tube Truss Stadium, daim ntawv thov ntawm ntau txheej txheej tiv thaiv corrosion yog ib kauj ruam tseem ceeb.

Qib tiv thaiv	Khoom siv / txheej txheem	Thickness
Kev kho saum npoo	Txhaj tshuaj Blasting / Sand Blasting Derusting	Sa 2.5
Primer	Epoxy Zinc-nplua nuj Primer	80m ua
Lub tsho nruab nrab	Epoxy Mica Intermediate Xim	100 μm
Lub tsho sab saum toj	Polyurethane / Fluorocarbon Top Coat	80m ua
Tag nrho cov zaj duab xis qhuav Thickness	—	≥260μm

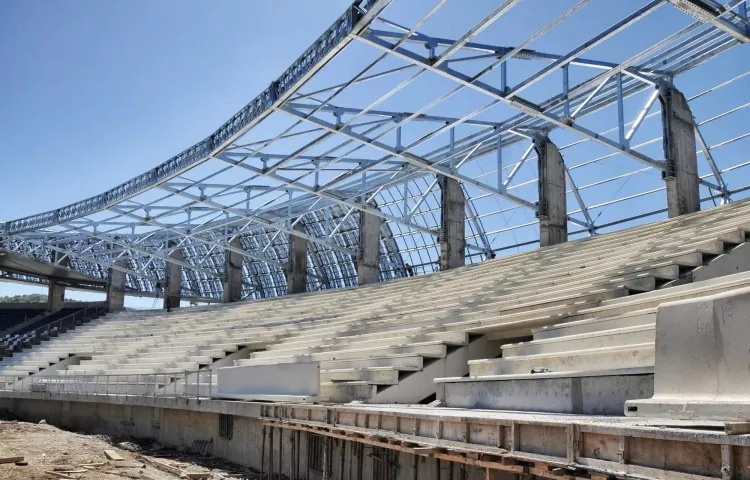

Durable Steel Tube Truss Stadium

Txheej Txheem Flow

Kev tsim kho ntawm Durable Steel Tube Truss Stadium feem ntau ua raws li cov txheej txheem ntawm kev tsim, tsim khoom, kev thauj mus los, vuam thiab xa khoom tom qab tau txais kev nug. Tom qab kev xa khoom, peb kuj muab kev txhawb nqa tom qab muag, uas feem ntau suav nrog ob pawg:

▷Kho thiab Warranty:

Peb muab "24 + 48" kev pab cuam tom qab muag - koj cov lus nug yuav raug teb rau hauv 24 teev thiab daws tsis pub dhau 48 teev.

▷Kev tu:

Tom qab ua tiav qhov kev lees paub, peb yuav muab cov duab kos duab lossis video qhia kev saib xyuas rau koj, nrog rau peb cov kev pabcuam kev saib xyuas lub neej.

Thoob plaws hauv tag nrho cov txheej txheem, lub Hoobkas theem thiab theem ntawm qhov chaw tsim yog cov haujlwm tseem ceeb hauv kev tsim kho koj qhov Chaw Ua Haujlwm Zoo Hlau Tube Truss.

▷Kev tsim khoom hauv lub hoobkas

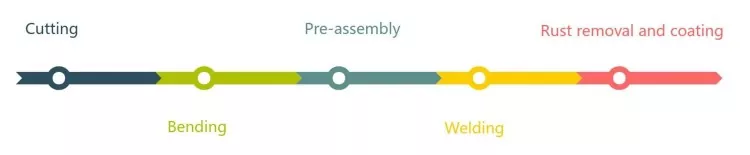

Process Flow

▷Installation ntawm qhov chaw

Txoj kev teeb tsa tseem ceeb los tsim koj cov khoom yog:

◇ Kev sib dhos hauv av + ib qho hoisting

◇ seem hoisting + aerial docking

◇ tsuj swb, ib qho nqa nqa
